SAE 100 R4 Hydraulic Hose

SAE 100 R4 hydraulic hose is a textile-reinforced, heavy-duty rubber hose specifically engineered for oil suction and return applications in hydraulic systems. Unlike high-pressure wire braided hoses used for pressure lines, the sae 100 r4 hose is designed to handle vacuum (suction) and low-pressure return, utilizing a robust helix wire to prevent collapse. As a leading china manufacturer and supplier, we provide sae 100 r4 standard compliant hoses that serve as the critical link in hydraulic reservoirs, ensuring system longevity and reliability. Whether you are looking to buy individual lengths or bulk reels for OEM ODM projects, understanding the definition and specification of this rubber hose is essential for optimal system performance.

Product Overview

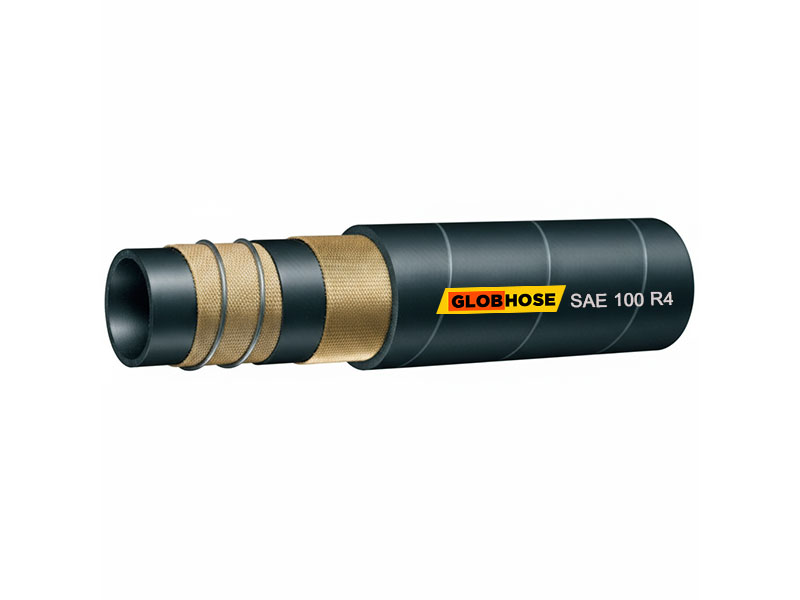

The SAE 100 R4 hydraulic hose is a specialized rubber hose designed as the industry standard for low-pressure hydraulic return and suction lines. Its definition is rooted in the sae 100 r4 standard, which specifies a hose with a smooth bore and a construction capable of withstanding full vacuum. This hose is composed of three distinct layers: an oil-resistant synthetic rubber tube, a textile reinforcement layer with an integral helix steel wire, and a weather-resistant synthetic rubber cover.

A key performance highlight is its ability to maintain integrity under full vacuum conditions, preventing the hose from collapsing during pump suction. The working temperature range of -40°C to +100°C ensures reliable service in diverse climates. The core advantages of the SAE100 R4 include its robust collapse resistance provided by the helix wire, excellent flexibility for tight installations, superior abrasion and weather resistance, and compatibility with standard hydraulic oils. This hose is the go-to solution for connecting reservoirs to pumps in heavy machinery, providing dependable support for continuous operation. With rigorous quality control, every hose meets the durability demands of modern hydraulic systems.

Product Advantages

• Superior Collapse Resistance: The integral helix steel wire within the textile reinforcement provides the structural rigidity required for oil suction service, preventing the hose from collapsing under vacuum pressure and ensuring consistent flow.

• Exceptional Flexibility for Easy Routing: Despite its robust internal wire, the SAE100 R4 maintains excellent flexibility, allowing for easier assembly and installation in confined spaces compared to rigid piping or heavy wire spiral hose.

• Comprehensive Environmental Protection: The high-quality synthetic rubber cover is engineered to resist abrasion, corrosion, weather, ozone, and aging. This extends the rubber hose’s lifespan in harsh outdoor or industrial environments.

• Reliable Long-Term Performance: Designed for continuous use in low-pressure return and suction applications, this hose provides a durable and reliable solution that minimizes downtime and reduces replacement cost.

• Applicable Users: Ideal for distributors, wholesalers, and engineering companies requiring a dependable high pressure hose (for the return side) for heavy equipment. It is widely used in construction, mining, and agricultural machinery.

Detailed Technical Specifications Table

This table provides the detailed specification for the SAE 100 R4 hydraulic hose, based on the sae 100r4 hose specifications and the sae 100 r4 standard pdf. It includes all necessary data for proper selection, including dash size, dimensions, and pressure ratings.

Note: For the complete sae 100 standard pdf, including all performance criteria, please contact our sales team.

Structure and Materials

The performance and reliability of the sae 100 r4 hose are a direct result of its precisely engineered construction. Each layer plays a critical role in ensuring the hose meets the demanding sae 100r4 hose specifications.

• Tube (Inner Layer): The tube is made from high-quality, smooth, black, oil-resistant synthetic rubber. This material is specifically formulated to be compatible with standard hydraulic fluids, ensuring minimal flow resistance and preventing fluid degradation.

• Reinforcement (Middle Layer): This layer consists of one or multiple plies of high-strength braided textile combined with a helix steel wire. The textile provides structural integrity, while the helix wire acts as a rigid skeleton, giving the hose its crucial ability to withstand full vacuum without collapsing.

• Cover (Outer Layer): The cover is a high-quality synthetic rubber designed for maximum protection. It is resistant to abrasion, corrosion, weather, ozone, and cutting, safeguarding the internal reinforcement from environmental damage and extending the hose’s service life.

Application Industries

The SAE 100 R4 hydraulic hose is a versatile component found across numerous industries. Its primary function is to safely and efficiently transfer hydraulic fluid in the return and suction lines of various systems.

• Construction Equipment: Used as suction and return lines in excavators, loaders, and backhoes. It connects the hydraulic tank to the pump, ensuring a steady supply of oil.

• Agricultural Machinery: Essential for tractors, combines, and sprayers, where it handles large volumes of oil in open-center hydraulic systems.

• Material Handling: Employed in forklifts and pallet jacks for the return oil path in their lifting circuits.

• Industrial Manufacturing: Used in large presses, injection molding machines, and machine tools as return lines to the reservoir.

• Mining Equipment: Its durable cover makes it suitable for underground mining applications where resistance to abrasion is critical.

Precise Selection & Professional Guide

Choosing the correct sae 100 r4 hose and completing it with the right fittings is crucial for system integrity. We offer complete hose assembly services and components to ensure a leak-free, reliable solution.

• Hose Assembly Solutions: We provide custom-made hose assemblies tailored to your exact specifications. Our process utilizes precision cutting, skiving, and crimped fittings to create a permanent, leak-proof bond. This pre-made assembly eliminates the guesswork and potential errors of field assembly, ensuring a higher quality and longer-lasting product.

• Fittings and Accessories: A wide range of connection types are available to complete your system.

  • Crimped Fittings: Permanent fittings installed with our calibrated crimping machines for a secure, factory-quality finish.

  • Reusable Fittings: For field repairs and situations where a crimper is not available, we offer a selection of reusable fittings.

  • Adapters and Flanges: We stock a comprehensive range of adapters and flanges to connect the hose to various system ports and components.

  • Protective Sleeves and Guards: To extend the life of your hose in abrasive environments, we offer various protective sleeves and guards.

• SAE 100 R4 vs. Other Hoses: Unlike wire braided hose or wire spiral hose designed for high-pressure applications, the sae 100 r4 is a low-pressure, suction-specific hose. It should not be used as a substitute for a high pressure hose in pressure lines. It is the correct choice specifically for the suction side of the pump and return lines to the tank.

Technical Standards and Certifications

Our SAE 100 R4 hydraulic hose is manufactured in strict compliance with international standards, guaranteeing performance and safety.

• SAE J517 & SAE 100R4: The hose fully meets the dimensional and performance requirements of the sae 100 r4 standard, ensuring global interchangeability.

• ISO 1436: This hose also conforms to the relevant parts of ISO 1436, the international standard for rubber hoses and hose assemblies for hydraulic fluids.

• Testing & Quality: As a reliable manufacturer and factory, we perform routine impulse, burst, and vacuum tests to validate the specification of every production batch, ensuring you receive a product that performs as promised.

Brand and Quality Assurance

As a premier china factory and producer, we are committed to delivering excellence in every rubber hose we manufacture. Our quality assurance process begins with the raw materials. We rigorously inspect all incoming synthetic rubber and steel wire against strict chemical and physical property benchmarks. During production, our online process controls monitor critical parameters like wall thickness and reinforcement tension. Every single hose is subjected to a proof pressure test before leaving the factory to ensure immediate integrity. Furthermore, our in-house laboratory is equipped with advanced testing equipment, including a burst test stand and aging ovens, to continuously verify that our hoses meet or exceed the sae 100 r4 hose specifications. This commitment to quality provides our customers with a traceable, reliable, and long-lasting product.

Installation, Operation, and Maintenance Guide

To maximize the service life of your SAE 100 R4 hydraulic hose, follow these best practices:

• Installation: Ensure the hose is not twisted during installation, as this can reduce its ability to withstand pressure and vacuum. Use appropriate hose assembly techniques with correct crimped fittings or reusable fittings. Always respect the minimum bend radius listed in the specifications; tighter bends can kink the hose or damage the helix wire.

• Operation: Operate the hose strictly within its specified working pressure and temperature range. Protect the hose from sharp objects, excessive heat sources, and heavy impact. For outdoor applications, the cover is ozone and weather-resistant, but regular inspection is still recommended.

• Maintenance: Regularly inspect the hose cover for cuts, abrasion, or signs of weathering. Check the hose for kinking, crushing, or soft spots that may indicate internal damage. Ensure fittings are tight and free from corrosion. Replace any hose showing signs of wear or damage immediately.

Frequently Asked Questions (FAQ)

Q: What is the difference between SAE 100 R4 and SAE 100 R16?
A: The primary difference is their application and construction. SAE 100 R4 is a textile-reinforced hose with a helix wire, specifically designed for suction and return lines where collapse resistance is needed. SAE 100 R16 is a compact, high-pressure wire braided hose used in pressure lines. They are not interchangeable.

Q: Can I use this hose for high-pressure applications?
A: No. The SAE 100 R4 is designed for low-pressure return and suction lines. Using it in a high-pressure circuit would be extremely dangerous and lead to immediate failure. For high-pressure lines, you would need a high pressure hose like wire braided hose or wire spiral hose.

Q: What is the “helix wire” and why is it important?
A: The helix wire is a steel wire that is spirally wound within the textile reinforcement layer. Its function is to act as a skeleton, providing the hose with enough rigidity to resist the vacuum created by the hydraulic pump on the suction line, preventing the hose from collapsing.

Q: Where can I find the sae 100 r4 standard pdf for download?
A: While the official SAE standard is a copyrighted document available for purchase from SAE International, we can provide a technical data sheet summarizing all the key specifications and dimensions of our hose, which is manufactured to meet that standard. Please contact us to request a copy.

Q: Can I get custom lengths and pre-attached crimped fittings?
A: Absolutely. As a full-service supplier, we offer custom hose assembly services. You can provide your specifications, and we will cut the hose to length, apply the correct crimped fittings or reusable fittings, and pressure-test the complete assembly before shipping.

Ensure the reliability of your hydraulic systems with our premium SAE 100 R4 hydraulic hose. Whether you are a distributor looking for a reliable wholesale partner, an OEM needing custom assemblies, or an engineer with a specific project, we have the solution. Contact us today for a competitive price or discount on bulk orders. Let us be your trusted source for high-quality rubber hose and expert service.
