EN 857 2SC Hydraulic Hose

Product Overview

The EN 857 2SC hydraulic hose represents a specialized evolution in wire braided hose technology, designed explicitly for modern machinery where installation space is at a premium. Officially defined by the EN 857 2SC standard, this hose is a compact version of the widely used EN 853 2SN. Its primary distinction lies in a significantly smaller outside diameter, making it the ideal high pressure hose for equipment with compact and narrow piping layouts. As a professional hydraulic hose manufacturer in China, we supply this solution to meet the most demanding spatial constraints without compromising on performance.

Constructed from three precision-engineered layers, this rubber hose is built for durability and reliability. The tube is crafted from an oil, abrasion, and corrosion-resistant synthetic rubber, ensuring safe transport of petroleum-based hydraulic fluids across a wide working temperature range of -40°C to +100°C. The reinforcement consists of two layers of high tensile braided steel wires, providing exceptional resistance to high pressure. This robust construction guarantees excellent performance in demanding high-pressure working conditions. The outer cover, made from high-quality synthetic rubber, shields the hose from abrasion, corrosion, weather, ozone, aging, sunlight, and cuts, ensuring a long service life and making it a reliable high pressure hose for various applications.

This high pressure hose is primarily used in construction equipment (like mini-excavators and skid-steer loaders), material handling machinery, and robotics where space is restricted. It directly solves the core industry pain point of routing powerful hydraulic lines through tight bends and narrow channels, a challenge where standard hoses often fail due to their larger size and reduced flexibility. We offer comprehensive service and support, ensuring that every hose assembly we provide meets the highest quality standards. Our commitment is backed by rigorous testing and adherence to international norms, guaranteeing a product you can trust.

Product Advantages

• Space-Saving Design: The compact outside diameter allows for easy installation in confined spaces, tight bend radii, and complex machinery layouts where standard hoses cannot fit. This is the core benefit of the EN 857 2SC standard.

• High Pressure Performance: Despite its slim profile, the two layers of high tensile braided steel wires deliver exceptional working pressure and a minimum burst pressure that is four times the working pressure, ensuring a robust safety margin.

• Superior Durability: The high-quality synthetic rubber tube and cover provide excellent resistance to abrasion, oil, weather, and ozone, significantly extending the hose’s operational life and reducing replacement costs.

• Excellent Flexibility: The optimized wire braiding technique ensures the hose remains highly flexible, simplifying the hose assembly process and reducing stress on fittings and connections.

Applicable Users: This product is ideal for engineers and procurement specialists in the construction, agricultural, and industrial automation sectors, specifically those designing or maintaining compact equipment like small loaders, robotic arms, and mobile hydraulics.

Detailed Technical Specifications Table

The specification of EN 857 2SC steel wire reinforced hydraulic hose (1)

The specification of EN 857 2SC steel wire reinforced hydraulic hose (2)

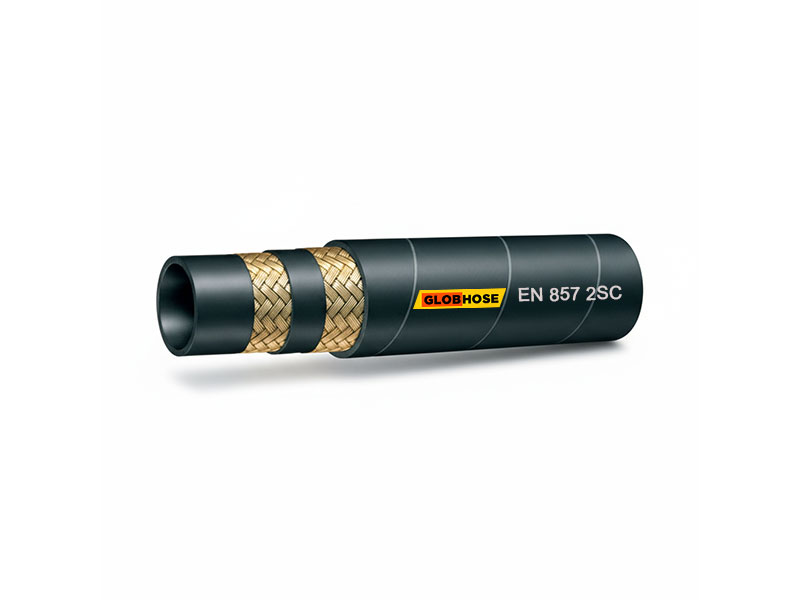

Structure and Materials

• Tube: Oil and abrasion-resistant synthetic rubber. This layer ensures compatibility with petroleum-based hydraulic fluids, maintaining media purity and minimizing flow resistance within the working temperature range.

• Reinforcement: Two layers of high tensile braided steel wires. This provides the fundamental high pressure resistance, differentiating it from single wire braid hoses (like EN 853 1SN) and making it suitable for demanding applications.

• Cover: Abrasion, corrosion, weather, ozone, aging, sunlight, and cut-resistant synthetic rubber. This robust outer layer protects the reinforcement from environmental damage, ensuring a longer service life and reliable operation in harsh conditions.

Application Industries

Key Application Scenarios

• Construction Machinery: Ideal for mini-excavators, compact loaders, skid-steer loaders, and small concrete pumps where space is limited.

• Agricultural Equipment: Used in tractors, harvesters, and sprayers for auxiliary hydraulic functions and tight routing.

• Material Handling: Perfect for fork lifts, pallet trucks, and lift tables requiring durable yet compact hoses.

• Industrial Robotics: Suitable for hydraulic power units and manipulators where hoses must bend tightly and fit within machine frames.

• Mobile Hydraulics: General application in trucks, cranes, and other mobile equipment with confined installation spaces.

Precise Selection Professional Guide

EN 857 2SC vs. EN 853 2SN vs. SAE 100R16
The EN 857 2SC is frequently compared to its counterpart, the EN 853 2SN. While both have two wire braid reinforcements, the key difference is the compact OD of the 2SC. For users searching for an “en 857 2sc equivalent” or “sae 100 r16 en 857 2sc,” it is important to note that SAE 100R16 shares similar compact dimensions and performance requirements. Therefore, EN 857 2SC and SAE 100R16 are generally considered interchangeable, making our hose a versatile solution for both standards. This is a critical consideration for those with multinational equipment.

Hose Assembly & Fittings
To maximize performance, we recommend using our EN 857 2SC hose with compatible crimped fittings. The compact OD allows for the use of smaller, standard fittings, saving even more space. We offer complete hose assembly services, including cutting, skiving (if required), crimping, and pressure testing, ensuring a leak-proof and reliable final product. We also supply reusable fittings, adapters, flanges, and protective sleeves to provide a complete system solution.

Industry Pain Point Solutions

• Problem: Frequent hose failure in compact loader arm pivot points due to tight bending and abrasion.

• Solution: Our EN 857 2SC hydraulic hose, with its smaller minimum bend radius and abrasion-resistant cover, is specifically engineered for this challenge, reducing installation stress and extending service life.

• Problem: Difficulty routing hoses through the boom of a small excavator.

• Solution: The compact OD of our EN 857 2SC hose allows it to pass through narrow passages where a standard 2SN hose would not fit, simplifying Assembly and reducing modification costs.

Technical Standards and Certifications

Our EN 857 2SC hydraulic hose is manufactured in strict accordance with the international EN 857 2SC standard. This ensures that it meets all requirements for dimensions, working pressure, and burst pressure as outlined in official documents like the en 857 2sc standard pdf or en 857 standard pdf. It is technically equivalent to ISO 11237 2SC and SAE 100R16, providing a globally recognized definition of quality and performance. Customers can confidently cross-reference our specifications with en 853 2sn standard pdf files to understand the dimensional differences.

Brand and Quality Assurance

As a leading manufacturer and supplier in China, we bring decades of experience to the production of hydraulic rubber hose. Our factory is equipped with advanced production lines and a dedicated quality control lab. We believe in complete transparency and rigorous quality management:

• Raw Material Inspection: Every batch of synthetic rubber and high tensile steel wire is tested upon arrival to verify it meets our strict specifications.

• In-Process Control: Key parameters like hose diameter and wire braid angle are continuously monitored during production.

• 100% Proof Pressure Test: Every finished hose is subjected to a proof pressure test (as per the specification table) to ensure integrity before it leaves our factory.

• Laboratory Testing: Our lab regularly performs burst tests, impulse tests (exceeding 200,000 cycles), and fluid compatibility tests to validate long-term reliability. We can provide test reports upon request.

• Certifications: Our quality management system is certified to ISO 9001, ensuring consistent quality from order to delivery. As a reliable exporter, we ensure all products comply with international standards.

Installation, Operation, and Maintenance Guide

• Storage: Store hoses in a cool, dark, and dry environment, away from ozone sources (like electric motors) and direct sunlight. Use protective caps to prevent contamination.

• Installation: Avoid twisting the hose during installation. Use the correct crimped fittings and ensure the minimum bend radius is never exceeded, especially near the fittings. Use protective sleeves or guards in areas of high abrasion.

• Operation: Operate within the specified working pressure and temperature range (-40°C to +100°C). Avoid sudden pressure spikes that exceed the working pressure.

• Maintenance: Regularly inspect hoses for signs of wear, cuts, cover blistering, or leaks at the fittings. Replace any damaged hose immediately.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between EN 857 2SC and EN 853 2SN?
A: The primary difference is the outside diameter. EN 857 2SC is designed with a compact OD to fit in tight spaces, whereas EN 853 2SN has a standard OD. They share similar pressure ratings for corresponding sizes.

Q2: Can I get a PDF of the EN 857 2SC standard?
A: While we cannot distribute the official copyrighted standard document, we can provide our own detailed specification sheet based on the en 857 2sc standard. Please contact us to request our pdf datasheet.

Q3: Is EN 857 2SC equivalent to SAE 100R16?
A: Yes, they are technically equivalent. Both standards define a compact two-wire braid hose. Our EN 857 2SC hydraulic hose meets the requirements of both specifications.

Q4: What is the minimum burst pressure for the 1/4″ size?
A: For the EN8572SC-01 (1/4″) hose, the minimum burst pressure is 160 MPa (23200 Psi), which is four times the working pressure.

Q5: Do you offer OEM/ODM services?
A: Yes, as a leading manufacturer and producer, we offer comprehensive OEM and ODM services. We can customize packaging, labeling, and even specific hose characteristics to meet your project needs.

Ready to optimize your hydraulic systems with a compact, high-performance hose? For detailed specification, price, and cost information, or to discuss your bulk or wholesale needs, contact our team of experts today. We offer competitive pricing, reliable supply, and complete support for all your hydraulic projects. Request a quote or ask for a sample to experience the quality firsthand. We are your trusted partner for hydraulic solutions.
