Food Grade Hose

About Food Grade Hose

A food grade hose is a specialized rubber hose designed for transferring consumable liquids and dry food materials under sanitary conditions. The definition of a food grade hose requires non-toxic, odorless, and tasteless materials that meet strict international safety standards. These hoses prevent contamination while maintaining product purity during food, beverage, pharmaceutical, and cosmetic processing.

As a leading china-based manufacturer, HENGHUA produces food grade hose solutions that comply with FDA, EU, and GB standards. Whether you need to buy for a new processing line or replace existing equipment, understanding the technical specifications ensures optimal performance. This guide helps procurement professionals, facility managers, and contractors source reliable supply with confidence.

Food Grade Hose Technical Specifications

Construction and Material Layering

1. Inner Tube Layer:

Material: White NBR (Nitrile Butadiene Rubber), Silicone, or UHMWPE
Characteristics: Non-toxic, smooth bore (prevents bacterial growth), odorless, tasteless
Resistance: Fat, oil, acid, alkali, and cleaning agents

2. Reinforcement Layer:

Wire Braided Hose construction: One or two layers of high-tensile steel wire
Wire Spiral Hose construction: Four or six layers of spiraled steel wire for higher pressure
Textile reinforcement for medium-duty applications
Design principle: Provides dimensional stability under vacuum and pressure surges

3. Cover Layer:

Material: White or blue EPDM, Chlorobutyl rubber
Properties: Abrasion-resistant, weather-resistant, anti-aging
Smooth finish for easy cleaning

Performance Parameters and Dimensions

Parameter	Range	Details
Inner Diameter	3/8 inch to 6 inch	10mm to 152mm
Working Pressure	Up to 300 psi	Burst pressure: 4:1 safety factor
Temperature Range	-40°F to +230°F	Continuous operation
Bend Radius	3 to 10 inches	Depends on ID and construction
Vacuum Rating	28 inches Hg	For suction applications

Additional Performance Features:

Pulse performance: 200,000 cycles minimum (SAE 100R6 equivalent)
Media resistance: Excellent against vegetable oils, dairy, beer, soft drinks, and cleaning chemicals
Durability: UV-resistant, ozone-resistant, non-marking cover
Flexibility: Maintains flexibility even at sub-zero temperatures

Standards and Certifications

HENGHUA food grade hose meets or exceeds:

FDA 21 CFR 177.2600 – U.S. Food and Drug Administration
EU Regulation 10/2011 – European food contact
GB 4806 – China national food safety standard
NSF/ANSI 51 – Food equipment materials (optional)
ISO 14001 – Environmental management

Each production batch undergoes rigorous testing: visual inspection, pressure verification, and cleanliness validation.

Complete Food Grade Hose Product Line – Types and Applications

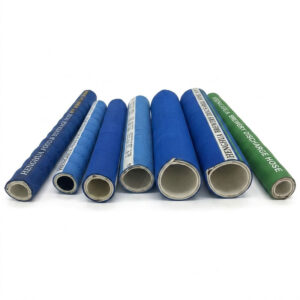

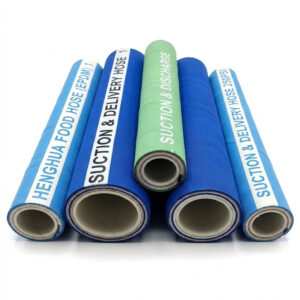

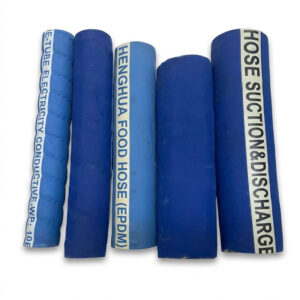

1. Food Suction and Discharge Hose

Definition: Heavy-duty rubber hose for transferring liquids from tankers to storage under gravity or pump pressure.

Size range: 1 inch to 6 inch
Pressure: Up to 150 psi working, 600 psi burst
Construction: Transparent or white NBR tube + textile/helical wire reinforcement
Applications: Dairy farms, wineries, juice plants, edible oil transfer
Temperature: -22°F to +176°F

2. Food Grade Wire Braided Hose

Definition: Medium-pressure Wire Braided Hose for pneumatic food conveying and pressurized transfer lines.

Size range: 3/8 inch to 2 inch
Pressure: Up to 300 psi (1-wire), 600 psi (2-wire)
Construction: White NBR tube + single/double steel braid + white EPDM cover
Applications: Beverage dispensing, food processing equipment, powder transfer
Bend radius: 4 to 8 inches (size-dependent)

3. High Pressure Food Hose (Wire Spiral)

Definition:Wire Spiral Hose engineered for high-pressure food processing and wash-down applications.

Size range: 3/4 inch to 2 inch
Pressure: Up to 1000 psi (4-spiral), 1500 psi (6-spiral)
Construction: UHMWPE tube + 4/6 steel wire spirals + abrasion-resistant cover
Applications: High-pressure cleaning, viscous fluid transfer, food paste pumping
Safety factor: 4:1 burst ratio

4. Silicone Food Grade Hose

Definition: Premium High Pressure Hose alternative for extreme temperature and pharmaceutical applications.

Size range: 1/4 inch to 4 inch
Pressure: Up to 145 psi (depends on reinforcement)
Construction: Platinum-cured silicone + polyester/fiberglass reinforcement
Applications: Beverage filling, cosmetic manufacturing, bioreactor lines
Temperature: -76°F to +400°F

Hose Assembly and Fittings – Complete Connection Solutions

HENGHUA provides comprehensive Assembly services and fittings for food grade hose systems:

Available Connection Types

Crimped fittings: Permanent stainless steel 304/316 for high-pressure security
Reusable fittings: Clamp-style for field assembly without crimping machines
Adapters: BSP, NPT, JIC, Camlock, and Tri-Clamp connections
Flanges: Stainless steel lap joint and blind flanges for tanker connections
Protective sleeves: Nylon or rubber guards for hose abrasion protection at wear points

All hose assembly components are FDA-compliant and available in sanitary finishes (32 Ra or better).

Industry Applications and Global Market Reach

HENGHUA food grade hose serves diverse sectors:

Industry	Application	Hose Type Recommended
Dairy	Milk transfer from tankers	Suction/discharge
Beverage	Beer/wine bottling lines	Silicone or Wire Braided
Confectionery	Chocolate and syrup pumping	High Pressure Wire Spiral
Pharmaceutical	API transfer and filling	Platinum silicone
Cosmetics	Cream and lotion manufacturing	White NBR braided

Global export footprint: USA, Canada, Mexico, Brazil, Germany, France, UK, Italy, Spain, Australia, New Zealand, South Africa, UAE, Saudi Arabia, India, Thailand, Vietnam, South Korea.

Pricing, Supply, and Procurement Information

Understanding Food Grade Hose Price Factors

The cost of food grade hose depends on:

Construction complexity: Wire spiral > wire braided > textile
Inner tube material: Silicone (highest) > NBR > SBR
Certification level: FDA+EU+NSF (premium) vs. FDA only
Order volume:Bulk orders reduce per-meter price by 15-30%
Fittings included: Crimped assemblies add $2-10 per end

How to Source and Buy from China

Step 1 – Request specification sheet: Download our pdf catalog with full technical data
Step 2 – Submit inquiry: Provide ID, pressure, temperature, and fitting requirements
Step 3 – Receive quotation: Get price break for bulk or wholesale quantities
Step 4 – Sample validation: Order 1-2 meter samples for internal testing
Step 5 – Production & shipping: Lead time 15-30 days for standard orders

Minimum order quantity: 500 meters (lower for sample orders)
Payment terms: T/T, L/C, Western Union
Shipping ports: Shanghai, Ningbo, Qingdao

Future Trends in Food Grade Hose Technology

The industry is moving toward:

Lighter weight: Thermoplastic elastomers replacing traditional rubber
Smart hoses: Embedded RFID tags for traceability and temperature sensors
Eco-friendly materials: Bio-based polymers and recyclable covers
Higher pressure ratings: Up to 2000 psi for direct food injection systems

HENGHUA invests 8% of annual revenue in R&D to pioneer these innovations.

Frequently Asked Questions (FAQ)

Q1: Is food grade hose suitable for dry powders?
Yes, with smooth bore and anti-static properties. Specify powder transfer application when ordering.

Q2: Can I use standard industrial hose for temporary food transfer?
No. Only certified food grade hose prevents chemical migration into consumables.

Q3: How long does food grade hose last?
3-5 years under normal conditions, 1-2 years with daily cleaning cycles (CIP/SIP).

Q4: Do you offer reusable fittings for field repairs?
Yes, stainless steel clamp-style reusable fittings available for 1-2 inch diameters.

Q5: What documentation comes with export orders?
Test reports, FDA certificates, batch traceability records, and installation guides (PDF).

Factory Capabilities – Manufacturing Reliability from China

Infrastructure and Scale

Total area: 35,000㎡ (production, warehousing, R&D center)
Daily capacity: 100,000 meters of finished hose
Annual output: 20 million meters
Automated lines: 95 (braiding, spiraling, curing, cutting, crimping)

Quality Assurance System

Laboratory equipment: Pulse testers (1 million cycles), burst test benches (up to 20,000 psi), ozone chambers, spectrometers
Traceability: Unique ID card for each production batch
Certifications: IATF 16949, ISO 9001:2015, ISO 14001, FDA registration

Customization and Bulk Supply

OEM ODM: Custom lengths (50m to 200m), colored covers, branded printing
Bulk discount: Tiered pricing for 500m+, 1000m+, and container orders
Wholesale programs for distributors and wholesalers
Exporter documentation: Commercial invoice, packing list, BL, CO, Form E

Quality and Standards Compliance

For industries like food, beverage, and pharmaceuticals where safety is critical, material quality and process compliance are non-negotiable. HENGHUA has established a full-traceability quality control system from raw material receiving to finished product shipping, ensuring every meter of food grade hose meets the world’s most stringent market access requirements.

Full Certifications – Meeting Global Market Access Requirements

We understand that an authoritative certification is often the “entry ticket” for project bidding. HENGHUA’s food grade hose product range has passed the following domestic and international certifications, removing trade barriers for you:

Certification	Applicable Scope	Customer Value
ISO 9001:2015	Quality Management System	Ensures standardized, traceable production processes and batch-to-batch consistency.
IATF 16949	Automotive Quality System	Proves our rigorous process control capability to serve high-end manufacturing.
FDA 21 CFR 177.2600	U.S. Food and Drug Administration	Permits contact with aqueous, fatty, and dry foods. Mandatory for U.S. market.
EU Regulation 10/2011	EU Food Contact Materials	Complies with EU migration limits for plastics and rubber. Required for Europe exports.
GB 4806 & GB 9685	China Food Safety Standards	Satisfies domestic food-grade hose compliance reviews. Easy for local project acceptance.
MSHA (Optional)	U.S. Mine Safety and Health Administration	Proves flame-resistant and anti-static cover properties. Suitable for underground mine food conveying.
SGS Test Report	Third-Party Verification	Independent testing reports available per your specifications (e.g., ROHS, REACH).

Benefit to You: Whether your project is in the USA, EU, Southeast Asia, or the Middle East, we provide corresponding compliance documents to help you clear customs and pass inspections quickly.

Benchmarking World-Class Brands – Performance Comparable to Parker, Gates & Eaton

“High quality” cannot just be words. HENGHUA’s R&D and testing standards benchmark Parker, Gates, and Eaton from the very beginning. We deliver on this promise through:

Same Standard Design: Our Wire Braided Hose and Wire Spiral Hose strictly follow SAE 100 series and ISO 18752 international standards, ensuring key parameters (working pressure, minimum bend radius, pulse performance) are technically aligned with premium global brands.
Equivalent Raw Materials: Inner tube uses imported Lanxess or equivalent synthetic rubber. Reinforcement uses high-tensile steel wire from Baosteel. No performance compromise from the source.
Third-Party Comparative Testing: In SGS or national lab burst, pulse, and ozone resistance comparison tests, HENGHUA food grade hose achieved over 95% of the performance level of target benchmark brands, at 40-60% of the cost.

Independent Test Result Example:

Pulse Test (ISO 18752): HENGHUA 2-wire braided hose survived 400,000 cycles (vs. standard requirement of 200,000 cycles), matching tier-one brand durability.
Burst Test: Achieved 4.2:1 safety factor (vs. industry standard 4:1), exceeding requirements.

Rigorous Testing – Making Quality Control Specific

Every production batch undergoes mandatory testing before release. We don’t just claim quality – we prove it with data. Our in-house ISO 17025-calibrated laboratory performs:

Test Type	Equipment Used	Standard	What We Verify
Pulse Test	Digital Pulse Tester (1M cycles capacity)	SAE 100R6 / ISO 18752	Dynamic service life under pressure spikes. Simulates real operating conditions.
Burst Test	Computer-Controlled Burst Bench (20,000 psi)	SAE / ISO / GB	Ultimate pressure limit. Verifies 4:1 safety factor.
Proof Pressure Test	Automated Hydro Tester	All internal specs	100% of hoses tested to 2x working pressure before shipping.
Ozone Aging	Ozone Test Chamber	ISO 1431	Cover resistance to cracking. Ensures long outdoor service life.
Adhesion Test	Tensile Tester	ISO 8033	Bond strength between tube, reinforcement, and cover layers.
Cold Bend Test	Low-Temperature Chamber	ISO 4672	Flexibility at rated minimum temperature (-40°F).

Our Commitment:

Each hose assembly receives a unique traceability ID.
Test records are retained for 10 years.
A pdfspecification sheet with actual test values accompanies every shipment upon request.

Why This Matters to You: When you buy from HENGHUA, you are not gambling on quality. You are getting audited, documented, and proven performance that protects your production uptime and brand reputation.

Selection and Usage Considerations

5-Step Selection Process

Define the medium: Oil-based (use NBR), acidic (use EPDM), or high-purity (use silicone/UHMWPE)
Calculate working pressure: Add 30% safety margin to maximum system pressure
Check temperature range: Verify continuous and peak temperatures
Measure bend requirements: Ensure installation radius exceeds minimum bend radius
Confirm fittings compatibility: Match thread type and size to existing equipment

Installation and Maintenance Best Practices

Do’s:

Use protective sleeves at abrasion points
Install with 2% slack for thermal expansion
Apply correct torque to crimped fittings (refer to pdfspecification sheets)

Don’ts:

Exceed minimum bend radius (causes kinking and reinforcement damage)
Drag hose assembly across sharp edges
Mix different material classes in same transfer line

Inspection checklist (monthly):

Check cover for cuts, swelling, or hardening
Verify fittings are tight without leaks
Look for flanges corrosion or gasket deterioration
Replace any hose with visible reinforcement exposure

Why Choose HENGHUA as Your Food Grade Hose Supplier?

HENGHUA stands as a trusted manufacturer, factory, producer, and supplier of high-performance fluid connection solutions. With 35000㎡ manufacturing base and 95 automated production lines, we deliver food grade hose products that match international quality benchmarks.

Technical Layer: Our R&D team of 25 engineers specializes in Wire Braided Hose, Wire Spiral Hose, and High Pressure Hose technologies adapted for food-grade applications. We maintain full IATF 16949 and ISO 9001 certification, with in-house pulse testing, burst testing, and ozone aging validation.

Service & Value Layer: As an integrated distributor, wholesaler, and exporter, we provide OEM ODM customization, bulk pricing, and 24/7 technical support. Our products reach over 70 countries including USA, Germany, Australia, Canada, and Brazil.

Call to Action: Partner with HENGHUA for reliable food grade hose supply. Contact our sales team for quotes and samples
