EN 856 4SP Hydraulic Hose

Product Overview

The EN 856 4SP hydraulic hose is a high-performance, four-layer spiral steel wire reinforced rubber hose designed for the most demanding high-pressure hydraulic applications. Manufactured in strict compliance with the European standard (EN 856 4SP), this high pressure hose is specifically engineered for systems requiring superior strength and reliability, such as mine hydraulic supports and heavy-duty mobile equipment. Its robust construction ensures safety and longevity in critical operations.

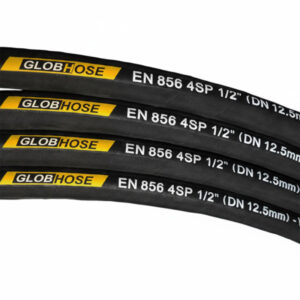

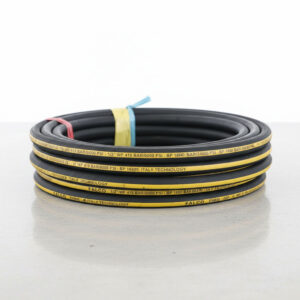

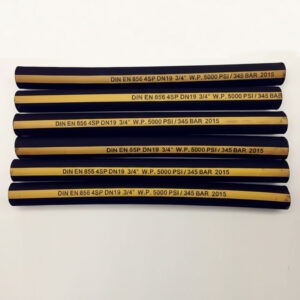

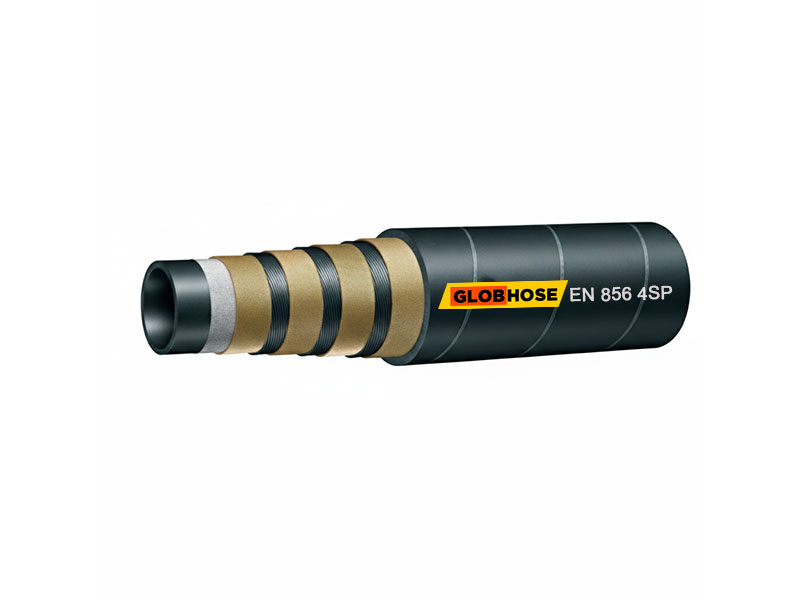

Constructed from three precision-engineered components, the EN 856 4SP hose features a black oil-resistant synthetic rubber tube, a reinforcement of four layers of high tensile spiraled steel wire, and a durable black synthetic rubber cover. This structure provides a perfect balance of flexibility and immense strength, distinguishing it from wire braided hose options.

Delivering exceptional performance, this wire spiral hose operates effectively in temperatures ranging from -40°C to +100°C. It is designed to withstand extremely high working pressures, up to 45 MPa (6525 psi) in smaller sizes, and offers a 4:1 safety factor with a minimum burst pressure four times the working pressure. Key advantages include:

1. Exceptional High-Pressure Resistance: The four-layer spiral wire construction handles extreme pressure spikes and impulse shocks.

2. Flame & Static Resistance: Suitable for hazardous environments like mines, meeting stringent safety requirements.

3. Superior Durability: The cover is resistant to abrasion, corrosion, oil, ozone, and weathering, ensuring a long service life.

4. Robust Flexibility: Despite its strength, the hose maintains a good minimum bending radius for easier installation in tight spaces.

The EN 856 4SP hydraulic hose is the preferred choice for high pressure hose systems in engineering machinery, mining equipment, and metallurgical plants. It directly addresses the core customer pain points of frequent hose failure due to pressure spikes and premature wear in abrasive environments. Our commitment to quality is backed by rigorous testing and compliance with international standards, ensuring a reliable product that meets the demands of your project. As a leading manufacturer and supplier in China, we provide a complete solution for your hydraulic needs.

Product Advantages

Ultra-High Pressure Performance: Designed for systems with working pressures up to 45 MPa (6525 psi), making it ideal for the most intensive hydraulic applications.
Superior Pulse Resistance: The 4-spiral construction excels under extreme and continuous pressure fluctuations, dramatically extending the hose’s operational life compared to standard braided hoses.
Excellent Oil & Abrasion Resistance: The NBR inner tube ensures compatibility with hydraulic oils, while the robust outer cover withstands severe abrasion, cutting, and weather exposure.
Enhanced Safety with 4:1 Safety Factor: Engineered to meet the EN standard requirement of a minimum burst pressure that is four times the working pressure, providing a critical safety margin in high-stakes environments.
Proven Reliability in Harsh Conditions: Specifically designed to be flame-resistant and anti-static, it meets the rigorous safety standards required in mining and other high-risk industries.

Detailed Technical Specifications

Structure and Materials

• Tube (Inner Layer): Made from high-quality black oil-resistant synthetic rubber (Nitrile). This layer provides a smooth, low-friction path for hydraulic fluids, ensuring compatibility and resistance to degradation from oils and water-based emulsions.

• Reinforcement: Four layers of high-tensile, high-strength spiraled steel wire. These layers are applied in alternating directions to balance radial and axial forces, creating a robust backbone that resists extreme pressures, impulse fatigue, and kinking. This is the defining feature of a wire spiral hose.

• Cover (Outer Layer): A high-quality black synthetic rubber (often Chloroprene) with a distinctive cloth-finish appearance. It is engineered to be resistant to abrasion, corrosion, cuts, weather, ozone, and oil, protecting the reinforcement from environmental damage.

Application Industries

Where to Use EN 856 4SP Hose

• Mining Industry: Hydraulic roof supports, roof bolters, continuous miners, and long-wall mining systems. Its flame and static-resistant properties are critical here.

• Engineering & Construction: Heavy machinery such as large excavators, bulldozers, loaders, and cranes where high-pressure circuits operate.

• Metallurgical Plants: Hydraulic systems in rolling mills, continuous casting machines, and furnace controls that face high heat and pressure.

• Industrial Manufacturing: Heavy presses, injection molding machines, and die-casting equipment requiring reliable high-pressure power transmission.

• Oil & Gas Exploration: Offshore and onshore drilling equipment, wellhead controls, and mobile fracturing units.

Precise Selection Professional Guide

EN 856 4SP vs. 4SH vs. 2SN
Choosing the correct hose is critical for system longevity and safety.

• EN 856 4SP vs. EN 856 4SH: Both are 4-spiral hoses per the EN standard. However, 4SP hoses have a thicker wire and are designed to handle higher working pressures than 4SH hoses of the same size. For instance, in the 1/2″ size, EN 856 4SP is rated at 41.5 MPa, while a typical 4SH hose is rated lower.

• EN 856 4SP vs. EN 853 2SN (Wire Braided): While 2SN is a common wire braided hose for medium-pressure applications, EN 856 4SP is a wire spiral hose for ultra-high pressure. Spiral reinforcement provides superior resistance to impulse fatigue and handles higher pressures, making 4SP the only choice for heavy-duty applications with constant pressure peaks.

Hose Assembly & Fittings
A hose is only as strong as its connection. For a reliable hose assembly, we recommend using crimped fittings that are specifically designed to match the wire spiral construction. Our factory provides complete hose assembly services, including cutting, skiving (when necessary), crimping, and pressure testing. We offer a wide range of end connections, including crimped fittings, reusable fittings, BSP/NPT threads, adapters, and flanges, to ensure a leak-free, durable integration with your system. For added protection in extreme environments, we also supply protective sleeves and guards.

Technical Standards and Certifications

The EN 856 4SP hydraulic hose is manufactured in accordance with the European standard EN 856 (which can be referenced in the official en 856 standard pdf). It meets or exceeds the performance requirements of this specification. We ensure full traceability and consistent quality, with our manufacturing facilities holding ISO 9001 certification. Key technical benchmarks include:

• Design Standard: EN 856 Type 4SP

• Impulse Test: Conforms to EN ISO 6803, withstanding over 400,000 impulse cycles at elevated temperatures, far exceeding the standard requirement, demonstrating exceptional fatigue life. This is a critical differentiator from lower-quality rubber hose options.

• Safety Factor: A minimum 4:1 ratio between burst and working pressure.

Brand and Quality Assurance

As a professional hydraulic hose manufacturer and exporter based in China, we pride ourselves on delivering products that meet global quality standards. Our commitment is backed by a rigorous quality management system:

• Raw Material Inspection: Every batch of synthetic rubber and high-tensile steel wire is tested upon arrival to ensure it meets our strict specification.

• In-Process Control: During tube extrusion, wire spiraling, and vulcanization, parameters are continuously monitored to guarantee consistency.

• 100% Factory Testing: Each finished hose is subjected to a proof pressure test at 50% of the minimum burst pressure, as per the 4sp hydraulic hose specification, to verify integrity before it leaves our factory.

• Laboratory Validation: Our in-house lab is equipped to conduct burst tests, impulse tests, and fluid compatibility tests to validate performance and durability.

Installation, Operation, and Maintenance Guide

1. Inspection: Before installation, inspect the hose for any damage, kinks, or abrasions to the cover. Never use a damaged hose.

2. Bending: Observe the specified minimum bending radius during installation. Bending tighter than this radius will significantly reduce the hose’s life and pressure rating.

3. Twisting: Avoid twisting the hose during installation. Hydraulic pressure will try to untwist it, which can loosen fittings. Use a swivel fitting if necessary.

4. Routing: Protect the hose from external abrasion and heat sources. Use protective sleeves or guards in high-traffic or high-temperature areas.

5. Storage: Store hoses in a cool, dark, and dry environment away from ozone sources (like electric motors) to prevent premature aging of the rubber.

Frequently Asked Questions (FAQ)

Q1: What is the definition of EN 856 4SP?
A1: It is a European standard (EN 856) classification for a four-spiral-wire reinforced high pressure hose. The “4SP” designation specifies a hose with four layers of steel wire spiral, designed for very high working pressures.

Q2: What is the en 856 4sp equivalent in other standards?
A2: While not a direct equivalent due to construction differences, in terms of pressure capacity, EN 856 4SP often overlaps with SAE 100R15 or exceeds the ratings of SAE 100R12. Always consult a pressure comparison chart for exact substitutions.

Q3: Can I use this hose for water or other fluids?
A3: The hose is primarily designed for petroleum and water-based hydraulic fluids. While compatible with many, it is generally not recommended for high-pressure water jetting or diesel fuel. Please consult our fluid compatibility charts or contact our support team for specific applications.

Q4: Do you offer custom lengths and pre-made assemblies?
A4: Yes. As a full-service supplier and distributor, we supply the hose in bulk reels and also offer custom-cut lengths and complete hose assemblies with your choice of crimped fittings or reusable fittings. Contact us with your specification.

Ready to enhance the reliability and safety of your high-pressure hydraulic systems? Contact our expert team today for a competitive price on the EN 856 4SP hydraulic hose. Whether you need to buy in bulk, require a custom hose assembly, or are looking for a long-term supply agreement, we are your trusted source. Get a discount on wholesale orders and experience premium service and support from a leading factory and producer.
