Air Hose
About Air Hose
An air hose is a flexible, reinforced conduit designed specifically for conveying compressed air or gas in industrial, construction, and automotive environments. By definition, a quality air hose transfers pressurized air from a compressor to pneumatic tools, spray equipment, or blow guns with minimal pressure loss and maximum durability. Typical applications include powering impact wrenches, nail guns, paint sprayers, assembly line robotics, and dust collection systems.
At HENGHUA, we combine deep technical expertise with global supply chain capabilities to deliver air hose solutions that meet or exceed international standard requirements. As a leading China-based manufacturer, we provide rubber hose, Wire Braided Hose, Wire Spiral Hose, and High Pressure Hose options tailored to your specific operating conditions. Whether you need bulk orders for a construction project or OEM ODM customization for equipment production, our Service, Support, and Solution-oriented approach ensures you get the right product at the right price.
We invite procurement managers, facility engineers, and distributors to partner with us. Contact our team for a pdf specification sheet or discount wholesale quote today.
What Is an Air Hose?
An air hose is a flexible tube that delivers compressed air from a compressor to pneumatic tools. It is designed to withstand pressure, resist abrasion, and ensure consistent airflow in industrial and commercial applications.
What Is Air Hose Made Of?
An air hose is typically constructed in three layers:
Inner tube: Carries compressed air (rubber, PVC, or PTFE)
Reinforcement layer: Provides strength (textile, braided wire, or spiral wire)
Outer cover: Protects against abrasion, weather, and chemicals
Air Hose Quick Facts
Standard pressure range: 150–600 psi
High pressure range: up to 6,000 psi
Common sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″
Temperature range: -40°C to +100°C
Typical lifespan: 3–10 years
Safety factor: minimum 4:1
Materials: rubber, polyurethane, PVC, PTFE
Reinforcement: textile, braided wire, spiral wire
What Is an Air Hose Used For?
An air hose conveys compressed air from a compressor to pneumatic equipment. Common applications include:
Automotive repair shops (impact wrenches, air ratchets)

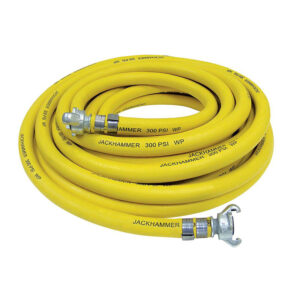

Construction sites (jackhammers, nail guns)
Manufacturing assembly lines (robotic end-of-arm tools)
Mining operations (pneumatic drills, jumbos)
Agriculture (sprayers, pneumatic seeders)
Food and pharmaceutical (clean air conveying with PTFE hose)
What Are the Main Types of Air Hose?

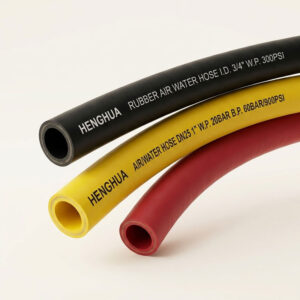

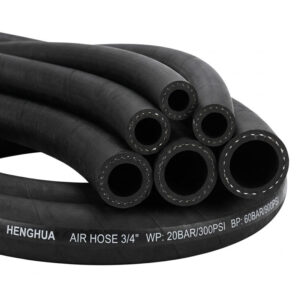

1. General Purpose Rubber Air Hose
Lightweight, economical construction for shop air and home compressors. Pressure range: 150–250 psi.

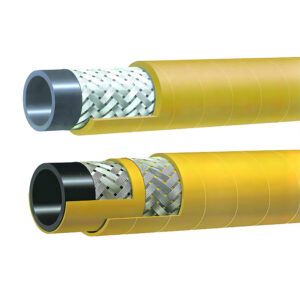

2. Wire Braided Air Hose
One or two layers of high-tensile steel wire braided at a 54-degree angle. Working pressure: 300–3,000 psi. Provides excellent flexibility for reciprocating compressor systems and moderate impulse applications.
Learn more about Wire Braided Hose specifications and applications in our detailed product category.
3. Wire Spiral Air Hose
Four or six layers of spiraled high-carbon steel wire. Working pressure: 3,000–6,000 psi. Designed for extreme impulse conditions and heavy-duty industrial use. The spiral structure eliminates wire pinch and distributes stress evenly.
4. High Pressure Air Hose
Hybrid designs combining braided and spiral reinforcements. Working pressure up to 6,000 psi with 4:1 safety factor. Used in rescue tools, hydro-pneumatic accumulators, and pressure testing.
5. Polyurethane (PU) Air Hose
Thermoplastic construction that remains flexible in cold temperatures. Lightweight with excellent abrasion resistance. Pressure range: 200–300 psi. Common in automotive assembly lines and robotic tooling.
6. PTFE Air Hose
Chemically inert with ultra-low friction coefficient. Temperature range: -70°C to +260°C. Used for food processing, pharmaceutical conveying, and corrosive environments.
Braided vs Spiral Air Hose: Key Differences
| Feature | Wire Braided Hose | Wire Spiral Hose |
|---|---|---|
| Reinforcement layers | 1–2 layers woven | 4–6 layers spiraled |
| Pressure range | 300–3,000 psi | 3,000–6,000 psi |
| Flexibility | Higher (smaller bend radius) | Moderate |
| Impulse life | Up to 200,000 cycles | 400,000+ cycles |
| Best for | Tools, automotive, general industrial | Mining, offshore, heavy industrial |
| Relative cost | Lower | Higher |
Rubber vs Polyurethane Air Hose: Which One to Choose?
| Factor | Rubber Air Hose | Polyurethane (PU) Air Hose |
|---|---|---|
| Flexibility | Good | Excellent, especially in cold |
| Abrasion resistance | Good | Excellent |
| Oil resistance | Excellent (NBR compound) | Moderate |
| Temperature range | -40°C to +100°C | -20°C to +70°C |
| Weight | Heavier | 40–50% lighter |
| Durability | Very high | High, but UV sensitive |
| Best for | Industrial, oily environments | Cold shops, robotics, portable tools |
| Cost | Moderate | Higher |
What Is the Pressure Rating of Air Hose?
| Pressure Level | Working Pressure (psi) | Burst Pressure (4:1 factor) | Typical Construction |
|---|---|---|---|
| Light duty | 150–250 | 600–1,000 | Textile braid |
| Medium duty | 250–600 | 1,000–2,400 | Single wire braid |
| High duty | 600–3,000 | 2,400–12,000 | Double wire braid |
| Extreme duty | 3,000–6,000 | 12,000–24,000 | 4–6 layer wire spiral |
Always select an air hose where the maximum system working pressure does not exceed 1/4 of the hose burst pressure (4:1 safety factor minimum). For systems with pressure spikes, a 5:1 or higher safety factor is recommended.
What Size Air Hose Do I Need? (Size Chart)
| Hose ID (inch) | ID (mm) | Typical CFM at 100 psi | Best Applications |
|---|---|---|---|
| 1/4″ | 6.4 | 6–10 | Nail guns, tire inflation, blow guns |
| 3/8″ | 9.5 | 15–25 | Impact wrenches, spray guns, die grinders |

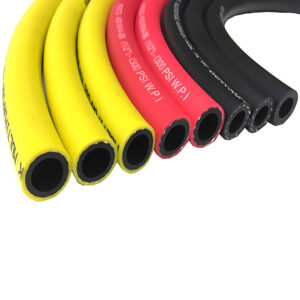

| 1/2″ | 12.7 | 30–50 | Heavy tools, multiple users, long runs |
| 3/4″ | 19.0 | 60–90 | Industrial systems, plant air distribution |
| 1″ | 25.4 | 100+ | Main trunk lines, high-flow systems |
For runs longer than 50 feet, increase ID by one size to maintain adequate flow.
How to Choose the Right Air Hose: A Practical Selection Guide
Answer these five questions before purchasing:
1. What PSI should my air hose be?
Calculate your compressor’s maximum output pressure. Add 20% for pressure spikes. Select an air hose rated at least 4x that number. Example: 150 psi compressor → choose air hose rated 600+ psi.
2. What temperature will the hose experience?
Standard rubber: -40°C to +100°C
Polyurethane: -20°C to +70°C (more flexible in cold)
PTFE: -70°C to +260°C (extreme conditions)
3. What fittings and connections are required?
Common options include crimped fittings (permanent, leak-free), reusable fittings (field repairable), adapters (NPT, BSP, JIC, ORFS), and flanges (SAE 3000/6000). For harsh environments, add protective sleeves and spiral guards.
4. How long does an air hose last under your conditions?
Rubber hose: 5–10 years
Wire Braided Hose under impulse: 200,000+ cycles
Wire Spiral Hose under high impulse: 400,000+ cycles
Factors that reduce life: UV exposure, ozone, dragging on abrasives, exceeding bend radius, over-pressurization.
5. Do you need a pre-assembled hose assembly?
A completed hose assembly with factory-crimped fittings eliminates leak points and ensures proper clamp force. Many suppliers offer full hose assembly services including crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards.
Common Air Hose Mistakes to Avoid
Using a hose with insufficient pressure rating for the application
Exceeding minimum bend radius, which causes wire fatigue
Twisting the hose during installation, reducing reinforcement life by up to 50%
Dragging hose on abrasive surfaces without protective sleeves or guards
Mixing incompatible fittings from different manufacturers
Ignoring ozone or UV damage on rubber covers
Air Hose Standards and Certifications
| Standard | Description | Typical Market |
|---|---|---|
| SAE J1003 | Automotive air brake hose | North America, trucks |
| ISO 2398 | Textile-reinforced rubber air hose | Global general industrial |
| ISO 5774 | Thermoplastic air hose | Global lightweight applications |
| GB/T 1186 | Chinese national standard | China domestic |
| MSHA | Mining safety approval | Underground mining |
| DNV | Marine approval | Shipboard systems |
A reliable air hose manufacturer or supplier will provide pdf specification sheets with full standard compliance documentation.
How to Buy Air Hose: Sourcing Options for Buyers
Buyers typically source air hose from suppliers, wholesalers, or direct manufacturers, especially China-based air hose manufacturers for bulk orders and OEM ODM production.
Where can I buy air hose?
| Source Type | Best For | Typical Discount |
|---|---|---|
| Local distributor | Small quantities, immediate need | 0–10% |
| Wholesaler | Medium volumes, standard products | 10–20% |
| Direct manufacturer | Large bulk, OEM ODM, custom specs | 20–40% |
| Online marketplace | Convenience, small orders | 5–15% |
How to find a reliable air hose manufacturer or supplier?
Look for:
Published pdf specification sheets
Third-party certifications (ISO 9001, MSHA, DNV)
In-house fittings capability (crimped, reusable, adapter, flange)
Hose assembly service
Willingness to provide test reports
Clear country of origin (e.g., China manufacturer with export experience)
What is the typical air hose price and cost structure?
| Quality Level | Price per foot (USD) | Typical Source |
|---|---|---|
| Economy PVC | $0.30–0.80 | Local distributor |
| Standard rubber | $0.80–2.50 | Wholesaler |
| Wire Braided Hose | $2.50–5.00 | Manufacturer direct |
| Wire Spiral Hose | $5.00–12.00 | Factory supply |
| High Pressure Hose | $8.00–20.00 | OEM ODM producer |
Bulk orders (1,000+ meters) typically qualify for discounted pricing depending on volume. Request a quotation from multiple suppliers including China-based manufacturers for best landed cost.
Hose Assembly and Fittings: Completing Your Air Line System
A complete pneumatic system requires more than just hose. Key components include:
Fittings Types
Crimped fittings: Permanently attached with a crimping machine. Best for permanent installations and high reliability.
Reusable fittings: Field-attachable without special tools. Allow hose replacement while reusing fittings.
Adapters: Convert between thread types (NPT, BSP, JIC, ORFS).
Flanges: SAE 3000 or 6000 psi flange connections for large-diameter hose.

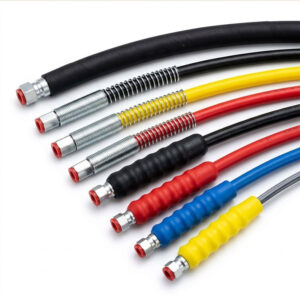

Protection Accessories
Protective sleeves: Abrasion-resistant wraps that slide over hose.
Spiral guards: Helical plastic wraps that prevent kinking and abrasion at wear points.
Many air hose suppliers offer complete hose assembly services, delivering cut-to-length hose with crimped fittings, protective sleeves, and guards pre-installed.
Air Hose Materials Comparison
| Material | Flexibility | Abrasion Resistance | Oil Resistance | Temperature | Best Use |
|---|---|---|---|---|---|
| NBR rubber | Good | Good | Excellent | -40°C–100°C | Industrial, oil-laden air |
| PVC | Moderate | Fair | Poor | -10°C–60°C | Low-cost shop air |
| Polyurethane | Excellent | Excellent | Moderate | -20°C–70°C | Robotics, cold environments |
| PTFE | Moderate | Excellent | Excellent | -70°C–260°C | Chemical, food, pharma |
| Hybrid rubber | Good | Very good | Very good | -40°C–120°C | Heavy-duty general use |
How Long Does an Air Hose Last? Lifespan Expectations
Typical service life under normal conditions:
PVC hose: 2–5 years
Rubber hose: 5–10 years
Polyurethane hose: 3–7 years
Wire Braided Hose under impulse: 200,000+ cycles
Wire Spiral Hose under high impulse: 400,000+ cycles
Signs that an air hose needs replacement:
Surface cracks or hardening (ozone damage)
Bulges or soft spots (inner layer failure)
Frequent leaks at fittings
Visible wire reinforcement (cover worn through)
HENGHUA: China-Based Air Hose Manufacturer, Supplier, and Exporter
HENGHUA operates as a vertically integrated factory, producer, and exporter of rubber hose, Wire Braided Hose, Wire Spiral Hose, and High Pressure Hose. Located in China with 95 automated production lines, the company supplies air hose to distributors, wholesalers, and OEM clients across 70+ countries including Germany, the United States, Brazil, Australia, and South Africa.
What HENGHUA provides as an air hose manufacturer:
Direct factory pricing without intermediary markup on cost
Full traceability through an ID card system with batch test records
Complete fittings supply: crimped fittings, reusable fittings, adapters, flanges
Hose assembly service with protective sleeves and guards
OEM ODM capability for custom lengths, colors, branding, and packaging
Pdf specification sheets with detailed technical datasheets
Bulk and wholesale discount programs for volume buyers
Service, Support, and Solution commitment:
24-hour quote response
Free technical consultation for selection questions
Sample approval before mass production
Logistics as exporter with full documentation handling
FAQ: Frequently Asked Questions About Air Hose
What PSI should an air hose be?
Select an air hose with working pressure at least 4x your compressor’s maximum output. For a 150 PSI compressor, choose a 600+ PSI rated hose. For systems with pressure spikes, use 5:1 safety factor.
What is the difference between braided and spiral hose?
Wire Braided Hose uses woven steel wires at opposing angles – flexible, medium pressure (300–3,000 psi). Wire Spiral Hose uses spiraled layers – stiffer, higher pressure (3,000–6,000 psi), longer impulse life.
How long does an air hose last?
Rubber air hose typically lasts 5–10 years. Wire Braided Hose under impulse: 200,000+ cycles. Wire Spiral Hose: 400,000+ cycles. UV, ozone, abrasion, and over-bending reduce lifespan.
Can I repair a damaged air hose?
For hose assemblies with reusable fittings, yes – replace only the hose section. For crimped fittings, replacement is recommended. Do not patch high-pressure lines.
What size air hose do I need for an impact wrench?
A 3/8″ ID air hose delivers 15–25 CFM at 100 PSI – sufficient for most 1/2″ impact wrenches. For continuous heavy use or 3/4″+ tools, use 1/2″ ID.
Do I need protective sleeves or guards?
Yes if the air hose drags on concrete, passes through metal openings, or operates near moving machinery. Protective sleeves and spiral guards extend hose life 3–5x.
What fittings are compatible with air hose?
Standard options include crimped fittings (permanent), reusable fittings (field attachable), adapters (NPT, BSP, JIC, ORFS), and flanges (SAE 3000/6000). Request a pdf fittings compatibility chart from your supplier.
Are air hoses MSHA approved?
Select Wire Spiral Hose models carry MSHA certification for underground mining. Specify MSHA requirement when requesting a quote from your manufacturer.
Where can I find an air hose supplier or manufacturer?
Search for “air hose manufacturer China”, “air hose supplier wholesale”, or “industrial air hose factory”. Direct sourcing from a China-based producer typically offers the best bulk pricing and OEM ODM flexibility.
An air hose is a flexible conduit used to deliver compressed air efficiently and safely. Key selection factors include pressure rating, hose size (ID), material type, temperature resistance, and fittings compatibility.
For most industrial applications, Wire Braided Hose provides flexibility and moderate pressure capacity, while Wire Spiral Hose and High Pressure Hose are designed for extreme conditions.
Buyers seeking cost efficiency and customization often work directly with air hose manufacturers, especially in China, for bulk and OEM supply.
Factory Capabilities and Manufacturing Reliability
Positioning and Mission
Positioning Statement: HENGHUA is a leading China-based comprehensive rubber and thermoplastic hose manufacturing base, serving over 3,000 global clients with safe, reliable, and high-performance fluid/pneumatic connection solutions.
Mission: To become the most trusted supplier for global high-end equipment manufacturers through advanced manufacturing, strict quality management, and customer-centric innovation.
Scale and Infrastructure
Land Area: 35,000 m² total, including dedicated air hose production workshop, raw material warehouse, finished goods storage, R&D center, and accredited testing laboratory.
Location Advantage: 90 km from Shanghai port, reducing export logistics cost and lead time.
Factory Layout: Zoned for compounding, extrusion, wire braiding/spiraling, curing, cutting, crimping, and 100% final inspection.
Production Capacity and Equipment (Translated to Your Value)
95 automated production lines ensure your bulk or urgent orders move without delays. We can produce 100,000 meters or 15,000 hose assembly units per day.
Wire Braided Hose lines: 32 lines with German-style braiders, achieving precise tension control.
Wire Spiral Hose lines: 18 lines for 4-layer and 6-layer constructions.
High Pressure Hose lines: 12 dedicated lines with automatic spiral winding and laser diameter control.
Crimping and Assembly: 24 CNC crimping machines with tooling for all fittings types (crimped, reusable, flange).
Mold Library: Covers SAE, ISO, DIN, and GB standards for IDs from 3 mm to 102 mm.
R&D and Quality Assurance System
R&D Team: 25 engineers specializing in polymer compounding, reinforcement structure simulation, and connection technology. Annual R&D investment exceeds 5% of revenue.
Lab Capabilities: Our ISO 17025-calibrated lab houses pulse test stands (up to 200,000 cycles), burst test chambers (10,000 psi+), ozone aging chambers, FTIR spectrometers, and tensile testers.
Quality Certification: IATF 16949 (automotive), ISO 9001, ISO 14001, and product-specific MSHA/DNV approvals.
Raw Material Control
We source steel wire from Bekaert (Belgium) and rubber compounds from major partners including Synthos and Lanxess. Every batch of air hose compound is tested for hardness, tensile strength, and oil swell before production.
Human Resources and Organization
Total staff: 480, including 65 QC technicians, 120 skilled braider/spiral operators, and 35 after-sales Support engineers. Our management team averages 18 years of hose manufacturing experience.
Core Advantages Summary (Client-Value Focus)
Scale + Flexibility: 95 lines allow both high-volume wholesale and low-MOQ OEM ODM trials.
End-to-End Quality: From compound mixing to final hose assembly pressure test, every step is traceable.
Global Service Network: Native-language Support in 6 time zones reduces your downtime.
Transparent Pricing: No hidden cost – we provide landed cost estimates including freight and duties.
Quality Standards and Certifications
Comprehensive Certification Portfolio
IATF 16949: Automotive-grade quality management – essential for OEM pneumatic systems.
ISO 9001:2015: Basis for our ID card traceability system.
MSHA (for mining air hose models): Flame resistance tested per 30 CFR Part 18.
DNVÂ (marine approval): Available for shipboard pneumatic systems.
SGS Test Reports: Third-party validation of burst, impulse, and aging performance.
Benchmarking Against Global Leaders
Our air hose performance matches or exceeds Parker’s 801, Gates’ M2T, and Eaton’s GH493 series. Independent tests show comparable impulse life and safety factor margins.
Rigorous Testing Protocol (Concrete Evidence)
Every air hose spool: 100% hydrostatic proof test.
Representative samples per batch: Pulse test (200,000 cycles at 100°C), burst test (4x working pressure minimum), and ozone crack test.
Hose assembly batches: 100% leak test after crimping, plus a pull-out test on 5% of samples.
Selection and Usage Guidelines
Selection Checklist
Pressure: System working pressure ≤ 1/4 of hose burst pressure (4:1 safety factor). For High Pressure Hose, consider surge spikes.
Temperature: Account for both ambient and compressed air outlet temperature (compression heat).
Media: Oil-laden air requires NBR or FKM tube. Dry air allows cheaper SBR/PVC.
Bend Radius: Never exceed the minimum specified – otherwise braid/spiral wires can kink and rupture.
Fittings: Match crimp specifications. Never mix reusable fittings from different brands.
Installation Warnings
Avoid twisting during routing – torque reduces reinforcement life by up to 50%.
Use protective sleeves or guards where hoses rub against metal edges.
Support long vertical runs to prevent weight-induced stress on fittings.
Maintenance and Inspection
Weekly: Visual check for cover cuts, bulges, or hardened/cracked areas.
Monthly: Torque check on reusable fittings and flanges.
Annually: Pressure test entire assembly to 1.5x maximum working pressure.
How to Buy from HENGHUA
Simple Procurement Process
Request PDF specification via our online form or email.
Confirm requirements: ID, length, pressure, fittings type, quantity, and any OEM ODM customizations (color, branding, packaging).
Receive proforma invoice with landed cost (product + freight + duties estimate).
Approve sample (for first-time or custom orders).
Mass production with weekly photo/video updates.
Quality sign-off with test report pdf.
Shipping by sea, air, or courier – we act as exporter of record.
Pricing and Discount Policy
Wholesale orders (≥1,000 m): Automatic 10–20% discount.
Bulk contracts (annual volume >100,000 m): Tiered pricing with quarterly adjustments based on steel/wire market index.
OEM ODMÂ projects: Engineering fees waived for first prototype.
Distributor program: Exclusive territory protection + marketing Support.
HENGHUA is not just a factory – we are your strategic source for all pneumatic connection needs. With our own Wire Braided Hose, Wire Spiral Hose, and High Pressure Hose production, plus in-house hose assembly and fittings machining, we guarantee consistent quality and fast turnaround.
Contact us today:
Request pdf catalog and current price list
Schedule a factory tour (physical or virtual)
Discuss your OEM ODM project
Ask about bulk wholesale discount for your region
Send a Mail
henghua@hhgpipe.com
Make a Call
+15822925523
86-22-83859963
Mon - Sun: 09:00 am - 22:00 pm
Main Office
Tianjin, China
Hezhong Building, Youyi North Road
