SAE 100 R2 Hydraulic Hose

Product Overview

SAE 100 R2 hydraulic hose is a steel wire reinforced high pressure rubber hose designed according to SAE J517 standard, specifically engineered for petroleum-based hydraulic fluids in demanding industrial applications. This robust hose consists of three distinct layers: an oil-resistant synthetic rubber tube, two layers of high tensile braided steel wire reinforcement, and a weather-resistant synthetic rubber cover. What sets this SAE 100 R2 hydraulic hose apart is its exceptional pressure performance, with working pressures up to 35 MPa (5075 psi) and a 4:1 safety factor ensuring reliable operation in the most challenging environments. The hose delivers four core advantages: superior oil resistance preventing fluid degradation, excellent flexibility for tight installations, remarkable abrasion resistance extending service life, and consistent performance across extreme temperatures from -40°C to +100°C. China manufacturers produce this specification globally, making it readily available for construction equipment, mining machinery, agricultural tractors, dump trucks, and in-plant hydraulic systems. It directly solves critical industry pain points including frequent hose failures, oil leakage, system downtime, and premature wear in high-pressure applications. Each SAE 100 R2 hydraulic hose meets rigorous quality standards with full traceability and certification compliance.

Product Advantages

• Superior Pressure Handling: Engineered with two layers of high tensile braided steel wires delivering working pressures up to 35 MPa and minimum burst pressures reaching 140 MPa, ensuring reliable performance in high-pressure hydraulic systems

• Extended Service Life: High-quality synthetic rubber tube and cover provide exceptional resistance to abrasion, corrosion, oils, ozone, aging, sunlight, and cutting, significantly reducing replacement frequency

• Extreme Temperature Flexibility: Maintains excellent performance across a wide temperature range from -40°C to +100°C, suitable for both cold climate operations and high-heat industrial environments

• Versatile Application Compatibility: Perfectly suited for petroleum-based hydraulic oils, mineral oils, and water-glycol fluids commonly found in mobile and industrial equipment

Applicable Users: Construction contractors, mining operators, agricultural businesses, industrial plant maintenance teams, hydraulic equipment manufacturers, and fluid power distributors seeking reliable high pressure hose solutions

Detailed Technical Specifications Table

Download complete SAE 100 R2 hose specifications PDF for detailed engineering data

Structure and Materials

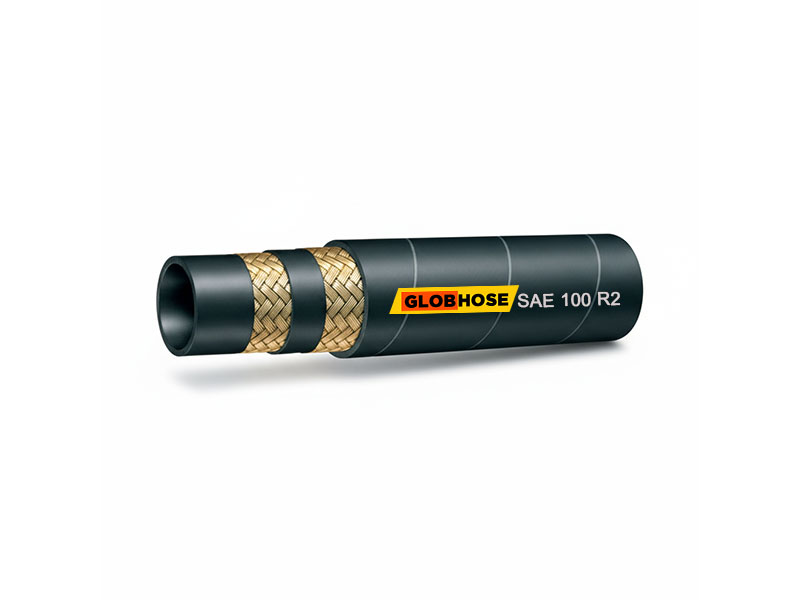

Tube Layer: The innermost layer consists of high-quality oil-resistant synthetic rubber, specifically formulated to handle petroleum-based hydraulic fluids without degradation or swelling. This tube ensures minimal fluid friction, prevents oil leakage, and maintains consistent flow characteristics throughout the hose service life. The synthetic rubber compound provides excellent compatibility with hydraulic oils, lubricating oils, and diesel fuels typically found in mobile and industrial equipment.

Reinforcement Layer: Two layers of high tensile braided steel wires form the critical pressure-bearing component of this wire braided hose. These steel wires are precisely braided at optimized angles to balance radial and axial forces during pressure cycles. The double braid construction delivers exceptional burst pressure resistance while maintaining necessary flexibility for installation in confined spaces. This reinforcement structure distinguishes SAE 100 R2 from single wire braid hoses like SAE 100 R1, providing approximately double the working pressure capability.

Cover Layer: The outer protection comprises high-quality synthetic rubber engineered to resist weather, ozone, corrosion, abrasion, aging, sunlight, and cutting. This durable cover extends hose life in harsh outdoor environments and protects the steel reinforcement from moisture and chemical exposure. The cover’s abrasion resistance proves particularly valuable in mobile equipment where hoses may contact other machine components during operation.

Why Choose Two-Wire Braid Construction?

The two-wire braid design in SAE 100 R2 hydraulic hose represents an engineering optimization for medium to high pressure applications. Each steel wire layer is braided at specific angles (typically 54°44′) to achieve neutral reinforcement under pressure, meaning the hose neither elongates nor contracts significantly when pressurized. This braid angle calculation balances hoop stress (circumferential) and longitudinal stress, resulting in a hose that maintains dimensional stability throughout pressure cycles. The double layer construction also provides redundancy—if one wire experiences localized stress concentration, the second layer maintains structural integrity, significantly enhancing safety margins in critical applications.

Fluid Compatibility Details

Application Industries

Primary Application Equipment

• Construction Machinery: Excavators, bulldozers, wheel loaders, dump trucks, concrete pump trucks, and road rollers rely on SAE 100 R2 hydraulic hose for boom cylinders, swing motors, and travel drives

• Agricultural Equipment: Farm tractors, combine harvesters, balers, sprayers, and agricultural implements use this hose for hydraulic steering, implement lift cylinders, and auxiliary functions

• Mining Operations: Underground loaders, drill rigs, continuous miners, and roof bolters demand the rugged durability of two-wire braid construction in abrasive mining environments

• Industrial Hydraulics: Injection molding machines, hydraulic presses, steel mill equipment, and material handling systems benefit from reliable pressure transmission

• Forestry Equipment: Log loaders, harvesters, and forestry cranes operate in remote locations where hose failure means costly downtime

• Marine Applications: Deck machinery, steering systems, and hydraulic cranes on vessels require corrosion-resistant components

Precision Selection Professional Guide

Understanding SAE 100 R2 Variations

SAE 100 R2 hydraulic hose exists in two primary types: Type A (standard cover) and Type AT (thin cover with increased flexibility). Type AT maintains identical pressure ratings while offering reduced outer diameter and weight, making it ideal for tight routing applications where space constraints exist. When selecting between standard R2 and R2AT, consider installation space, required bend radius, and weight limitations of your equipment.

Complete Hose Assembly Solutions

A SAE 100 R2 hydraulic hose becomes a functional component only when properly terminated with appropriate fittings. Our factory offers comprehensive hose assembly services including:

• Crimped Fittings: Permanent attachment using precision crimping machines ensuring consistent compression and leak-free connections

• Reusable Fittings: Field-attachable fittings allowing on-site repairs without specialized equipment

• Adapters and Flanges: Comprehensive range of JIC, NPT, BSP, ORFS, and flange connections for system integration

• Protective Sleeves and Guards: Additional abrasion protection for extreme applications

Factory-preassembled hoses undergo 100% pressure testing, ensuring each assembly meets specified working pressure requirements before shipment. This eliminates field assembly errors and guarantees reliable performance.

SAE 100 R2 vs. Alternative Constructions

The double wire braid construction of SAE 100 R2 provides the optimal balance of pressure capacity, flexibility, and cost for the majority of mobile and industrial hydraulic applications.

Industry Pain Point Solutions

Excavator Boom Hose Failure: Frequent boom hose failures typically result from pressure spikes during sudden directional changes and mechanical stress from hose movement. SAE 100 R2 construction absorbs these pressure peaks through its double wire reinforcement, while proper hose assembly routing with protective sleeves minimizes mechanical wear. The -40°C low-temperature capability ensures cold morning starts don’t cause brittle cracking.

Mining Equipment Reliability: Underground mining operations demand absolute reliability—a single hose failure can halt production for hours. SAE 100 R2’s abrasion-resistant cover withstands constant contact with rock and coal, while the oil-resistant tube prevents internal degradation from fire-resistant hydraulic fluids common in mining. Regular replacement scheduling based on operating hours prevents unexpected failures.

Technical Standards and Certifications

SAE 100 R2 hydraulic hose conforms to multiple international standards ensuring global acceptance and interchangeability:

• SAE J517: The primary Society of Automotive Engineers standard defining 100R2 requirements

• ISO 1436: International standard for wire braid reinforced rubber hoses

• EN 853 2SN: European equivalent specification with identical performance requirements

• GB/T 3683-2011: Chinese national standard for wire braid hydraulic hoses

Certifications available include:

• ISO 9001:2015 quality management system certification from our China manufacturing facilities

• DNV and ABS type approval for marine applications

• MSHA flame resistance certification for mining applications

• REACH and RoHS compliance for environmental requirements

Brand and Quality Assurance

Manufacturing Excellence in China

As a leading SAE 100 R2 hydraulic hose manufacturer in China, our production facilities implement rigorous quality control at every manufacturing stage. Our experience spans over two decades of rubber hose production, serving global markets with consistent quality and reliable supply.

Quality Management Process

Raw Material Inspection: Every batch of synthetic rubber compounds undergoes rheometer testing to verify cure characteristics, while high tensile steel wire is tensile-tested to confirm strength specifications before production release.

In-Process Monitoring: Continuous online monitoring during tube extrusion, wire braiding, and cover application ensures dimensional accuracy and reinforcement consistency. Our wire braiding machines maintain precise tension control, preventing loose braids that could compromise pressure capacity.

100% Factory Testing: Each production length undergoes proof pressure testing at 50% of minimum burst pressure, verifying structural integrity before packaging. Random samples from every production batch complete full burst testing to validate safety margins.

Laboratory Verification: Our in-house laboratory conducts pulse testing per ISO 6803 standards, subjecting hoses to over 200,000 pressure cycles at elevated temperatures to validate long-term durability. Chemical immersion testing confirms fluid compatibility across the specified fluid range.

Third-Party Validation

Regular independent testing by recognized laboratories confirms our SAE 100 R2 hydraulic hose meets or exceeds all specified requirements. Test reports are available for download, providing transparent verification of performance claims.

Sustainability Commitment

Our SAE 100 R2 production utilizes environmentally optimized compounds meeting RoHS and REACH restrictions on hazardous substances. The long service life of our hoses reduces replacement frequency, minimizing waste generation. At end of life, the steel wire reinforcement is fully recyclable, and rubber components can be processed for energy recovery.

Installation, Operation, and Maintenance Guide

Proper Installation Practices:

1. Verify correct hose size selection using the specification table above

2. Inspect hose for any shipping damage before installation

3. Ensure bend radius never falls below minimum specified values

4. Allow sufficient slack for length changes under pressure (typically ±2%)

5. Use appropriate hose clamps and supports every 24-36 inches

6. Avoid twisting during installation—mark hose centerline to detect twisting

7. Protect from external heat sources using appropriate guards

Operational Guidelines:

• Monitor operating temperature—prolonged operation at maximum temperature reduces service life

• Watch for signs of cover abrasion indicating improper routing

• Check fittings for signs of leakage during routine inspections

• Replace hoses showing cover cracking, blistering, or soft spots

Maintenance Schedule Recommendations:

• Daily: Visual inspection for leaks, damage, or unusual movement

• Monthly: Check torque on reusable fittings

• Annually: Pressure test critical circuits

• Every 5 years: Consider replacement regardless of condition in continuous service applications

Frequently Asked Questions

Q: What is the definition of SAE 100 R2 hydraulic hose?
A: SAE 100 R2 is a SAE J517 standard specification for double wire braid reinforced rubber hose used in high pressure hydraulic applications with petroleum-based fluids.

Q: Where can I buy SAE 100 R2 hydraulic hose near me?
A: SAE 100 R2 is available through hydraulic distributors worldwide. Contact our sales team for immediate supply options and local distributor references.

Q: What is the SAE 100 R2 pressure rating?
A: Pressure ratings vary by size, ranging from 7.8 MPa (1130 psi) for 2-inch to 35 MPa (5075 psi) for smaller diameters. See our complete specification table for size-specific ratings.

Q: Can I get SAE 100 R2 with female or male fittings?
A: Yes, we supply SAE 100 R2 hose assemblies with any combination of female, male, JIC, NPT, BSP, or flange fittings per your requirements.

Q: What is the difference between SAE 100 R2 and SAE 100 R2AT?
A: R2AT features a thinner cover for reduced weight and increased flexibility while maintaining identical pressure ratings. Standard R2 offers maximum abrasion protection.

Q: Do you offer SAE 100 R2 hose in bulk for wholesale?
A: Yes, we supply SAE 100 R2 in bulk reels, cut lengths, or complete assemblies with significant wholesale discounts for volume purchases.

Q: What is the SAE 100 R2 minimum bend radius?
A: Minimum bend radius ranges from 90mm for 3/16″ size to 630mm for 2″ size. Never bend beyond these limits to prevent kinking and pressure capacity reduction.

Q: Where can I download SAE 100 R2 hose specifications PDF?
A: Complete technical specifications are available for download through our website or by contacting our engineering department.

Ready to source reliable SAE 100 R2 hydraulic hose for your operations? Contact our hydraulic specialists today for competitive pricing, technical support, and rapid global shipping. Whether you need a single replacement hose or bulk wholesale quantities, we provide complete solutions including custom hose assemblies, fitting selection guidance, and installation support. Request your quotation now and experience why leading equipment manufacturers trust our SAE 100 R2 hydraulic hose for their most demanding applications.
