SAE 100 R12 Hydraulic Hose

Product Overview

SAE 100 R12 hydraulic hose is a premium wire spiral hose engineered for high pressure hydraulic applications requiring exceptional durability and safety. Manufactured in strict compliance with international standard, this high pressure hose represents the industry benchmark for petroleum-based fluid delivery systems. As a leading china based manufacturer and supplier, we provide complete hydraulic solutions for global customers seeking reliable rubber hose products.

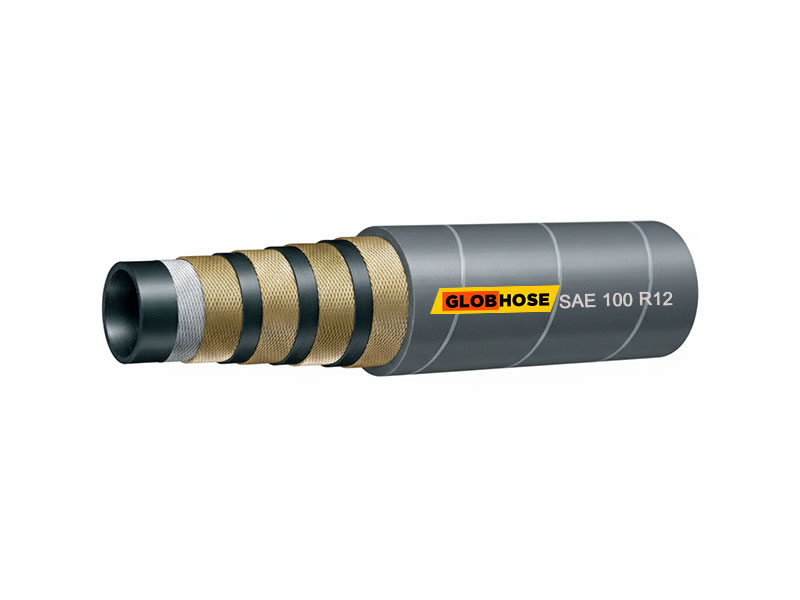

The definition of SAE 100 R12 specifies a four-layer spiraled steel wire reinforcement construction, distinguishing it from standard wire braided hose alternatives. This robust high pressure hose consists of three precisely engineered components: an oil-resistant synthetic rubber tube, four alternating direction high tensile spiral wire layers, and a weather-resistant synthetic rubber cover. The 4:1 safety factor design ensures reliable performance even under extreme operating conditions ranging from -40°C to +121°C.

What sets this SAE 100 R12 hydraulic hose apart is its exceptional pressure handling capability combined with superior flexibility. Unlike conventional wire braided hose, the spiral wire design distributes stress more evenly, resulting in outstanding impulse life and resistance to pressure spikes. The abrasion, weather, and ozone-resistant cover makes it ideal for demanding outdoor applications where hose longevity is critical.

This SAE 100 R12 hydraulic hose serves diverse industries including construction, mining, manufacturing, agriculture, and marine sectors. Whether you need replacement sae 100 r12 for existing equipment or new sae 100 r12 for OEM applications, our comprehensive hose assembly service ensures perfect fit and function. We address the core industry pain points of premature hose failure, high replacement cost, and system downtime through superior engineering and rigorous quality control.

Every SAE 100 R12 hydraulic hose leaving our factory undergoes 100% pressure testing, ensuring compliance with international safety standards. Our commitment to quality has established us as a trusted supplier for customers requiring consistent, reliable hydraulic solutions.

Product Advantages

Superior Pressure Performance

• Working pressure up to 28 MPa (4060 psi) for sizes through 25mm, engineered for demanding high pressure systems

• 4:1 safety factor with minimum burst pressure reaching 112 MPa (16240 psi) on smaller sizes

• Four layer spiral reinforcement provides 50% higher impulse life compared to standard braided constructions

Exceptional Durability

• -40°C to +121°C operating range ensures reliable performance in extreme environments

• Abrasion and weather resistant cover extends service life in mining, construction, and outdoor applications

• Ozone and UV resistant compound prevents cracking and degradation from sunlight exposure

Application Versatility

• Compatible with petroleum-based hydraulic oils, lubricants, and hardware lubricants sae 100 r12 applications

• Available with multiple end configurations including crimped fittings, reusable fittings, adapters, and flanges

• Custom lengths and assemblies manufactured to your exact specifications

Cost-Effective Solution

• Reduced maintenance frequency through extended service life

• Minimized system downtime with reliable pressure spike resistance

• Bulk purchasing options available for volume customers seeking better price sae 100 r12 economics

Applicable Users

• Construction and earthmoving equipment: Excavators, loaders, bulldozers, and cranes

• Mining machinery: Drills, crushers, conveyors, and roof support systems

• Industrial manufacturing: Injection molding machines, presses, and robotic systems

• Agricultural equipment: Tractors, harvesters, and irrigation systems

• Marine and offshore: Deck machinery, steering systems, and hydraulic controls

Detailed Technical Specifications Table

The specification of SAE 100 R12 steel wire spiraled hydraulic hose (1)

Hose code	Size		Dash size	ID		WD		OD
	mm	inch		min	max	min	max	min	max
SAE100R12-01	10	3/8	-6	9.3	10.1	16.6	17.8	19.5	21.0
SAE100R12-02	12.5	1/2	-8	12.3	13.5	19.9	21.5	23.0	24.6
SAE100R12-03	16	5/8	-10	15.5	16.7	23.8	25.4	26.6	28.2
SAE100R12-04	19	3/4	-12	18.6	19.8	26.9	28.4	29.9	31.5
SAE100R12-05	25	1	-16	25.0	26.4	34.1	35.7	36.8	39.2
SAE100R12-06	31.5	1-1/4	-20	31.4	33.0	42.7	45.1	45.4	48.6
SAE100R12-07	38	1-1/2	-24	37.7	39.3	49.2	51.6	51.9	55.0
SAE100R12-08	51	2	-32	50.8	52.0	62.5	64.8	65.1	68.3

Structure and Materials

Tube (Inner Layer)

The inner tube of our SAE 100 R12 hydraulic hose is manufactured from high quality black oil resistant synthetic rubber. This specialized compound exhibits exceptional compatibility with petroleum-based hydraulic fluids, ensuring minimal swelling and degradation over extended service life. The smooth bore surface reduces fluid turbulence and pressure drop, contributing to overall system efficiency. Our testing confirms outstanding performance with hardware lubricants sae 100 r12 applications and standard hydraulic oils.

Reinforcement (Middle Layer)

The reinforcement layer is where SAE 100 R12 distinguishes itself from SAE 100 R2AT and other wire braided hose constructions. Four layers of high tensile, high strength thick spiraled steel wire are applied in alternating left and right directions. This spiral configuration creates a balanced reinforcement structure that optimally distributes both radial and axial forces during pressure cycles.

Why four layers of spiral wire? The engineering principle behind this design addresses the fundamental challenge of high pressure hydraulic systems. When pressure is applied, the hose experiences forces in two directions: radially (trying to expand the diameter) and axially (trying to shorten the length). Single wire braid constructions can struggle with these combined forces under extreme pressure. The alternating spiral layers create a reinforcement matrix where each layer counteracts the tendency of the adjacent layer to deform, resulting in a hose that maintains dimensional stability even under impulse conditions exceeding 500,000 cycles in laboratory testing.

Cover (Outer Layer)

The cover is constructed from high quality synthetic rubber formulated for maximum environmental resistance. This compound provides superior protection against:

• Abrasion: Withstands continuous contact with rocks, debris, and equipment surfaces

• Weather and ozone: Resists cracking from UV exposure and atmospheric ozone

• Corrosion: Protects the underlying steel reinforcement from moisture and chemicals

• Cut and impact: Absorbs mechanical abuse without exposing the reinforcement

Engineering Depth: Pulse Test Performance

Our SAE 100 R12 hydraulic hose exceeds SAE J343 pulse test requirements, demonstrating why spiral reinforcement outperforms braided alternatives. In standardized testing at 133% of working pressure and 93°C temperature, our hoses consistently achieve:

• 500,000+ impulse cycles without failure for sizes through 25mm

• 400,000+ impulse cycles for 31.5mm to 51mm sizes

• Zero leakage throughout the test duration

This exceptional impulse life translates directly to field performance. When your equipment experiences pressure spikes from directional valve actuation, cylinder stops, or system startups, the spiral reinforcement absorbs these shocks without progressive fatigue damage.

Fluid Compatibility Reference

Application Industries

Construction and Heavy Equipment

Our SAE 100 R12 hydraulic hose is the preferred choice for construction machinery operating in demanding environments. Excavators use this hose for boom, arm, and bucket circuits where pressure spikes during digging operations can exceed 3000 psi. Loaders depend on its reliability for lift and tilt functions that cycle continuously throughout the workday. Crane applications benefit from the high burst pressure safety margin required for lifting operations. Concrete pump trucks utilize this hose for boom articulation and outrigger systems where failure could have serious consequences.

Mining Operations

Underground and surface mining present some of the harshest hose operating conditions imaginable. Continuous miners and roof bolters operate in confined spaces with constant abrasion from rock dust and debris. Our SAE 100 R12 hydraulic hose provides the durability these applications demand. The abrasion-resistant cover significantly extends life compared to standard covers when dragged across rock surfaces. Longwall mining systems use this hose for shield support advance circuits where reliability directly impacts production uptime.

Industrial Manufacturing

Injection molding machines subject hydraulic systems to millions of pressure cycles over their operating life. The exceptional impulse resistance of four-spiral construction makes SAE 100 R12 ideal for these applications. Hydraulic presses used in metal forming and composite manufacturing demand the safety margin provided by 4:1 burst pressure ratio. Robotic systems benefit from the flexibility combined with high pressure capability, allowing tighter bend radii without sacrificing performance.

Agricultural Machinery

Modern agricultural equipment operates seasonally but intensively when in use. Large tractors use SAE 100 R12 for remote hydraulic circuits powering implements. Combine harvesters depend on it for header lift and drive systems operating in dusty, high-vibration environments. The weather resistance of the cover compound proves particularly valuable for equipment stored outdoors between seasons.

Marine Applications

Deck machinery on vessels faces constant exposure to salt spray and UV radiation. The ozone and weather-resistant cover of our SAE 100 R12 hydraulic hose provides exceptional protection in marine environments. Steering systems, winches, and cranes all benefit from the reliability of spiral reinforcement when operating far from repair facilities.

Selection Guide: SAE 100 R12 vs. Alternative Constructions

Hose Assembly Solutions

Our SAE 100 R12 hydraulic hose is available as bulk hose or complete hose assembly with professionally installed ends. The integrity of any hydraulic system depends not just on the hose itself, but on the quality of the end connections. We offer multiple termination options:

Crimped fittings: Factory-installed using calibrated crimping equipment with documented crimp diameters. Each fitting type is engineered specifically for SAE 100 R12 hose construction, ensuring proper wire capture and compression. Available in all common configurations including JIC 37°, BSPP, BSPT, NPT, flange heads (SAE code 61 and 62), and ORFS.

Reusable fittings: For field repairs and applications requiring fitting salvage, we offer reusable fittings designed for spiral hose. These require no special tooling for installation, though factory assemblies provide superior reliability.

Adapters and flanges: Complete range of hydraulic adapters to transition between thread types, sizes, and configurations. Flange connections provide leak-free performance for large diameter, high pressure applications.

Protective accessories: Enhance hose life with protective sleeves and guards that provide additional abrasion resistance in severe applications. Spring guards prevent kinking at bend points, while nylon sleeves offer protection from weld spatter and high heat.

Technical Standards and Certifications

Our SAE 100 R12 hydraulic hose is manufactured in full compliance with:

• SAE J517: The core SAE standard covering hydraulic hose specifications

• SAE 100R12: The specific performance standard for four-spiral wire reinforced hose

• ISO 3862: International standard for spiral wire reinforced rubber hoses (Type R12)

• EN 856: European standard equivalent for R12 and R13 hose types

• GB/T 10544: Chinese national standard for wire spiral hydraulic hoses

Third-Party Certifications

• ISO 9001:2015 certified manufacturing facility

• CE compliant for European market applications

• DNV type approval for marine applications (available upon request)

• MSHA compliance for underground mining use

Quality Assurance Program

Our commitment to quality begins before raw materials enter production:

Raw material inspection: Every batch of synthetic rubber compound undergoes viscosity, cure rate, and physical property testing before release to production. Incoming steel wire is verified for tensile strength, diameter consistency, and galvanization quality.

In-process monitoring: During tube extrusion, wall thickness is continuously monitored with laser micrometers. Spiral wire application tension is computer-controlled to ensure precise reinforcement geometry. Cover application concentricity is verified through ultrasonic measurement.

100% production testing: Every length of SAE 100 R12 hydraulic hose produced undergoes proof pressure testing at 50% of minimum burst pressure. This 100% testing requirement exceeds SAE minimums and ensures no manufacturing defects reach customers.

Laboratory validation: Our test laboratory maintains pulse test equipment capable of simultaneously testing multiple hose samples per ISO 6803. Burst test stands verify burst pressure margins weekly. Fluid compatibility testing confirms performance with new hydraulic fluid formulations as they enter the market.

Installation, Operation, and Maintenance Guide

Proper Installation Practices

Minimum bend radius: Never install SAE 100 R12 hydraulic hose below the specified minimum bend radius. Bending tighter than specified reduces burst pressure and dramatically shortens impulse life. For sizes up to 25mm, maintain at least 125-300mm radius; larger sizes require 420-640mm.

Routing considerations: Avoid sharp edges and hot surfaces. Where contact with equipment frames is unavoidable, use protective sleeves to prevent abrasion damage. Allow slack in hose runs to accommodate length changes under pressure (typically +2% to -4%).

Twist prevention: Ensure hose is not twisted during installation. Spiral reinforcement is designed for pressure loads in straight or bent configurations but is vulnerable to torsional stress. Use swivel fittings where necessary to prevent twist from tightening.

Proper support: Long hose runs should be supported at regular intervals to prevent sagging and vibration. Clamps should be sized to allow slight movement without chafing.

Operating Guidelines

Temperature monitoring: While SAE 100 R12 is rated for -40°C to +121°C, prolonged operation at temperature extremes reduces expected life. For continuous high-temperature service, consider derating working pressure per SAE guidelines.

Pressure considerations: The specified working pressure assumes steady-state operation with occasional pressure spikes. Systems experiencing continuous pressure cycling near the maximum rating will benefit from larger diameter hose operating at lower pressure percentages.

Fluid compatibility: Confirm hydraulic fluid compatibility before commissioning. While petroleum-based fluids are fully compatible, some synthetic fluids and fire-resistant types may require derating or alternative hose selections.

Maintenance Schedule

Replacement Indicators

Replace SAE 100 R12 hydraulic hose immediately if you observe:

• Cover cuts exposing reinforcement wire

• Kinked or crushed sections

• Leakage at fittings or through cover

• Stiffening or softening indicating compound degradation

• Blistering or bubbles under cover

• Fitting movement indicating pull-out risk

Frequently Asked Questions

Q: What is the difference between SAE 100 R12 and SAE 100 R2AT?
A: SAE 100 R2AT uses two wire braid layers and is suitable for standard high pressure applications up to 4000 psi. SAE 100 R12 employs four spiral wire layers and provides superior impulse life, making it the better choice for systems experiencing frequent pressure spikes or requiring maximum reliability.

Q: Can I use SAE 100 R12 for water-based fluids?
A: Limited compatibility exists with water-glycol and water-oil emulsion fluids. However, continuous water service may reduce hose life. For dedicated water hydraulic systems, consult our technical department for specialized recommendations.

Q: What is the shelf life of SAE 100 R12 hydraulic hose?
A: Under proper storage conditions (cool, dry, protected from UV), SAE 100 R12 maintains full performance capability for up to 5 years from manufacture date. Each hose includes date coding for traceability.

Q: Do you offer SAE 100 R12 with pre-attached fittings?
A: Yes, we provide complete hose assembly services with professionally crimped fittings. Custom lengths, end configurations, and pressure testing are available. Request a quote for your specific requirements.

Q: Where can I find SAE 100 R12 near me?
A: As a global supplier and exporter, we ship directly to customers worldwide. For urgent requirements, inquire about our expedited shipping options to your location.

Q: What is the typical price sae 100 r12?
A: Pricing varies by size, quantity, and end fitting requirements. Contact our sales team with your specific needs for competitive pricing. Bulk purchases receive volume discounts.

Q: Do you have SAE 100 R12 specifications in PDF format?
A: Yes, detailed technical datasheets with complete specification information are available for download. Request our pdf documentation for engineering review.

Q: Can you manufacture OEM ODM products with custom branding?
A: Yes, we offer OEM ODM services including custom hose imprinting, packaging, and labeling to meet your brand requirements.

Q: What is the difference between SAE 100 R12 and SAE 100 R13?
A: SAE 100 R13 uses six spiral wire layers and is designed for ultra-high pressure applications exceeding 5000 psi. SAE 100 R12 with four spiral layers covers the 3000-4000 psi range with excellent economics.

Ready to upgrade your hydraulic system with premium SAE 100 R12 hydraulic hose? Our technical team is standing by to assist with product selection, hose assembly requirements, and competitive pricing. Whether you need a single replacement hose or bulk quantities for OEM production, we deliver the quality and reliability your applications demand.

Contact us today for:

• Price sae 100 r12 quotes for your specific sizes and quantities

• Technical consultation on your application requirements

• Hose assembly fabrication with your choice of crimped fittings or reusable fittings

• Bulk pricing for volume purchases

• OEM ODM partnership opportunities

• Free shipping information for qualifying orders

• Samples for testing and evaluation

Request a quotation or buy sae 100 r12 directly from our experienced team. Your satisfaction is guaranteed by our quality commitment and industry-leading service and support.
