SAE 100 R17 Hydraulic Hose

Product Overview

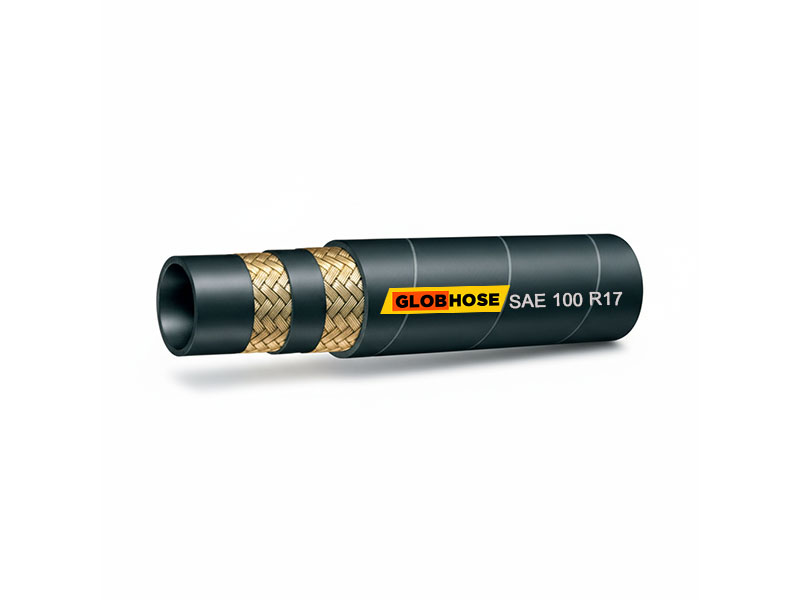

The SAE 100 R17 hydraulic hose represents a specialized steel wire reinforced rubber hose designed for hydraulic systems with compact installation spaces. As a China leading manufacturer and supplier, we define this product according to strict international standard requirements, offering solutions where smaller bending radius and outside diameter are critical factors. This hydraulic hose features three distinct layers: an oil-resistant synthetic rubber tube, one or two layers of high tensile braided steel wire reinforcement, and a weather-resistant synthetic rubber cover. The working temperature ranges from -40°C to +100°C, with working pressure rated at 21 MPa, proof pressure at 42 MPa, and minimum burst pressure at 84 MPa. Key advantages include exceptional flexibility for tight spaces, high pressure capability through steel wire reinforcement, superior abrasion and weather resistance, and extended service life due to high-quality materials. The sae 100r17 hose finds applications in construction equipment, agricultural machinery, mining operations, industrial automation, and mobile hydraulics where space constraints demand compact hose solutions. It solves the core industry pain points of premature hose failure in tight installations, difficulty routing in confined equipment compartments, and reliability concerns under continuous pressure cycles. Every hose undergoes rigorous quality testing, and our factory maintains ISO certification ensuring consistent performance.

Product Advantages

Core Strengths

Compact Design Excellence: The SAE 100 R17 features a smaller outside diameter compared to traditional hoses, enabling installation in the most confined spaces without sacrificing performance.

High Pressure Integrity: With one or two layers of high tensile braided steel wire, this wire braided hose delivers reliable operation at 21 MPa working pressure, suitable for demanding hydraulic applications.

Superior Weather Resistance: The specially formulated synthetic rubber cover provides outstanding protection against ozone, UV radiation, abrasion, corrosion, and aging, making it ideal for outdoor equipment exposure.

Extended Service Life: The combination of high-quality materials and precision manufacturing results in a high pressure hose that withstands repeated pressure cycles and harsh environmental conditions.

Flexibility Without Compromise: Despite its robust construction, the hose maintains excellent flexibility, simplifying routing and reducing installation time.

Applicable Users

The sae 100r17 hose serves equipment manufacturers, maintenance professionals, hydraulic system integrators, and industrial distributors requiring reliable fluid power transmission. Construction machinery operators benefit from its durability in excavators and loaders. Agricultural equipment users appreciate its weather resistance in tractors and harvesters. Mining operations value its pressure retention in hydraulic supports and drilling rigs. Manufacturing facilities utilize it in injection molding machines and presses where space optimization matters.

Detailed Technical Specifications Table

Structure and Materials

Inner Tube Layer

The SAE 100 R17 hydraulic hose inner tube utilizes black oil-resistant synthetic rubber specifically formulated for hydraulic fluid compatibility. This material ensures minimal fluid absorption, low flow resistance, and excellent sealing properties against common hydraulic oils. Our testing confirms outstanding performance with mineral oils, water-glycol fluids, and synthetic hydraulic media.

Reinforcement Layer

The sae 100r17 hose specification calls for one or two layers of high tensile braided steel wire. This construction method provides optimal balance between pressure resistance and flexibility. The braided steel wire reinforcement distributes internal pressure forces evenly, preventing localized stress concentrations that could lead to premature failure. Each wire strand meets strict tensile strength requirements, ensuring consistent burst pressure performance across all sizes.

Outer Cover Layer

The cover consists of super high-quality weather-resistant synthetic rubber engineered for extreme environmental exposure. This layer demonstrates exceptional resistance to abrasion from equipment movement, corrosion from industrial chemicals, weathering from UV exposure, ozone cracking, and mechanical cuts. Field experience shows that this cover significantly extends service life compared to standard rubber compounds.

Application Industries

Primary Application Scenarios

Construction Equipment: Excavators, loaders, bulldozers, and concrete pump trucks utilize the SAE 100 R17 for hydraulic circuits where space constraints demand compact hose routing. The smaller bending radius enables installation around tight corners in equipment frames.

Agricultural Machinery: Tractors, combines, sprayers, and balers benefit from the weather-resistant cover that withstands continuous outdoor exposure, UV radiation, and contact with agricultural chemicals.

Mining Operations: Underground mining equipment, roof support systems, and drilling rigs require reliable hydraulic performance. The robust construction of sae 100r17 8 and other sizes ensures safety in demanding mining environments.

Industrial Manufacturing: Injection molding machines, hydraulic presses, die casting equipment, and automated production lines depend on consistent hydraulic power delivery from this rubber hose.

Material Handling: Forklifts, aerial work platforms, and mobile cranes utilize the flexibility and pressure rating for lifting and positioning applications.

Marine Applications: Deck machinery, steering systems, and hydraulic controls on vessels benefit from the corrosion-resistant cover properties.

Precise Selection Professional Guide

Hose Assembly Solutions

The SAE 100 R17 hydraulic hose integrates seamlessly with various crimped fittings and reusable fittings to create complete hose assembly solutions. Proper fitting selection ensures leak-free connections and maximum service life. Available adapters and flanges facilitate connection to different port types including BSP, NPT, JIC, and ORFS configurations. For applications requiring additional protection, protective sleeves and guards can be applied to prevent abrasion in high-wear areas.

Comparative Analysis

The sae 100r17 occupies a unique position in hydraulic hose standards. When compared to sae 100 r2at, it offers smaller outside diameter while maintaining comparable pressure ratings. Unlike sae 100 r16, the R17 construction provides enhanced flexibility specifically optimized for compact installations. The relationship with sae j517 ensures global acceptance and interchangeability. For applications considering sae 100 r1at or sae 100 r1 specifications, the sae 100r17 often provides superior performance in limited-space installations while maintaining cost-effectiveness.

Technical Considerations

Our engineering team has documented extensive field experience with the SAE 100 R17 in challenging applications. The 4:1 safety factor between working pressure and minimum burst pressure ensures reliable operation even under unexpected pressure spikes. The working temperature range of -40°C to +100°C covers most global operating environments from arctic conditions to tropical heat. For bulk hose purchases, our factory maintains consistent quality across production runs, ensuring that every meter meets the published specification.

Technical Standards and Certifications

The SAE 100 R17 hydraulic hose conforms to SAE J517 standard requirements, ensuring global compatibility and interchangeability. Our manufacturer facility holds ISO 9001 certification, demonstrating commitment to quality management systems. Each production batch undergoes rigorous testing including hydrostatic pressure verification, burst pressure validation, and impulse cycle testing according to international protocols. We provide comprehensive test reports and pdf documentation upon request, enabling customers to verify performance characteristics before installation.

The relationship with norma sae 100 r17 ensures that our products meet or exceed industry expectations for dimensional accuracy and pressure retention. For international markets, including Latin America where mangueira sae 100 r17 and manguera sae 100 r17 terminology is common, and European markets familiar with tubo sae 100 r17 references, our documentation provides clear cross-reference information.

Brand and Quality Assurance

Quality Management System

As a professional China based supplier and exporter, we maintain comprehensive quality control throughout the manufacturing process. Raw material inspection verifies that incoming rubber compounds and steel wire meet our strict acceptance criteria. During production, continuous monitoring ensures consistent wall thickness, proper wire braid tension, and uniform cover application. Every finished hose undergoes pressure testing before release, and our laboratory conducts random sampling for burst testing, impulse cycling, and fluid compatibility verification. This commitment to quality makes us a preferred source for international clients seeking reliable supply partners.

Third-Party Verification

Our SAE 100 R17 hydraulic hose has been tested by independent laboratories confirming compliance with SAE specifications. We maintain traceability from raw materials to finished product, with batch numbers enabling complete production history review. For customers requiring specific testing protocols, we offer customized verification services.

OEM ODM Capabilities

As a flexible producer, we support OEM ODM requirements including custom labeling, packaging options, and special compound formulations. Our technical team collaborates with clients to develop solutions for unique application requirements, whether modifying dimensions, adjusting compound properties, or creating complete hose assembly packages with fittings and accessories.

Installation, Operation, and Maintenance Guide

Proper installation of sae 100r17 hose significantly extends service life and prevents premature failure. Observe minimum bend radius requirements during routing—never force the hose into positions tighter than specified. Use appropriate clamps and supports for long hose runs to prevent movement and abrasion. When installing hose assembly configurations, ensure that fittings are correctly oriented to avoid twisting stress. Regular inspection should check for cover damage, fluid leakage, or fitting corrosion. For systems with reusable fittings, follow manufacturer torque specifications during reassembly. In applications with high external abrasion risk, apply protective sleeves to vulnerable sections. Store unused hose in cool, dry conditions away from direct sunlight and ozone sources such as electric motors.

Frequently Asked Questions

What is the definition of SAE 100 R17 hydraulic hose?
The SAE 100 R17 is a compact hydraulic hose standard featuring smaller outside diameter and tighter bend radius than conventional hoses, making it ideal for space-constrained installations.

How does SAE 100 R17 compare to SAE 100 R16?
Both are compact designs, but sae 100r17 typically offers improved flexibility and specific dimensional characteristics optimized for modern equipment layouts.

Can I use this hose with petroleum-based fluids?
Yes, the oil-resistant synthetic rubber tube is compatible with standard hydraulic oils, lubricating oils, and petroleum-based fluids within the specified temperature range.

What fitting types work best with SAE 100 R17?
Crimped fittings designed specifically for R17 dimensions provide optimal performance, though reusable fittings with proper sizing can also be used.

Do you offer custom hose assembly services?
Yes, our factory provides complete hose assembly services including cutting, skiving, fitting attachment, pressure testing, and labeling.

Contact our technical sales team today for SAE 100 R17 hydraulic hose pricing, bulk order discount, or specification assistance. Whether you need standard lengths, custom hose assembly configurations, or technical support for your hydraulic application, we provide comprehensive service and support. Request a quote or download complete technical pdf documentation from our website. As a trusted China manufacturer and supplier, we offer competitive price without compromising quality. Partner with us for reliable supply of high pressure hose solutions that meet your exact requirements. Email us now for immediate assistance.
