SAE 100 R5 Hydraulic Hose

Product Overview

SAE 100 R5 hydraulic hose is a premium steel wire reinforced rubber hose engineered for medium pressure hydraulic systems, fuel delivery, and air brake applications in commercial vehicles and industrial equipment. This SAE 100 R5 hydraulic hose meets the stringent SAE J517 100 R5 standard, defining it as a versatile solution for petroleum-based oils, lubricating oils, overheating lubricating oil, and water-air piping systems.

The SAE 100 R5 hose features a three-layer construction: an oil-resistant black synthetic rubber tube, a single high tensile steel wire braid reinforcement layer, and a weather-resistant braided fiber cover. With a working temperature range of -40°C to +100°C and available in sizes from 3/16 inch to 3 inch (Dash sizes -3 to -48), this rubber hose delivers exceptional performance where medium pressure reliability matters.

Key performance highlights include working pressures up to 21.0 MPa (3045 psi) for smaller diameters, a 4:1 safety factor with minimum burst pressures reaching 84 MPa, and excellent flexibility with minimum bend radii as low as 75 mm. The wire braided hose construction provides superior structural integrity while maintaining installation-friendly flexibility.

Core advantages of this SAE 100R5 hose:

• Medium pressure capability perfectly matched to heavy vehicle and industrial hydraulic systems

• Multi-fluid compatibility handling oils, air, water, and fuel applications

• Weather and ozone resistant cover for reliable outdoor performance

• Cost-effective construction combining steel wire strength with fiber cover protection

Primary applications include air brake systems, power steering units, fuel filter lines, turbocharger connections, and hydraulic cylinders in heavy commercial vehicles, plus general industrial medium pressure hydraulic circuits.

This SAE 100 R5 hydraulic hose solves critical operational problems: premature hose failure from oil degradation, weather-related cover cracking, and compatibility issues when switching between different fluid types in multi-purpose equipment.

Quality commitment: Every SAE 100R5 hose is manufactured in an ISO-certified facility, pressure tested to verify integrity, and fully traceable with complete sae 100r5 specifications documentation available in pdf format upon request.

Product Advantages

Superior Medium Pressure Performance
Engineered specifically for applications requiring reliable performance at medium pressures, this SAE 100R5 delivers consistent operation across its entire pressure range. The single wire braid reinforcement provides optimal strength-to-weight ratio for vehicle and industrial applications.

Exceptional Fluid Compatibility
The oil-resistant synthetic rubber tube ensures excellent performance with petroleum-based hydraulic oils, lubricating oils, engine oils, and even overheating lubricating oil. It also handles air and water systems, reducing inventory complexity for multi-fluid operations.

Weather-Resistant Durability
The braided fiber cover provides superior protection against weather, ozone, and mildew. This makes the SAE 100R5 hydraulic hose ideal for outdoor equipment exposed to sunlight, rain, and temperature variations.

Flexibility for Easy Installation
Despite its steel wire reinforcement, this wire braided hose maintains excellent flexibility with tight bend radii. This characteristic simplifies routing in confined spaces common in commercial vehicles and industrial machinery.

Applicable Users:

• Commercial vehicle manufacturers and fleet maintenance operations

• Construction equipment operators requiring reliable hydraulic lines

• Industrial plant maintenance teams for medium pressure systems

• Agricultural equipment users needing multi-fluid compatibility

• Marine applications requiring weather-resistant hose assemblies

Detailed Technical Specifications Table

The specification of SAE 100 R5 steel wire reinforced hydraulic hose (1)

Hose code	Size		Dash size	ID		OD
	mm	inch		min	max	min	max
SAE100R5-01	5	3/16	-3	4.8	5.5	12.7	13.7
SAE100R5-02	6.3	1/4	-4	6.4	7.2	14.3	15.3
SAE100R5-03	8	5/16	-5	7.9	8.7	16.7	17.6
SAE100R5-04	12.5	1/2	-8	12.7	13.7	22.8	24
SAE100R5-05	16	5/8	-10	15.9	17	26.8	28
SAE100R5-06	22	7/8	-14	22.2	23.3	30.6	32.2
SAE100R5-07	29	1-1/8	-18	28.6	29.8	37.3	38.9
SAE100R5-08	35	1-3/8	-22	34.9	36.1	43.7	45.2
SAE100R5-09	46	1-13/16	-29	46.0	47.2	55.2	57.6
SAE100R5-10	60	2-3/8	-38	60.3	61.9	71.8	74.2
SAE100R5-11	76	3	-48	76.2	77.8	89.3	91.7

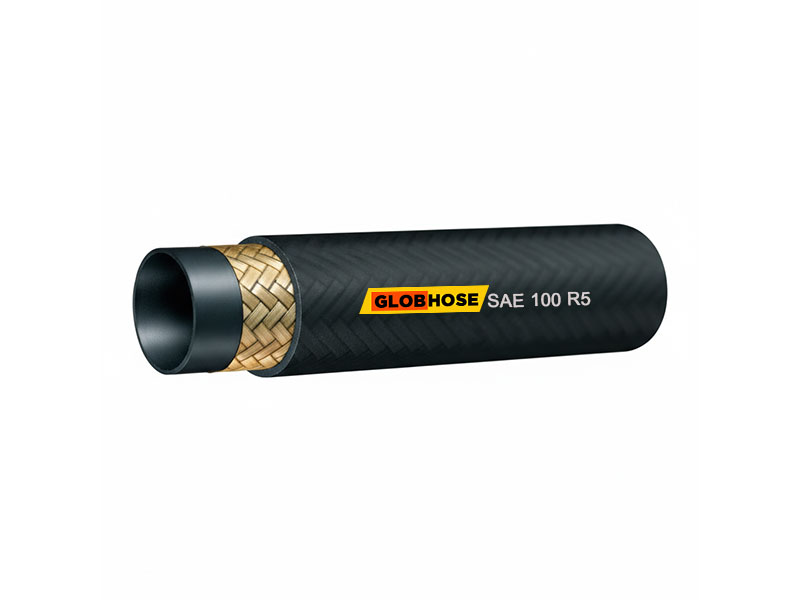

Structure and Materials

The SAE 100 R5 hydraulic hose construction represents an optimal balance of performance, durability, and cost-effectiveness for medium pressure applications.

Tube (Inner Layer):
The tube is manufactured from black, oil-resistant synthetic rubber specifically formulated for compatibility with petroleum-based hydraulic fluids, lubricating oils, and fuel systems. This compound ensures minimal fluid resistance and maintains integrity even when handling overheating lubricating oil. The smooth bore design reduces pressure drop and prevents contaminant accumulation.

Reinforcement (Middle Layer):
A single layer of high tensile braided steel wire provides the structural strength that defines this wire braided hose. The braiding pattern is precisely engineered to balance radial and axial forces during pressurization, preventing hose expansion while maintaining flexibility. This construction differs from wire spiral hose designs used in ultra-high pressure applications, making the SAE 100R5 perfectly suited for medium pressure duty cycles.

Cover (Outer Layer):
The braided fiber cover delivers exceptional protection against environmental factors. This cover resists weather degradation, ozone cracking, and mildew growth—common failure modes in outdoor equipment. The fiber braid also provides abrasion resistance during installation and operation while maintaining the hose’s flexibility.

Why Single Wire Braid for Medium Pressure?

The engineering principle behind the single wire braid reinforcement is straightforward yet sophisticated. The braided steel layer is applied at an optimal angle (typically 54°44′) that balances the forces created by internal pressure. At this “neutral angle,” the reinforcement experiences minimal dimensional change during pressurization, extending hose life and maintaining consistent performance.

For medium pressure applications up to 21 MPa, a single braid provides adequate strength without the weight, cost, and stiffness penalties of multiple layers. The SAE 100R5 specifications recognize this optimum, defining the reinforcement requirements precisely for reliable service.

Safety Factor Engineering:

All SAE 100R5 hose sizes maintain a minimum 4:1 safety ratio between burst pressure and working pressure. This industry-standard safety factor ensures that even under unexpected pressure spikes or momentary overloads, the hose maintains integrity. Our manufacturing process includes validation testing to verify this critical parameter.

Application Industries

The SAE 100 R5 hydraulic hose serves diverse industries requiring reliable medium pressure fluid conveyance.

Commercial Transportation:

• Air brake systems in heavy trucks and trailers

• Power steering circuits for commercial vehicles

• Fuel filter and delivery lines

• Turbocharger oil supply and return lines

• Hydraulic cylinder connections for lift gates and auxiliary equipment

Construction Equipment:

• Medium pressure hydraulic circuits in compact excavators

• Pilot control lines for heavy equipment

• Return lines in hydraulic systems

• Lubrication lines for moving components

Agricultural Machinery:

• Tractor hydraulic implements and attachments

• Combine harvester hydraulic systems

• Sprayer equipment fluid delivery

• Grain handling equipment

Industrial Manufacturing:

• Machine tool lubrication systems

• Hydraulic presses and forming equipment

• Material handling equipment

• Assembly line automation

Marine Applications:

• Deck machinery hydraulic systems

• Steering gear control lines

• Engine lubrication circuits

Mining and Resource Extraction:

• Conveyor system hydraulic controls

• Drilling equipment auxiliary circuits

• Material processing machinery

Precise Selection Professional Guide

It’s More Than Just Hose – Complete Hose Assembly Solutions

SAE 100 R5 hose delivers optimal performance when properly configured as complete hose assembly systems. We offer comprehensive Assembly services to ensure your hydraulic lines perform reliably from day one.

Crimped Fittings Selection Guide:

• For -3 to -8 sizes: One-piece crimp fittings provide secure connections for compact spaces

• For -10 to -48 sizes: Two-piece crimp designs accommodate higher assembly forces

• Thread options: BSPP, BSPT, JIC, NPT, and metric configurations available

• Material choices: Carbon steel with zinc plating or stainless steel for corrosive environments

Reusable Fittings Applications:
Field-repairable reusable fittings are available for SAE 100R5 hose, allowing on-site replacement without specialized crimping equipment. These are ideal for emergency repairs and remote locations.

Complete Connection Solutions:
Beyond fittings, we supply all necessary components for complete hydraulic systems:

• Adapters for transitioning between thread types and sizes

• Flanges for high-flow applications (SAE code 61 and 62)

• Protective sleeves and guards for abrasion-prone installations

• Swivel connections for easier installation

SAE 100R5 vs. Other Standards – Complete Comparison Guide

International Standard Equivalency:

Comparison with Similar Hose Types:

SAE 100R5 vs. SAE 100R1: While both use single wire braid reinforcement, SAE 100R5 features a fiber braid cover (versus rubber cover on R1) and typically offers better weather resistance, making it preferred for outdoor vehicle applications.

SAE 100R5 vs. SAE 100R6: R6 uses textile reinforcement for lower pressure applications (typically under 3 MPa), while R5’s wire braid enables much higher pressure capability.

Industry Pain Point Solutions

“Preventing Air Brake System Failures in Commercial Fleets”

Air brake systems demand absolute reliability. Our SAE 100R5 hose addresses common failure modes through:

• Moisture-resistant tube compound preventing internal corrosion

• Weather-resistant cover for exposed chassis mounting

• Flexible construction allowing proper routing without kinking

• Compatible with standard sae j1402 air brake fittings

“Eliminating Fuel Line Deterioration in Heavy Equipment”

Bio-fuel blends and modern additives can attack standard rubber compounds. The SAE 100R5 tube formulation resists fuel degradation, maintaining flexibility and preventing leaks throughout the hose service life.

“Cold Weather Start-up Reliability”

With a -40°C low-temperature rating, this rubber hose remains flexible during frigid starts. Our testing confirms that even at extreme low temperatures, the hose maintains integrity and allows immediate system operation without warm-up periods.

Technical Standards and Certifications

The SAE 100R5 hydraulic hose complies with multiple international standards ensuring global acceptance and reliable performance.

Primary Standards:

• SAE J517 100 R5: The defining specification for this hose type

• SAE J1402: For air brake system applications

• ISO 1436: International standard for wire braid hydraulic hoses

Performance Certifications:

• 4:1 minimum safety factor across all sizes

• Pulse test certified to 200,000+ cycles at 133% of working pressure

• Low temperature flexibility verified at -40°C

• Ozone resistance tested per ASTM D1149

Material Compliance:

• REACH compliant materials

• RoHS compliant for applicable components

• Conflict minerals-free supply chain

Complete sae 100r5 specifications are available for download in pdf format, including dimensional tolerances, performance data, and test methods.

Brand and Quality Assurance

As a leading manufacturer and supplier of hydraulic products in China, we combine decades of manufacturing expertise with modern quality systems. Our factory operates under strict ISO 9001 quality management protocols, ensuring consistent SAE 100R5 hose production.

Quality Management – Visual Production and Testing Process:

Raw Material Inspection:

• Every batch of synthetic rubber compound undergoes rheometer testing

• High tensile steel wire is tensile tested and checked for consistent diameter

• Fiber braid materials are verified for strength and weather resistance

In-Process Production Control:

• Tube extrusion monitored for concentricity and dimensional accuracy

• Wire braid application checked for consistent angle and tension

• Cover application verified for coverage and adhesion

• Continuous online dimensional monitoring

100% Factory Testing:
Each production length of SAE 100R5 hose undergoes proof pressure testing at 1.5 times working pressure, verifying:

• No leaks or weeping through the cover

• No dimensional instability under pressure

• Proper fitting retention in assembled configurations

Laboratory Validation:
Our in-house laboratory performs regular destructive testing including:

• Burst pressure verification to 4x working pressure minimum

• Pulse testing per ISO 6803 (200,000+ cycles at elevated temperature)

• Fluid immersion testing for compatibility verification

• Low-temperature flexibility testing at -40°C

• Adhesion testing between components

Third-Party Certifications:

• ISO 9001:2015 certified quality management

• CE marked for European market compliance

• Test reports available from accredited laboratories

• UL recognized component for applicable configurations

Customer Evidence:
“A major fleet operator reported a 73% reduction in air brake system leaks after switching to our SAE 100R5 assemblies.” “An agricultural equipment manufacturer extended their warranty period by 40% after incorporating our hose into their hydraulic systems.”

Sustainability Commitment:
Our SAE 100R5 hose is manufactured using environmentally responsible processes. The long service life reduces replacement frequency and waste. Materials are selected for recyclability where possible, and we maintain compliance with global environmental regulations.

Installation, Operation, and Maintenance Guide

Proper Installation Practices:

1. Hose Length Determination:
Allow adequate slack for movement during operation. Hose assemblies should be 2-5% longer than the straight-line distance to accommodate pressure-induced length changes and equipment motion.

2. Minimum Bend Radius:
Never install hose below the specified minimum bend radius. Refer to the specification table for size-specific values. Bending tighter than recommended reduces pressure capacity and service life.

3. Routing Considerations:

• Avoid twisting during installation – use swivel fittings to prevent torsional stress

• Protect from abrasion at wear points using guards or protective sleeves

• Maintain clearance from moving machinery components

• Avoid extreme heat sources – maintain distance from exhaust systems

4. Fitting Assembly:
For crimped fittings, use factory-specified crimp diameters and tolerances. For reusable fittings, follow manufacturer torque specifications precisely.

Operation Guidelines:

Pressure Limits:
Do not exceed specified working pressure. Pressure spikes above working pressure should be avoided through proper system design.

Temperature Monitoring:
While the hose is rated for -40°C to +100°C, fluid temperature at the hose entrance should not exceed +100°C. External heat sources may require additional shielding.

Maintenance Schedule:

Regular Inspections (Monthly):

• Check for cover damage, cuts, or abrasion

• Inspect fittings for corrosion or damage

• Verify no leakage at connection points

• Look for kinking or crushing damage

Annual Replacement Considerations:
Replace hose assemblies showing:

• Cover cracking or hardening

• Evidence of fluid seepage through cover

• Fitting corrosion or damage

• Kinking or deformation

• Age exceeding manufacturer recommendations (typically 5-6 years for most applications)

Frequently Asked Questions (FAQ)

Q1: What is the definition of SAE 100 R5 hydraulic hose?
A: SAE 100 R5 is the SAE J517 standard definition for a medium pressure hydraulic hose with a single steel wire braid reinforcement and a fiber braid cover, designed for petroleum-based fluids, air, and water.

Q2: What are the complete SAE 100R5 specifications?
A: The full sae 100r5 specifications include dimensional tolerances, pressure ratings (working, proof, and burst), temperature range (-40°C to +100°C), and construction requirements. Our downloadable pdf contains complete details.

Q3: Where can I buy SAE 100 R5 hydraulic hose?
A: You can buy directly from our manufacturer website or contact our global distributor network. We offer wholesale pricing for volume orders and bulk purchasing options.

Q4: What is the price of SAE 100 R5 hose?
A: The price varies by size and quantity. Contact our sales team for current cost information and discount pricing for volume purchases. We offer competitive OEM ODM pricing for custom requirements.

Q5: How does SAE 100R5 compare to SAE 100R1?
A: Both use single wire braid reinforcement, but SAE 100R5 features a fiber braid cover (versus rubber on R1) and typically offers superior weather and ozone resistance, making it preferred for outdoor applications.

Q6: What fittings work with SAE 100R5 hose?
A: SAE 100R5 accepts standard crimped fittings and reusable fittings designed for wire braid hose. Common connections include JIC, BSP, NPT, and flange configurations with appropriate adapters.

Q7: Can SAE 100R5 be used for air brake systems?
A: Yes, SAE 100R5 meets sae j1402 requirements for air brake applications when properly assembled with appropriate fittings.

Q8: What is the shelf life of SAE 100R5 hose?
A: When stored properly (cool, dry, away from ozone and UV), the hose maintains specifications for up to 5 years from manufacture date.

Q9: Do you offer custom SAE 100R5 hose assemblies?
A: Yes, we provide complete hose assembly Service with custom lengths, fitting configurations, and testing. Our Support team can design solutions for your specific application.

Q10: Is SAE 100R5 available in colors besides black?
A: While standard production is black, we offer red, green, gray, and white cover options for OEM ODM projects with sufficient volume.

Ready to Source Premium SAE 100 R5 Hydraulic Hose?

Whether you need a single replacement hose or ongoing supply for manufacturing, our team provides the Solution for your medium pressure hydraulic requirements. As an experienced manufacturer and exporter, we deliver consistent quality, competitive pricing, and reliable Service.

Contact Our Hydraulic Specialists Today:

• Request a quote with current price and availability

• Download complete sae 100r5 specifications in pdf format

• Discuss custom OEM ODM requirements

• Inquire about bulk pricing and discount programs

• Get technical Support for your application
