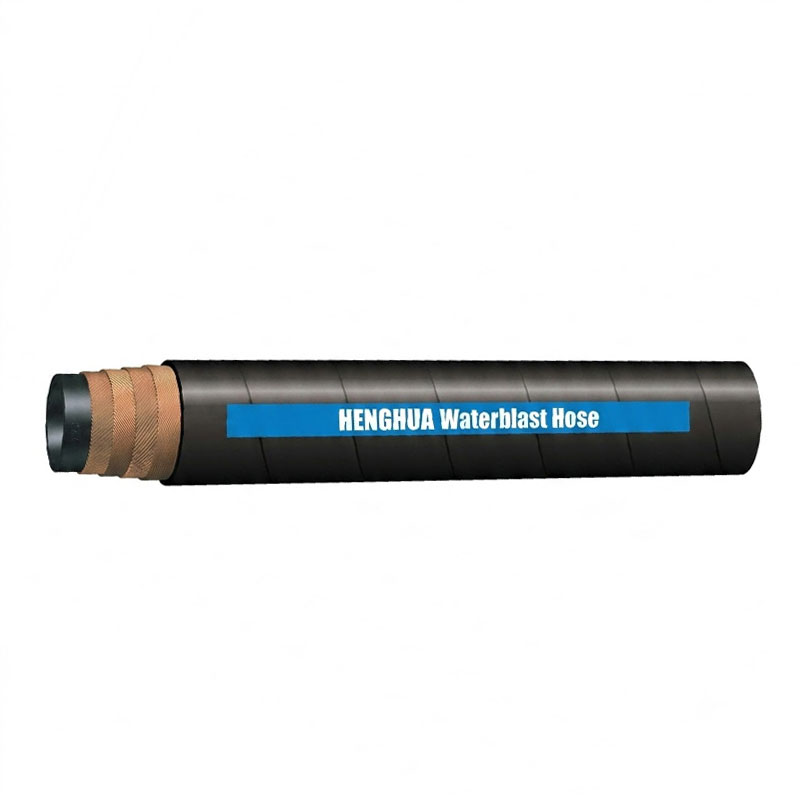

Waterblast Hose
Product Overview
A Waterblast Hose is a specialized High Pressure Hose designed for transferring water, air, and inert gases at extreme pressures. By definition, this rubber hose combines flexibility with rugged durability, making it the preferred standard for industrial cleaning, construction, and mining operations. As a leading manufacturer in china, we produce this hose to meet rigorous international standard requirements.
The construction features an NR & SBR synthetic rubber tube, reinforced with multiple spiral technology, and covered with an oil and weather-resistant synthetic rubber layer. This Wire Spiral Hose structure ensures exceptional resistance to kinks, abrasion, and harsh environments.
With a maximum working pressure of 1218 psi and a 2.5 times safety factor, every product undergoes a 100% pressure test. You can buy this Waterblast Hose with confidence. Its flexible design allows easy maneuvering into hard-to-reach areas, from washing vehicles and driveways to cleaning industrial equipment. The Waterblast Hose solves common pain points like premature bursting, kinking, and short service life. Our quality commitment includes traceable batch numbers and full specification compliance. For a complete solution, we also offer hose assembly with crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards.
Product Advantages
- Ultra-High Pressure Performance: Rated at 1218 psi working pressure with a 3045 psi bursting pressure.
- Extreme Temperature Range: Operates reliably from -40°C to +100°C.
- Superior Abrasion & Kink Resistance: The rugged cover resists wear in harsh environments.
- Flexible & Maneuverable: Easily reaches tight spaces without kinking.
- Full Compatibility: Works with fittings, hose assembly, and protective sleeves.
- Bulk & Wholesale Options: Available at competitive price and cost with discount for bulk orders.
Applicable Users: Mining, construction, engineering, shipbuilding, steel production, and facility maintenance teams.
Detailed Technical Specifications Table
| Code | ID (inch) | ID (mm) | OD (mm) | Working Pressure (psi) | Bursting Pressure (psi) | Bend Radius (mm) | Weight (kgs/m) |
|---|---|---|---|---|---|---|---|
| WBLH06 | 1/4″ | 6 | 14.7 | 1218 | 3045 | 130 | 0.250 |
| WBLH08 | 5/16″ | 8 | 18.7 | 1073 | 2668 | 150 | 0.360 |
| WBLH10 | 3/8″ | 10 | 24.4 | 1276 | 3190 | 200 | 1.020 |
| WBLH13 | 1/2″ | 13 | 34.0 | 1218 | 3045 | 300 | 1.900 |
| WBLH19 | 3/4″ | 19 | 25.0 | 1218 | 3045 | 300 | 1.900 |
For a complete pdf specification sheet, contact our supply team.
Structure and Materials
- Tube: NR & SBR synthetic rubber, black color. Ensures low flow resistance and compatibility with water, air, and inert gas.
- Reinforcement: Multiple spiral technology. This Wire Spiral Hose design provides superior burst resistance and fatigue life compared to Wire Braided Hose.
- Cover: Oil and weather-resistant synthetic rubber. Protects against ozone, UV, and abrasion.
Engineering Insight: Why Multiple Spiral Technology?
Our Waterblast Hose uses a multi-spiral reinforcement. Unlike a Wire Braided Hose, which uses a single braid, the spiral layers are wound at opposing angles. This design balances radial and axial forces under impulse pressure, significantly extending service life. The 2.5:1 safety factor (working pressure to burst pressure) exceeds many standard requirements, ensuring safe operation even during unexpected pressure spikes.
Application Industries
- Mining: Conveying air and water for dust suppression and equipment cooling.
- Construction & Engineering: Powering concrete spraying, washing aggregates, and site cleanup.
- Shipbuilding: High-pressure washing of hulls, decks, and ballast tanks.
- Steel Production: Descaling and equipment cooling in high-temperature zones.
- Facility Management: Industrial surface cleaning and maintenance.
Precise Selection Professional Guide
It’s Not Just a Hose – It’s a Complete Hose Assembly Solution
To maximize performance, your Waterblast Hose must be paired with the correct fittings. We offer:
- Crimped Fittings: Permanent, leak-free connection for maximum safety.
- Reusable Fittings: Ideal for field repairs without special tools.
- Adapters & Flanges: For connecting to various equipment ports.
- Protective Sleeves & Guards: Prevent external damage and extend hose life.
Our factory produces pre-assembled hose assembly units. Factory-crimped assemblies reduce leak risks and ensure consistent quality.
Waterblast Hose vs. Alternatives
| Feature | Waterblast Hose (Spiral) | Standard Wire Braided Hose |
|---|---|---|
| Kink Resistance | Excellent | Moderate |
| Abrasion Resistance | High (rugged cover) | Standard |
| Pressure Range | Up to 1276 psi | Up to 600 psi |
| Best For | Demanding, dynamic tasks | General purpose |
Technical Standards and Certifications
- Standards: Compliant with international standard for high-pressure water and air transfer.
- Testing: 100% factory pressure test at 1.5x working pressure.
- Certifications: ISO 9001 certified manufacturer in china. Available upon request: REACH, RoHS compliance.
Brand and Quality Assurance
As a professional rubber hose manufacturer, factory, producer, supplier, distributor, wholesaler, and exporter in china, we offer OEM ODM service. Our support includes technical service and after-sales support.
Quality Control Process:
- Incoming Raw Material Inspection: Rubber and steel wire are tested.
- In-Process Monitoring: Extrusion, spiral winding, and vulcanization are controlled.
- 100% Outgoing Testing: Every hose undergoes a hydrostatic test.
- Lab Testing: Includes burst, impulse, and fluid compatibility.
Our clients report a 60% reduction in hose-related downtime after switching to our Waterblast Hose.
Installation, Operation, and Maintenance Guide
- Installation: Use correct crimped fittings or reusable fittings. Never exceed the minimum bend radius.
- Operation: Stay within 1218 psi working pressure. Avoid dragging over sharp edges.
- Maintenance: Inspect regularly for cover damage. Replace immediately if outer cover is cut or bulging.
- Storage: Store in a cool, dry place away from ozone sources.
Frequently Asked Questions (FAQs)
Q1: What is the definition of a Waterblast Hose?
A: It is a High Pressure Hose designed specifically for water, air, and inert gas transfer at up to 1218 psi, with a kink- and abrasion-resistant construction.
Q2: Can I buy this hose in bulk?
A: Yes. We offer wholesale and bulk options with discount pricing. Contact us for a quote.
Q3: What fittings are compatible?
A: Our hose assembly uses crimped fittings, reusable fittings, adapters, and flanges. We also supply protective sleeves and guards.
Q4: Do you provide OEM ODM service?
A: Yes. As a manufacturer and factory, we offer full OEM ODM service for custom lengths, packaging, and branding.
Q5: Where can I get the pdf specification?
A: Download the pdf specification sheet from our website or contact our support team.
Ready to source a reliable Waterblast Hose for your most demanding jobs? As a trusted supplier in china, we provide the complete solution: from standard hoses to custom hose assembly with fittings. Whether you need a sample, a bulk order, or OEM ODM service, our team offers competitive price, fast supply, and expert support.
Contact us now to get the pdf specification, request a discount, or place your wholesale order. Upgrade to a safer, longer-lasting Waterblast Hose today.
