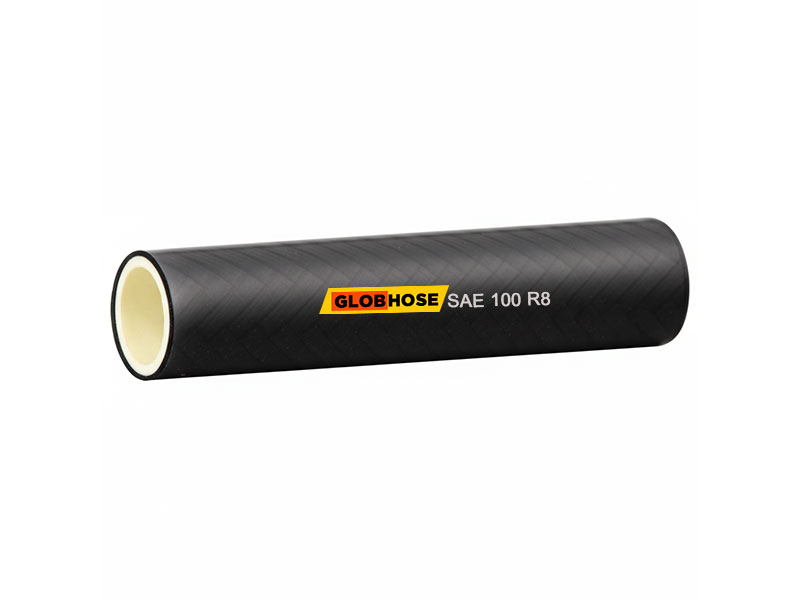

SAE 100 R8 Hydraulic Hose

Product Overview

SAE 100 R8 thermoplastic hydraulic hose represents the premier solution for high-pressure thermoplastic hydraulic applications, designed and manufactured to meet the rigorous SAE 100 R8 standard. This specification defines a hose constructed specifically for delivering synthetic, petroleum, and water-based hydraulic fluids under extreme pressure conditions, making it an indispensable component in modern hydraulic systems worldwide. As a China-based manufacturer and supplier, we produce SAE 100 R8 hoses that exceed industry expectations for performance and durability.

The SAE 100 R8 hose consists of three precisely engineered components: a tube made from high-quality hydraulic fluids resistant thermoplastic, reinforcement layers of suitable synthetic fiber, and a cover constructed from weather and hydraulic fluids resistant thermoplastic. This triple-layer construction ensures exceptional resistance to fluid degradation, pressure extremes, and environmental factors, delivering service life that significantly outperforms standard rubber hose alternatives.

Key performance parameters include an impressive working temperature range of -40°C to +93°C, accommodating the most demanding operating environments from arctic conditions to high-heat industrial settings. Working pressures range from 14 MPa to 35 MPa depending on hose size, with a minimum burst pressure of four times the working pressure, ensuring a substantial safety margin for critical applications. The SAE 100 R8 series offers sizes from 3/16 inch to 1 inch nominal diameter, providing comprehensive coverage for diverse hydraulic system requirements.

The SAE 100 R8 thermoplastic hydraulic hose delivers four core advantages: superior chemical compatibility with multiple hydraulic fluid types, exceptional flexibility for tight installation spaces, remarkable resistance to weather and UV exposure, and extended service life that reduces maintenance frequency and total cost of ownership. These characteristics make it the preferred choice for engineers and procurement professionals seeking reliable high pressure hose solutions.

Primary applications include construction machinery, agricultural equipment, industrial manufacturing systems, mining operations, and mobile hydraulic installations. The SAE 100 R8 hose addresses critical customer pain points including frequent hose failures, fluid incompatibility issues, premature aging from environmental exposure, and the high costs associated with system downtime. Each hose produced undergoes rigorous quality testing and carries certification confirming compliance with SAE 100 R8 specifications, providing complete assurance for project-critical installations.

Product Advantages

Performance Excellence

Ultra-High Pressure Capability: SAE 100 R8 thermoplastic hydraulic hose delivers working pressures up to 35 MPa (5075 psi) for smaller diameters, engineered specifically for demanding high pressure working conditions where standard hoses fail. The synthetic fiber reinforcement provides exceptional strength-to-weight ratio, enabling superior pressure handling without the weight penalty of wire reinforced alternatives.

Exceptional Fluid Compatibility: The specially formulated thermoplastic tube material demonstrates outstanding resistance to synthetic hydraulic fluids, petroleum-based oils, and water-based hydraulic fluids. This broad compatibility eliminates the need for multiple hose types in facilities using different fluid formulations, simplifying inventory management and reducing selection errors.

Extended Temperature Range Performance: With operational capability from -40°C to +93°C, SAE 100 R8 hoses maintain flexibility and sealing integrity across extreme temperature variations. Cold weather installations benefit from reduced stiffness during startup, while high-temperature operations maintain pressure capacity without material degradation.

Superior Environmental Resistance: The weather-resistant thermoplastic cover provides outstanding protection against ozone, UV radiation, moisture, and temperature cycling. Field installations exposed to direct sunlight, rain, and temperature extremes demonstrate significantly extended service life compared to conventional rubber hose covers.

Operational Benefits

Lightweight Construction: The thermoplastic materials and synthetic fiber reinforcement create a hose significantly lighter than equivalent wire reinforced products. This weight reduction simplifies handling during installation, reduces support structure requirements, and minimizes operator fatigue in mobile equipment applications.

Excellent Flexibility: SAE 100 R8 hoses feature minimum bend radii ranging from 90 mm to 300 mm depending on size, enabling installation in confined spaces where rigid assemblies would be impractical. The flexibility also reduces stress on fittings and connection points, extending total assembly life.

Smooth Bore Flow Characteristics: The precision-extruded thermoplastic tube creates an exceptionally smooth internal surface that minimizes flow resistance and pressure drop. Hydraulic systems benefit from improved efficiency, reduced energy consumption, and lower operating temperatures.

Commercial Advantages

Competitive SAE 100 R8 Price Positioning: As a direct manufacturer in China, we offer SAE 100 R8 hoses at highly competitive price points without compromising quality. Volume buyers benefit from significant cost advantages through our wholesale and bulk purchasing programs, with discounts available for regular production requirements.

Comprehensive Supply Capability: Our factory maintains extensive inventory of all SAE 100 R8 sizes, ensuring rapid response to both scheduled maintenance requirements and emergency replacement needs. As an established exporter, we serve customers worldwide with reliable shipping and documentation support.

OEM and ODM Services: We provide complete OEM and ODM manufacturing capabilities for customers requiring customized branding, packaging, or specification modifications. Our engineering team collaborates with clients to develop solutions meeting unique application requirements while maintaining SAE 100 R8 standard compliance.

Detailed Technical Specifications Table

the specification of SAE 100 R8 thermoplastic hydraulic hose (1)

Hose code	Size		Dash size	ID		OD
	mm	inch		min	max	max
SAE100R8-01	5	3/16	-3	4.6	5.4	14.6
SAE100R8-02	6.3	1/4	-4	6.2	7.0	16.8
SAE100R8-03	10	3/8	-6	9.3	10.3	20.3
SAE100R8-04	12.8	1/2	-8	12.3	13.5	24.6
SAE100R8-05	16	5/8	-10	15.5	16.7	29.8
SAE100R8-06	19	3/4	-12	18.6	19.8	33
SAE100R8-07	25	1	-16	25.0	26.4	38.6

Structure and Materials

Precision-Engineered Three-Layer Construction

The SAE 100 R8 thermoplastic hydraulic hose embodies engineering excellence through its meticulously designed three-layer structure, each component selected and manufactured to fulfill specific performance requirements:

Tube Layer: The innermost layer consists of high-quality thermoplastic specifically formulated for hydraulic fluid resistance. This material undergoes rigorous compatibility testing with synthetic, petroleum, and water-based hydraulic fluids to ensure zero degradation, swelling, or extractive contamination of system fluids. The precision extrusion process creates a perfectly smooth, pinhole-free surface that maintains fluid purity while minimizing flow resistance. Unlike traditional rubber hose tubes, this thermoplastic formulation exhibits superior resistance to fluid absorption, maintaining dimensional stability and consistent performance throughout service life.

Reinforcement Layer: The middle layer employs multiple braids of specially selected synthetic fiber, engineered to provide optimal strength-to-weight characteristics. The fiber orientation and braid angle are precisely calculated to balance radial and axial stress distribution under pressure, preventing both diametral expansion and longitudinal contraction. This reinforcement configuration enables SAE 100 R8 hoses to achieve their rated working pressures while maintaining flexibility superior to wire-reinforced alternatives. The synthetic fiber construction also eliminates corrosion concerns associated with steel wire reinforcement, particularly important in marine or high-humidity environments.

Cover Layer: The outer layer utilizes weather-resistant thermoplastic compounded with UV stabilizers, antioxidants, and hydrolysis inhibitors. This sophisticated formulation protects against environmental degradation including ozone cracking, ultraviolet embrittlement, and moisture absorption. The cover’s abrasion resistance exceeds rubber hose standards, providing protection during installation and operation in abrasive environments. The smooth outer surface facilitates cleaning and inspection while resisting adhesion of dirt, oil, and chemicals that could accelerate cover deterioration.

Why Synthetic Fiber Reinforcement?

The engineering decision to utilize synthetic fiber rather than traditional wire reinforcement in SAE 100 R8 construction reflects fundamental understanding of high-pressure thermoplastic behavior. Synthetic fibers provide exceptional tensile strength with minimal elongation under load, maintaining consistent hose dimensions throughout pressure cycles. Unlike wire, synthetic fibers do not work-harden or fatigue over time, eliminating a primary failure mechanism in conventional hydraulic hoses.

The reinforcement design incorporates multiple layers with precisely controlled braid angles to achieve what engineers term “neutral angle construction.” At approximately 54.7 degrees relative to the hose axis, the reinforcement achieves perfect balance between circumferential and longitudinal forces, preventing both hose growth under pressure and contraction that could stress fittings. This engineering principle explains why SAE 100 R8 hoses maintain dimensional stability superior to many alternative constructions.

Material Compatibility Reference

The SAE 100 R8 thermoplastic tube demonstrates excellent compatibility with:

Application Industries

Primary Application Scenarios

Construction and Earthmoving Equipment: SAE 100 R8 thermoplastic hydraulic hoses serve critical functions in excavators, bulldozers, loaders, and graders where high pressure hydraulic systems control boom, bucket, and drive functions. The combination of pressure capacity and weather resistance makes these hoses ideal for outdoor construction environments exposed to sun, rain, and temperature extremes. Equipment operating in remote locations benefits from the extended service life, reducing maintenance logistics requirements.

Agricultural Machinery: Modern tractors, combines, sprayers, and harvesters rely on hydraulic systems for steering, implement control, and power take-off functions. SAE 100 R8 hoses withstand the agricultural environment including chemical exposure, UV radiation, and abrasive dust while maintaining performance through planting, growing, and harvest seasons. The lightweight construction reduces overall equipment weight, improving fuel efficiency and reducing soil compaction.

Industrial Manufacturing: Injection molding machines, hydraulic presses, material handling equipment, and automated production lines utilize SAE 100 R8 hoses for power transmission and control functions. The smooth bore characteristics ensure precise control response essential for automated manufacturing processes. The hose’s compatibility with various hydraulic fluids accommodates facilities using different fluid types across multiple production areas.

Mining Operations: Underground and surface mining equipment including continuous miners, roof bolters, haul trucks, and processing equipment operate in the most demanding environments. SAE 100 R8 hoses provide reliable performance despite exposure to rock dust, water spray, and extreme temperature variations. The thermoplastic cover’s abrasion resistance proves particularly valuable in mining applications where hose contact with rock and equipment is unavoidable.

Material Handling: Forklifts, aerial work platforms, cranes, and conveyors utilize SAE 100 R8 hoses for lifting and positioning functions where safety and reliability are paramount. The 4:1 safety factor inherent in the SAE 100 R8 specification provides substantial margin for dynamic loading conditions common in material handling applications.

Marine and Offshore: Vessel steering systems, deck machinery, and offshore platform equipment benefit from the corrosion-resistant construction of SAE 100 R8 hoses. The thermoplastic materials resist saltwater degradation that rapidly deteriorates conventional rubber hose constructions, making these hoses preferred for marine hydraulic applications.

Complete Hydraulic System Solutions

Beyond individual hoses, we provide comprehensive hose assembly services that transform raw SAE 100 R8 hose into ready-to-install components. Our assembly facility utilizes precision cutting equipment, professional-grade skiving tools, and computer-controlled crimping machines to produce assemblies meeting exact customer specifications.

Crimped Fittings: We stock extensive inventories of crimped fittings in all common configurations including JIC, BSP, NPT, flange, and metric styles. Each fitting undergoes rigorous quality inspection and is matched to the specific SAE 100 R8 hose size using validated crimp specifications. The resulting assembly provides leak-free performance equivalent to the hose itself.

Reusable Fittings: For field maintenance applications, we offer reusable fittings that attach mechanically to SAE 100 R8 hose without special tools. These fittings prove particularly valuable in remote locations where replacement assemblies may not be readily available.

Adapters and Flanges: Our inventory includes comprehensive selections of hydraulic adapters, flange kits, and transition fittings enabling connection between SAE 100 R8 hose assemblies and various system components. This complete solution capability ensures customers can source all hydraulic connection requirements from a single supplier.

Protective Sleeves and Guards: To extend service life in abrasive environments, we offer protective sleeving materials including nylon mesh, spiral wrap, and heavy-duty guards. These accessories prevent cover damage in applications where hose contact with equipment or materials is unavoidable.

Technical Standards and Certifications

SAE 100 R8 Specification Compliance

The SAE 100 R8 standard, published by SAE International, defines requirements for thermoplastic hydraulic hoses with synthetic fiber reinforcement. Key specification requirements include:

Pressure Performance: The standard requires minimum burst pressure of four times the working pressure, providing the 4:1 safety factor recognized globally as the benchmark for hydraulic hose safety. Our SAE 100 R8 hoses meet or exceed this requirement across all sizes, with some sizes demonstrating burst pressures exceeding minimum requirements.

Impulse Testing: SAE 100 R8 requires hoses to withstand a minimum of 200,000 impulse cycles at 133% of working pressure while fluid temperature is maintained at 93°C. Our production undergoes regular impulse testing to verify performance beyond specification requirements, with test results documented and available for customer review.

Low-Temperature Flexibility: The standard mandates flexibility testing at -40°C, ensuring hoses remain usable in cold environments without cracking or stiffening that could complicate installation or operation. All SAE 100 R8 sizes from our factory pass this requirement with substantial margin.

Quality Management System Certification

Our manufacturing facility operates under ISO 9001 certified quality management systems, ensuring consistent production quality through documented procedures, regular internal audits, and continuous improvement processes. Key quality elements include:

Raw Material Verification: Every batch of thermoplastic compound and synthetic fiber undergoes incoming inspection against certified specifications before release to production. This verification ensures material consistency essential for finished product performance.

In-Process Quality Control: Throughout the extrusion, braiding, and finishing processes, operators perform regular dimensional and visual inspections, with data recorded for traceability. Statistical process control techniques identify potential variations before they affect finished product quality.

Finished Product Testing: Each production lot undergoes comprehensive testing including dimensional verification, pressure testing, and visual inspection before release. Sample retention programs enable retrospective testing if questions arise after shipment.

Global Standards Alignment

While manufactured to SAE 100 R8, our hoses also meet requirements of comparable international standards:

This multi-standard compliance simplifies international procurement, as customers can specify any recognized standard with confidence that our product meets the requirement.

Brand and Quality Assurance

Manufacturing Excellence in China

As a specialized manufacturer of SAE 100 R8 thermoplastic hydraulic hoses, our facility combines decades of hydraulic industry experience with modern production technology. Our engineering team includes specialists in thermoplastic materials, reinforcement structures, and fluid power systems who collaborate to continuously improve product performance and manufacturing efficiency.

Raw Material Quality Control: Our laboratory conducts comprehensive testing of incoming materials including tensile strength verification, hardness measurement, fluid compatibility assessment, and thermal analysis. This rigorous incoming inspection prevents material variations from affecting finished product quality.

Production Process Control: Extrusion lines operate with continuous monitoring of critical parameters including temperature profiles, line speed, and dimensional consistency. Braiding machines maintain precise tension control ensuring uniform reinforcement layer properties. Real-time data collection enables immediate correction of process variations.

100% Factory Testing: Every SAE 100 R8 hose produced undergoes proof pressure testing at 50% of minimum burst pressure, verifying structural integrity before shipment. Sample lots receive additional testing including burst pressure verification, impulse cycle testing, and fluid compatibility assessment. Test data is retained and available for customer audit.

Customer Partnership Approach

We view ourselves not merely as a supplier but as a solution partner for customers’ hydraulic system requirements. Our technical support team assists with:

Selection Guidance: Engineers help customers select the optimal SAE 100 R8 size and configuration for specific applications, considering pressure requirements, fluid compatibility, environmental conditions, and installation constraints.

Failure Analysis: When hose-related issues arise, we provide professional failure analysis to determine root causes and recommend corrective actions. This service helps customers address underlying system problems rather than simply replacing failed components.

Inventory Optimization: For regular customers, we offer consignment inventory programs and scheduled replenishment services that ensure hose availability while minimizing customer inventory carrying costs.

Customer Testimonials

“Mining operations require absolute reliability from hydraulic systems. Since switching to this SAE 100 R8 source, our hose-related downtime has decreased by over 60%.” — Maintenance Manager, Chilean Copper Mine

“The combination of quality product and responsive support makes this supplier our preferred source for thermoplastic hoses across multiple manufacturing facilities.” — Procurement Director, European Agricultural Equipment Manufacturer

Installation, Operation, and Maintenance Guide

Proper Installation Practices

Routing Considerations: SAE 100 R8 hoses should be routed to minimize length while avoiding sharp bends below the minimum bend radius specified for each size. Where hose movement occurs during operation, additional length should be provided to accommodate motion without stressing fittings. Hose supports should be used at intervals appropriate for the installation to prevent sagging or vibration.

Bend Radius Compliance: Never install hoses with bend radius smaller than the published minimum. Bends tighter than specification concentrate stress in the reinforcement layer, reducing pressure capacity and service life. Where space constraints require tight turns, use proper fittings rather than forcing hose bends.

Twist Prevention: Ensure hoses are not twisted during installation by using appropriate swivel fittings or by orienting components to eliminate twist. Twisted hoses experience uneven stress distribution and premature failure at fittings.

Protection Measures: In applications where hose contact with abrasive surfaces is unavoidable, install protective sleeves or guards to prevent cover damage. Where hose passes through bulkheads or structural members, use proper grommets to prevent chafing.

Operating Guidelines

Pressure Monitoring: System pressures should remain within SAE 100 R8 working pressure ratings. Pressure spikes exceeding working pressure, even briefly, can accumulate damage leading to premature failure. Install pressure gauges and relief valves to prevent overpressure conditions.

Temperature Control: Monitor fluid temperatures to ensure they remain within the -40°C to +93°C range. External heat sources such as nearby hot surfaces should be shielded or hoses rerouted to prevent localized heating.

Fluid Compatibility: Maintain fluid type consistency with the hose’s compatibility profile. Changing fluid types without verifying compatibility with existing hoses may cause unexpected degradation.

Inspection and Maintenance

Regular Visual Inspection: Inspect hoses regularly for signs of cover damage, kinking, abrasion, or fluid leakage. Pay particular attention to areas near fittings where stress concentration occurs. Document inspection findings to track deterioration rates.

Service Life Management: While SAE 100 R8 hoses provide extended service life, they are not permanent components. Develop replacement schedules based on operating conditions, duty cycles, and inspection findings. Proactive replacement prevents unexpected failures.

Assembly Verification: When installing new hose assemblies, verify that crimped fittings are properly applied with correct insertion depth and crimp diameter. Improperly assembled fittings are the most common cause of premature hose assembly failure.

Frequently Asked Questions

What is the definition of SAE 100 R8 thermoplastic hydraulic hose?

SAE 100 R8 defines a thermoplastic hydraulic hose with synthetic fiber reinforcement, designed for high-pressure service with petroleum, synthetic, and water-based hydraulic fluids. The specification covers construction, performance requirements, and testing protocols for hoses operating at temperatures from -40°C to +93°C.

How does SAE 100 R8 compare to SAE 100R7?

SAE 100R7 specifies thermoplastic hoses for medium-pressure applications, while SAE 100 R8 addresses high-pressure requirements. The R8 specification requires higher working pressures, more demanding impulse testing, and construction suitable for more severe service conditions. Many applications requiring SAE 100R7 can use SAE 100 R8, but the reverse is not always true.

Can SAE 100 R8 hoses be used with wire braided hose fittings?

Fittings designed specifically for SAE 100 R8 construction should be used to ensure proper grip on the reinforcement layer. While some fitting styles may be common across multiple hose types, each hose construction requires specific fitting designs and crimp specifications for reliable performance.

Where can I download SAE 100 R8 specification PDF?

The complete SAE 100 R8 specification is available for purchase from SAE International. For convenience, we provide specification summaries and our product data sheets in downloadable PDF format on our website.

What is the typical SAE 100 R8 price range?

SAE 100 R8 pricing varies based on size, quantity, and specific requirements. As a manufacturer, we offer competitive pricing with volume discounts for bulk purchases. Contact our sales team with your requirements for current pricing.

How do I select between SAE 100 R8 and SAE 100R1 specifications?

SAE 100 R8 uses thermoplastic construction while SAE 100R1 uses rubber with wire braid reinforcement. Selection depends on fluid compatibility requirements, temperature range, weight considerations, and environmental factors. Our technical team can guide specification selection for your application.

Ready to optimize your hydraulic systems with premium SAE 100 R8 thermoplastic hydraulic hose? Contact our technical sales team today for expert selection guidance, competitive pricing, and responsive service support. Whether you need standard sizes for immediate shipment or custom solutions for unique applications, we deliver quality, reliability, and value.

Request a quote: Send your requirements including sizes, quantities, and fitting specifications for rapid response.

Request samples: Evaluate our quality firsthand with production samples representing your required specifications.

Schedule a consultation: Discuss your application with our engineering team for personalized selection recommendations.
