Washdown Hose

Product Overview

A Washdown Hose is a specialized rubber hose designed for high-temperature water cleanup in food processing environments. By definition, this hose delivers safe, efficient hot water washdown in dairies, meat packing plants, creameries, and bottling facilities. As a china-leading manufacturer, we produce this Washdown Hose to international standard EN/SAE specifications, ensuring global compatibility.

Constructed with a white EPDM tube and cover, reinforced by two layers of synthetic yarn, this Washdown Hose operates from -32°C to +82°C (-70°F to +180°F) at 150 psi working pressure. Key advantages include exceptional resistance to ozone, heat, fungus, and mould, delivering longer service life under continuous high-temperature use. It directly solves the common problem of premature hose failure in hot water applications, reducing downtime and replacement costs. Our factory holds ISO 9001 certification, and every hose is 100% tested before shipment, guaranteeing consistent quality for bulk orders.

Product Advantages

• High-Temperature Performance: Withstands continuous use up to +82°C (+180°F), ideal for hot water washdown cycles.
• Ozone & Heat Resistant: Special EPDM compound prevents cracking and hardening, even in harsh processing plant environments.
• Fungus & Mould Resistant: White cover inhibits microbial growth, maintaining hygiene standards in food zones.
• Longer Service Life: Premium materials and two-layer synthetic yarn reinforcement reduce downtime and total ownership cost.
• Safe & Cleanable: Smooth white surface is easy to inspect and sanitize, meeting FDA requirements for indirect food contact.
• Flexible & Kink-Resistant: Remains easy to handle in tight spaces, improving operator efficiency.

Applicable Users: Facility maintenance managers, food processing plant engineers, OEM equipment builders, and wholesale distributors seeking a reliable, cost-effective Washdown Hose solution.

Detailed Technical Specifications Table

Note: Not suitable for steam service. For detailed specification PDF, contact our supplier team.

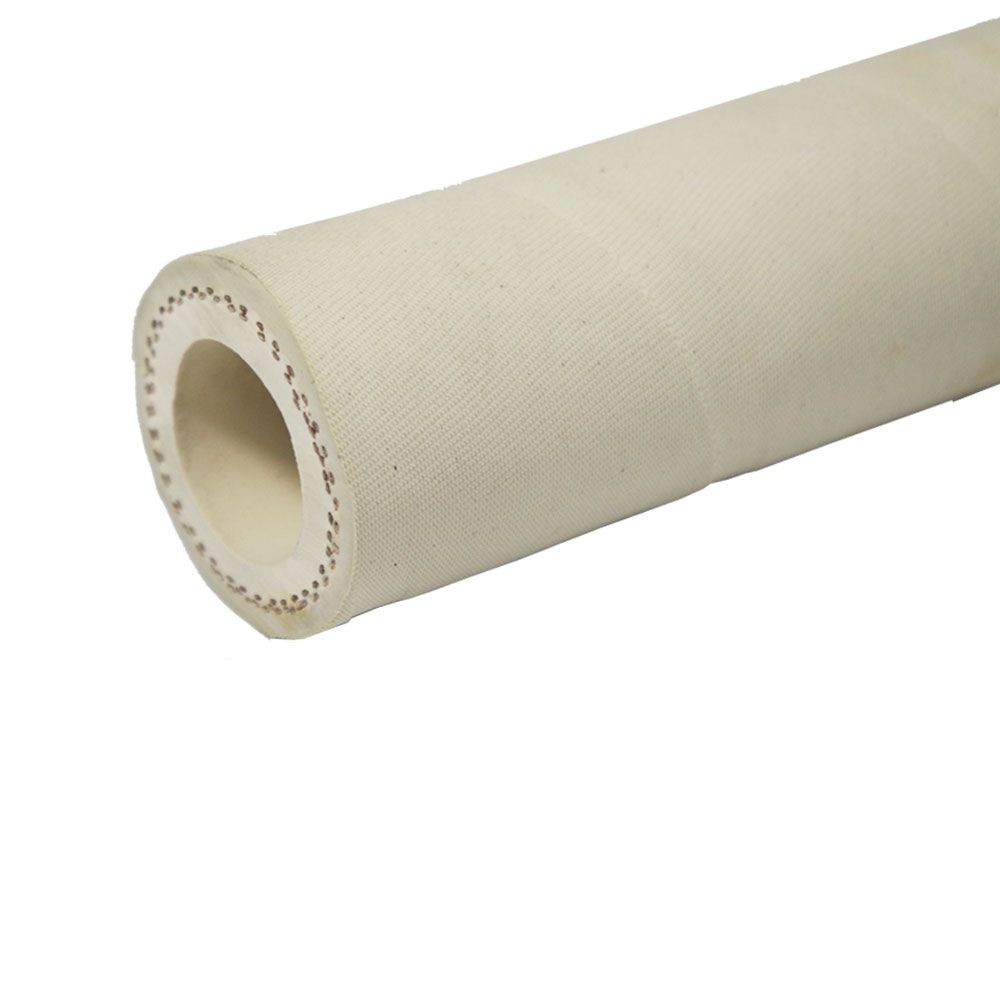

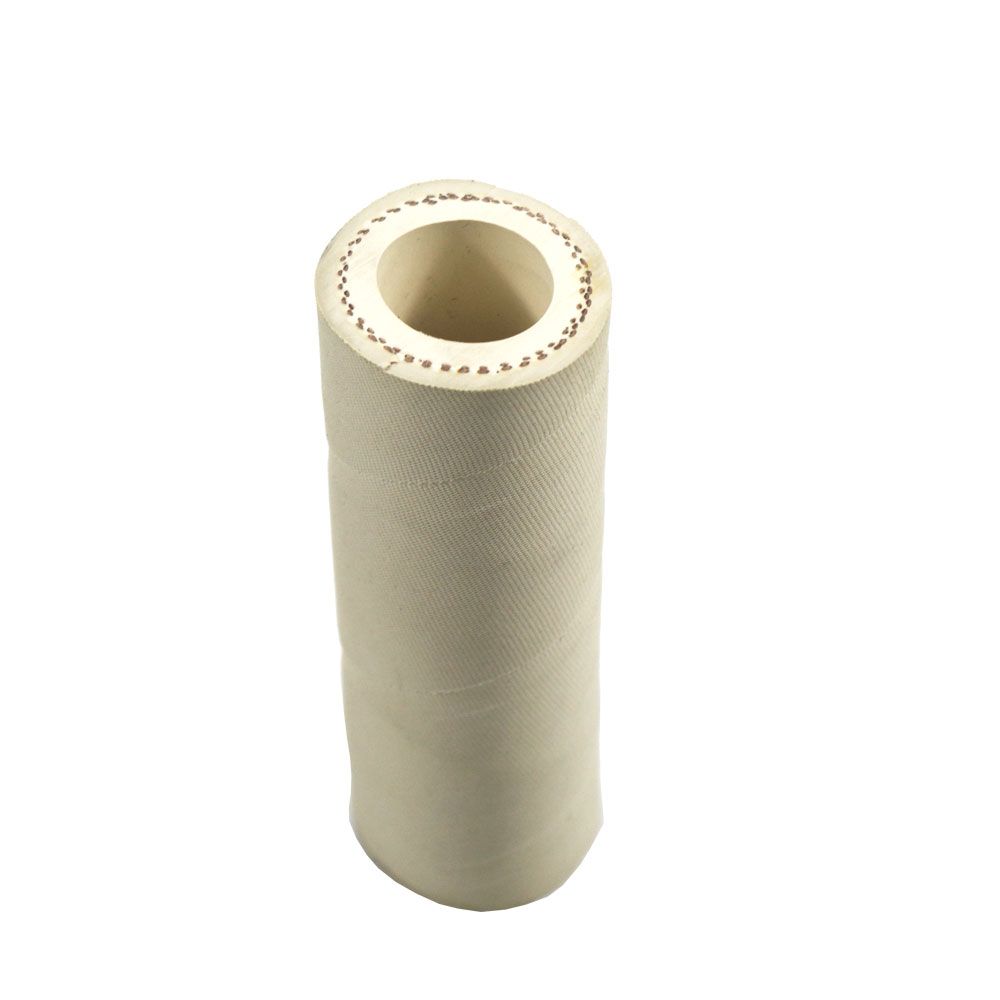

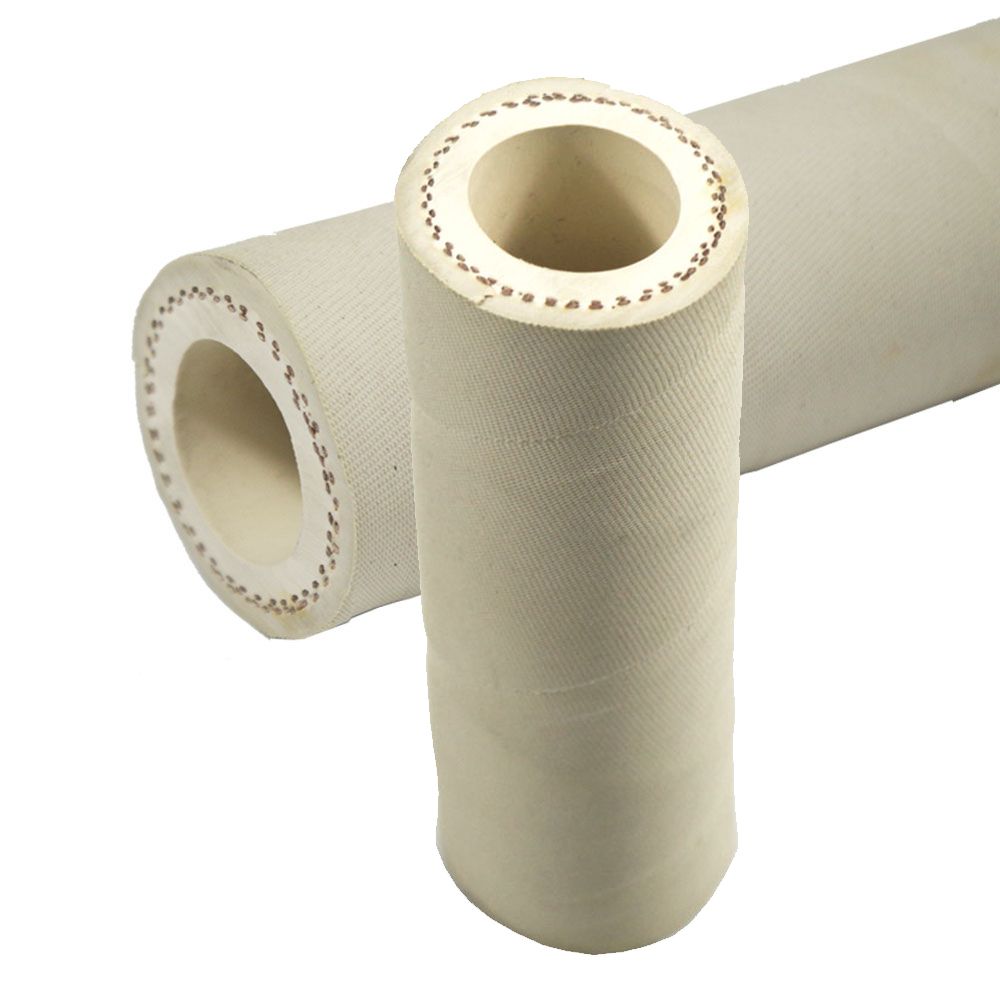

Structure and Materials

• Tube: White heat-resistant EPDM rubber compound. Ensures no taste or odor transfer to washdown water.
• Reinforcement: Two layers of high-strength synthetic yarn. Provides stable pressure resistance and kink resistance.
• Cover: White cloth impression finish, EPDM rubber compound. Resists abrasion, ozone, and cleaning chemicals. The textured surface improves grip when wet.

Application Industries

Primary Application Scenarios

• Dairies & Creameries: Hot water cleaning of milking lines, storage tanks, and filling equipment.
• Meat & Poultry Packing Houses: Daily washdown of cutting tables, conveyors, and floors.
• Food Processing Plants: General cleanup in bakeries, beverage bottling, and prepared food lines.
• Breweries & Wineries: Sanitizing hoses for tanks and transfer lines.
• Fish & Seafood Processing: Removing organic residue with high-temperature water.

Precise Selection Professional Guide

1. Hose Assembly & Fittings Integration

A Washdown Hose alone is not a complete solution. You need a proper hose assembly with correct fittings. We offer:

• Crimped fittings: Permanent, leak-free connection for high reliability.
• Reusable fittings: Field-attachable, ideal for emergency repairs or custom lengths.
• Adapters & flanges: BSP, NPT, or camlock configurations to connect to your existing system.
• Protective sleeves & guards: Added abrasion resistance and operator safety near hot surfaces.

Our in-house Assembly service provides factory-crimped, pressure-tested hoses, reducing your installation errors and downtime.

2. Washdown Hose vs. Other Hoses

3. Solving Common Pain Points

• Pain Point: “Hoses harden and crack within months near pasteurizers.”
  • Solution: Our EPDM compound is inherently heat and ozone resistant, maintaining flexibility for years.
• Pain Point: “Black rubber leaves marks on white processing equipment.”
  • Solution: The white cover eliminates marking and makes contamination visible.
• Pain Point: “Frequent hose changes increase my maintenance cost.”
  • Solution: Longer service life (up to 3x standard hoses) reduces total cost of ownership.

Technical Standards and Certifications

• Design Standard: Manufactured to international norms, exceeding EN/SAE requirements for non-steam hot water service.
• Temperature Rating: Tested from -32°C to +82°C per ISO 6803.
• Pressure Safety: Minimum burst pressure is 4 times the working pressure (600 psi), ensuring a high safety margin.
• Certifications: ISO 9001:2015 factory quality system. Materials compliant with EU REACH and RoHS.

Brand and Quality Assurance

Quality Management

As an experienced producer and exporter, our factory implements rigorous quality control:

• Incoming Material Inspection: Test EPDM rubber compounds and synthetic yarn for tensile strength and heat resistance.
• In-Process Checks: Monitor hose OD, concentricity, and cover adhesion.
• 100% Factory Testing: Every rubber hose length undergoes a hydrostatic test at 1.5x working pressure.
• Laboratory Validation: We perform burst tests, accelerated aging, and ozone resistance tests per ISO standards.

Third-Party Validation

• Certifications: ISO 9001, CE marked for pressure equipment.
• Customer Case: “Since switching to HENGHUA’s Washdown Hose, our dairy plant has reduced hose-related downtime by 60%.” – Maintenance Manager, German dairy processor.

Sustainability

• Long life = less waste: Our hoses last longer, reducing landfill contribution.
• RoHS/REACH compliant: No hazardous heavy metals or phthalates.

Installation, Operation, and Maintenance Guide

1. Storage: Keep in a cool, dry place away from ozone sources (motors, welding equipment). Do not store above +30°C.
2. Installation: Use correct crimped fittings or reusable fittings. Avoid sharp bends below the minimum bend radius (not specified, but generally >8x OD). Secure with protective sleeves in high-traffic areas.
3. Operation: Never exceed +82°C media temperature. Not for steam service. Gradually pressurize to avoid hydraulic shock.
4. Maintenance: After each use, drain and hang the hose. Inspect cover for cuts or abrasion. Replace if outer cover is damaged down to reinforcement.
5. End of Life: Dispose of EPDM rubber according to local regulations. The steel fittings can be recycled.

Frequently Asked Questions (FAQ)

Q1: Can I use this Washdown Hose for steam cleaning?
A: No. By definition, this model is NOT suitable for steam service. For steam, use a dedicated high-temperature steam hose.

Q2: What is the price and cost for bulk discount?
A: Price depends on quantity, length, and fittings. Contact our supply team for a customized quote. Wholesale and bulk discount available.

Q3: Do you offer OEM ODM services?
A: Yes. As a china-based factory and producer, we support OEM ODM branding on the hose cover and packaging.

Q4: Where can I buy or source this hose?
A: You can buy directly from us as the manufacturer or through our authorized distributor and wholesaler network. We also supply globally as an exporter.

Q5: How do I get a pdf of the full specification?
A: Request the pdf datasheet from our Service team. It includes detailed dimensions, chemical compatibility, and hose assembly instructions.

Q6: Can this hose be used as a High Pressure Hose?
A: No. This is a low-pressure (150 psi) Washdown Hose. For high pressure, see our Wire Braided Hose or Wire Spiral Hose ranges.
