EN 856 4SH Hydraulic Hose

Product Overview

The EN 856 4SH hydraulic hose is a premium high-pressure hydraulic rubber hose specifically engineered for extreme duty cycles and ultra-high pressure applications. Conforming to the rigorous EN 856 standard, this 4SH hose is the industry benchmark for systems demanding superior performance and reliability. By definition, a 4SH hose utilizes four layers of spiraled high-tensile steel wire reinforcement, distinguishing it from braided constructions like en 853 2sn and providing a superior solution for impulse-intensive environments. This wire spiral hose is constructed with a black oil-resistant synthetic rubber tube, the four-spiral steel wire reinforcement, and a weather, abrasion, and ozone-resistant synthetic rubber cover.

With a maximum working pressure reaching up to 42 MPa (6090 psi) and a broad working temperature range of -40 °C to +100 °C, the EN 856 4SH delivers unmatched performance. Its four-layer spiral design provides exceptional resistance to high-pressure pulses and mechanical stress, making it the go-to high pressure hose for heavy industries. This product solves the core problem of premature hose failure in applications where pressure spikes and constant flexing are common, ensuring longer equipment uptime and reduced maintenance costs. As a leading china based manufacturer and supplier, we ensure every meter of this rubber hose meets the highest international standards, providing you with a reliable solution for your most demanding hydraulic systems.

Product Advantages

• Ultra-High Pressure Performance: Engineered to handle the most extreme conditions, with a 4sh hose pressure rating of up to 42 MPa, ensuring system reliability.

• Superior Pulse Resistance: The four-layer spiral reinforcement design provides exceptional fatigue life, significantly outperforming standard wire braided hose under constant pressure fluctuations.

• Comprehensive Fluid Compatibility: The synthetic rubber tube is optimized for petroleum-based hydraulic fluids, ensuring long service life and minimal system contamination.

• All-Weather Durability: The rugged cover provides excellent resistance to abrasion, corrosion, ozone, and weather, making it suitable for the harshest outdoor and underground environments.

• Flexibility in High Pressure: Despite its four layers of high-strength steel, the hose maintains a level of flexibility that simplifies Assembly and routing in complex machinery.

Detailed Technical Specifications Table

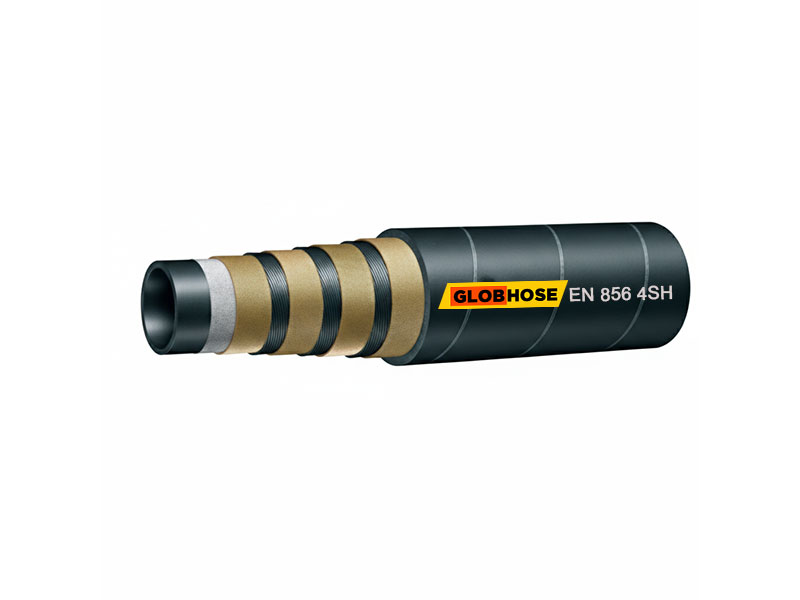

Structure and Materials

The robust performance of the EN 856 4SH hydraulic hose is a direct result of its precision-engineered layered construction:

• Tube: A seamless layer of black, oil-resistant synthetic rubber. This critical component provides a smooth barrier that is compatible with a wide range of hydraulic fluids, ensuring efficient power transmission and protecting the steel reinforcement from corrosion.

• Reinforcement: The core of its high-pressure capability. It consists of four layers of high tensile and high strength spiraled steel wire. These layers are applied at precisely calculated angles to balance radial and axial forces, providing a 4:1 safety factor (minimum burst pressure is four times the working pressure) and extraordinary resistance to impulse fatigue.

• Cover: A tough, black synthetic rubber layer that is resistant to abrasion, oil, corrosion, weather, ozone, and cutting. The cloth impression finish provides a secure grip for crimped fittings and adds to the hose’s rugged durability.

Application Industries

The EN 856 4SH is the preferred choice for engineers and procurement specialists in industries where hydraulic system failure is not an option.

• Engineering and Construction: The backbone of excavators, loaders, cranes, and concrete pump trucks, handling peak pressures during heavy lifting and digging.

• Mining and Earthmoving: Ideal for underground mining machinery, roof support systems, and large surface mining equipment where reliability and flame resistance are paramount.

• Industrial Manufacturing: Powers heavy presses, injection molding machines, and die-casting equipment requiring consistent, high-pressure performance.

• Oil and Gas: Suitable for offshore rigs and onshore drilling equipment where high-pressure lines are critical.

• Agriculture and Forestry: Used in large tractors, harvesters, and forestry equipment that operate in demanding outdoor conditions.

Precise Selection Professional Guide

It’s More Than Just a Hose: Complete Hose Assembly Solutions
To ensure zero-leak performance, the EN 856 4SH hydraulic hose can be integrated into a complete hose assembly. We provide expert service and support to create custom assemblies using precision crimped fittings. We offer a wide range of end connection options, including reusable fittings, adapters, flanges, and protective sleeves or guards to match your specific system requirements. A professionally crimped assembly guarantees the integrity of the connection, eliminating leak paths and ensuring the hose performs to its full specification.

EN 856 4SH vs. Other Standards
Understanding the difference between hose constructions is key to correct selection.

• EN 856 4SH vs. EN 856 4SP: While both are spiral hoses, the 4SP typically has a slightly different wire construction and is often used for slightly lower pressure ranges in smaller sizes. The 4SH is designed for the most demanding, high-impulse applications.

• EN 856 4SH vs. EN 853 2SN: This is a crucial distinction. en 853 2sn is a wire braided hose with two layers of braided steel. Braided hoses are flexible but are generally suited for medium-pressure applications. The en 856 4sh is a wire spiral hose. Spiral reinforcement provides superior strength and resistance to impulse fatigue, making it the necessary choice for very high-pressure systems. For a full breakdown, you can consult our technical pdf datasheets.

Technical Standards and Certifications

The EN 856 4SH hydraulic hose is manufactured and tested in strict accordance with the EN 856 standard, which is the European norm for spiral wire reinforced hydraulic hoses. This standard ensures the hose meets specific performance criteria for pressure, impulse life, and temperature range. It is also technically equivalent to ISO 3862-1 Type 4SH, ensuring global compatibility. Our manufacturing process is ISO 9001 certified, guaranteeing consistent quality and traceability from raw material to finished product.

Brand and Quality Assurance

As a premier factory and producer in China, we bring over two decades of experience to the hydraulic industry. We are more than just a distributor or wholesaler; we are a dedicated solution source and supplier committed to engineering excellence. Our quality assurance is built on a foundation of rigorous testing:

• Raw Material Inspection: Every batch of synthetic rubber and high-tensile steel wire is tested before production.

• In-Process Control: We monitor critical parameters during tube extrusion, wire spiraling, and vulcanization.

• 100% Proof Testing: Each hose, or hose assembly, is subjected to a proof pressure test (as per the table above) to verify integrity before it leaves our facility.

• Laboratory Validation: Our in-house lab continuously conducts burst tests, impulse tests (meeting EN ISO 6803 standards), and fluid compatibility tests to validate long-term performance. This commitment to quality means you can buy with confidence, knowing you are getting a product that will provide outstanding service life.

Installation, Operation, and Maintenance Guide

• Storage: Store hoses in a cool, dark, and dry environment. Avoid ozone sources like electric motors and direct sunlight.

• Installation: Never exceed the minimum bending radius. Use appropriate fittings and ensure the hose is not twisted during installation. For dynamic applications, ensure sufficient slack to accommodate length changes under pressure.

• Maintenance: Regularly inspect the hose cover for cuts, abrasion, or corrosion. Check fittings for leaks or corrosion. Replace any hose showing signs of damage or wear.

Frequently Asked Questions (FAQ)

Q: What does 4SH hose meaning?
A: In the en 856 standard, “4SH” designates a specific type of high-pressure hydraulic hose. The “4” indicates it has four layers of reinforcement, and “SH” stands for “Spiral High,” meaning it utilizes spiraled high-tensile steel wire. It is designed for very high working pressures and superior impulse resistance.

Q: What is the difference between EN 856 4SH and EN 856 4SP?
A: While both are spiral hoses, they have different construction and performance criteria. The 4SH typically has a thicker cover and different wire specifications, allowing it to handle higher working pressures in larger diameters. Always consult the manufacturer’s specification table for exact ratings.

Q: Can I get this hose with fittings already attached?
A: Yes, absolutely. We offer complete hose assembly services. We can supply the hose with crimped fittings or reusable fittings pre-installed, ensuring a perfect fit and reliable performance for your equipment.

Q: What is the minimum order quantity? Can I buy in bulk for a discount?
A: We cater to all types of customers, from small maintenance teams to large OEM ODM projects. We offer competitive wholesale price and cost options for bulk orders. Please contact our sales team with your requirements for a custom quote and information on volume discounts.

Ready to upgrade your hydraulic systems with the ultimate in high-pressure performance? Don’t let hose failure compromise your productivity. Contact our engineering team today for expert support, a competitive quote, or to discuss your custom hose assembly needs. We are here to provide the reliable solution you require.
