SAE 100 R15 Hydraulic Hose

Product Overview

The SAE 100 R15 hydraulic hose is the industry gold standard for ultra-high pressure hydraulic applications, specifically designed for petroleum-based hydraulic oils where impulse peaks are severe. Defined by the SAE J517 standard, this wire spiral hose is engineered to deliver consistent performance in the most demanding conditions, ensuring system integrity and operational safety.

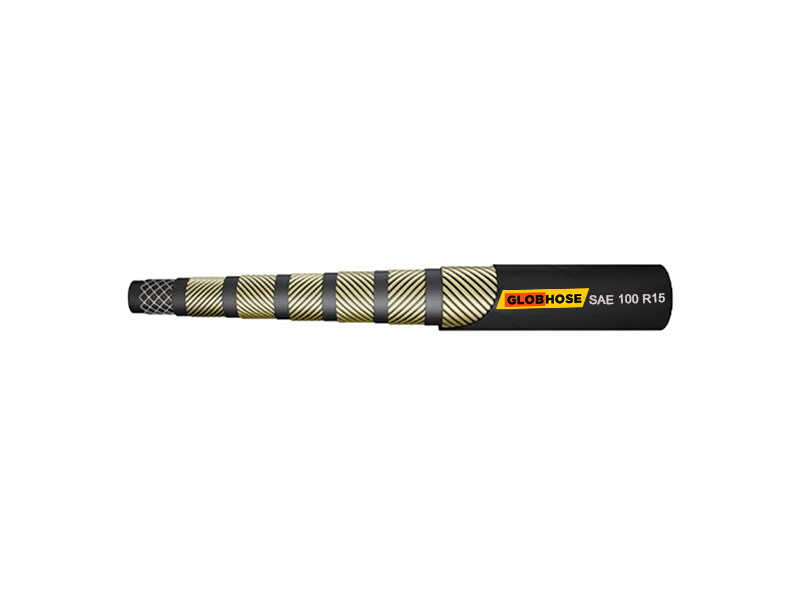

Constructed with a three-part structure, the hose features a black oil-resistant synthetic rubber tube, a high-tensile steel wire reinforcement layer, and a rugged synthetic rubber cover. This rubber hose definition highlights its specialized design to contain extreme forces while maintaining flexibility. Unlike a Wire Braided Hose, this Wire Spiral Hose utilizes multiple layers of thick spiraled steel wire wound in alternating directions to handle the highest pressures.

The key performance parameters are unmatched: it maintains a consistent working pressure of 42 MPa (6090 psi) across all sizes, with a proof pressure of 84 MPa (12180 psi) and a minimum burst pressure of 168 MPa (24360 psi). This 4:1 safety standard provides a critical safety margin. Core advantages include: 1) Ultra-High Pressure Capability for the most intense hydraulic systems. 2) Superior Impulse Resistance, engineered to exceed SAE requirements for prolonged life. 3) Wide Temperature Range, performing reliably from -40 °C to +121 °C. 4) Robust Construction, with a cover resistant to abrasion, weather, ozone, and aging.

This High Pressure Hose is the primary solution for heavy industries including construction, mining, and oil & gas. It resolves the critical pain points of system downtime and safety risks caused by hose failure under extreme pressure pulses. With rigorous quality control and adherence to international specification, every hose delivers guaranteed performance and reliability.

Product Advantages

• 4:1 Safety Factor: Engineered with a minimum burst pressure four times the working pressure (168 MPa), providing an exceptional safety margin against unexpected pressure spikes.

• Extreme Pulse Endurance: The multi-layer, alternating spiral wire design withstands over 500,000 impulse cycles, ensuring long-term reliability in applications like excavators and hydraulic presses.

• Full-Specification Compliance: Manufactured strictly to SAE 100 R15 standard, ensuring dimensional accuracy and performance interchangeability globally.

• Comprehensive Media Compatibility: The oil-resistant synthetic rubber tube is compatible with petroleum-based hydraulic oils, water-glycol, and water-oil emulsions.

• Superior Environmental Resistance: The high-quality synthetic rubber cover provides excellent protection against abrasion, corrosion, weathering, ozone, and cuts, extending hose life in harsh outdoor environments.

Detailed Technical Specifications Table

Structure and Materials

The robust performance of the SAE 100 R15 hydraulic hose is a direct result of its meticulously engineered three-part structure:

• Tube: The innermost layer is made from high-quality, black oil-resistant synthetic rubber. Its primary function is to convey the hydraulic fluid safely, ensuring low flow resistance and complete compatibility with petroleum-based oils, preventing fluid degradation or tube deterioration.

• Reinforcement: This is the core strength of the hose. It consists of multiple layers of high tensile, high strength thick spiraled steel wire. These layers are applied in alternating directions (spiraled), a critical engineering choice that balances both radial and axial forces created under pressure. This design is superior to Wire Braided Hose for ultra-high pressures, providing exceptional resistance to impulse fatigue and kinking, allowing the hose to maintain its integrity under constant, severe pressure pulses.

• Cover: The outer layer is a high-quality synthetic rubber compound, engineered for protection. It provides a rugged barrier against abrasion, corrosion, weather, ozone, aging, and cuts, ensuring the internal reinforcement remains undamaged and the hose has a long operational life.

Application Industries

The SAE 100 R15 hydraulic hose is the preferred supply choice for industries requiring uncompromising reliability and performance.

• Construction Machinery: Used in excavators, large loaders, crawler cranes, and concrete pump trucks where high-pressure bursts are common.

• Mining Equipment: Essential for roof support hydraulics, long-wall mining systems, rock drills, and heavy haul trucks operating in harsh environments.

• Industrial Manufacturing: Powers heavy injection molding machines, die casting equipment, and large presses requiring consistent, high-pressure operation.

• Oil & Gas: Suitable for offshore rigs and onshore wellhead control systems where High Pressure Hose integrity is critical for service and safety.

• Marine & Offshore: Used in steering gear, winch drives, and hatch cover systems on large vessels.

Precise Selection Professional Guide: Hose Assembly Solutions

An SAE 100 R15 hose alone is a component; a professionally manufactured hose assembly is a high-performance solution. We provide complete support to ensure your system operates leak-free.

• Matching Fittings: We offer a full range of compatible fittings, including crimped fittings and reusable fittings, in various styles such as flanges, 37° flared, BSP, and NPT threads. Selecting the correct fitting is crucial for achieving the full pressure rating of the hose. For a detailed fitting guide and specification, please request our pdf catalog.

• Protection & Accessories: Extend the life of your assemblies with our range of protective sleeves and guards designed to prevent wear in high-abrasion environments. We also supply all necessary adapters and flanges for seamless system integration.

• Custom Assembly Service: As a professional manufacturer and producer, we offer custom-length hose assembly services. Our factory uses precision crimping machines and conducts 100% pressure testing on every assembly, guaranteeing a more reliable and higher-quality product than field-assembled alternatives. This service minimizes leakage risks and reduces downtime.

Technical Standards and Certifications

Our SAE 100 R15 hydraulic hose is manufactured in China by a leading factory with a strict quality management system. We ensure every meter of hose meets or exceeds the stringent requirements of the SAE J517 standard. Our commitment to quality is backed by:

• ISO 9001:2015: Our quality management systems are certified, ensuring consistent processes and product quality.

• SAE J517 Compliance: The hose meets all dimensional, performance, and impulse test requirements of the SAE 100 R15 specification.

• Material Compliance: Our components are designed to meet relevant environmental and safety standards.

Brand and Quality Assurance

As an experienced distributor and wholesaler of hydraulic products, we understand that quality is non-negotiable. Our SAE 100 R15 hose is produced in our state-of-the-art factory using only prime raw materials. Every production batch is traceable, and we provide a comprehensive warranty on our products, reflecting our confidence in their durability and performance. We serve as a reliable exporter and supplier to global markets, offering both standard sizes and OEM ODM services to meet specific project requirements.

Quality Management: A Visual Process

Our commitment to quality is embedded in our production process:

• Incoming Material Inspection: Every batch of raw rubber and high-tensile steel wire is tested for physical properties and dimensional accuracy before being approved for production.

• In-Process Control: During the tube extrusion, wire spiraling, and final covering stages, operators continuously monitor critical parameters like concentricity and layer adhesion.

• 100% Proof Pressure Test: As a standard part of our service, every finished hose or hose assembly is subjected to a proof pressure test at 50% of the minimum burst pressure to verify integrity before it leaves our facility. This is a key step often overlooked by other supply sources.

• Laboratory Verification: Our in-house lab regularly conducts destructive tests, including burst tests up to 168 MPa and impulse cycle tests, to ensure continuous compliance with the sae 100r15 specifications. This data-driven approach confirms our product’s high quality.

Installation, Operation, and Maintenance Guide

To maximize the life of your SAE 100 R15 hose, follow these best practices:

1. Installation: Avoid twisting the hose during installation. Use the minimum bend radius as a guide, not a working limit; always strive for a larger radius. Ensure hose runs are adequately supported to prevent sagging and chafing.

2. Operation: Operate within the specified temperature and pressure limits. Protect the hose from external heat sources and sharp objects.

3. Maintenance: Regularly inspect hoses for signs of cover abrasion, cuts, leaks, or kinking. Replace any hose that shows signs of damage or has reached its recommended service life. When replacement is needed, ensure you use genuine SAE 100 R15 products.

Frequently Asked Questions (FAQ)

Q: What is the difference between SAE 100 R15 and SAE 100 R13?
A: Both are wire spiral hoses for high pressure, but R15 has a higher maximum working pressure (42 MPa vs. 34.5 MPa for R13) and a tighter minimum bend radius, making it suitable for more compact, higher-pressure systems.

Q: What is the SAE 100 R15 working pressure?
A: The constant working pressure for all sizes of SAE 100 R15 hose is 42 MPa (6090 psi).

Q: Can I buy this hose in bulk to get a discount?
A: Yes, we offer competitive price and cost advantages for bulk orders. Please contact us for a quote based on your required quantity.

Q: Does the SAE 100 R15 hose come with a warranty?
A: Absolutely. We stand behind the quality of our rubber hose. All our products come with a comprehensive manufacturer’s warranty against defects in materials and workmanship.

Q: Where can I find the detailed sae 100r15 specifications?
A: You can download the full technical specification sheet, including detailed dimensions and performance data, in pdf format from our website or by requesting it from our sales team.

Ensure the safety and efficiency of your high-pressure hydraulic systems with our premium SAE 100 R15 hydraulic hose. Whether you need a standard length, a custom hose assembly, or a bulk supply for a large project, we are your trusted partner.

Contact Us Today for a quote or to discuss your specific requirements with our engineering team.
