SAE 100 R19 Hydraulic Hose

Product Overview

The SAE 100 R19 hydraulic hose represents a specialized category in fluid power transmission, designed for high-pressure applications where space is at a premium. Strictly manufactured to the SAE 100 R19 standard, this hose is defined as a compact, high-pressure, wire-reinforced rubber hose for hydraulic systems using petroleum- or water-based fluids. It is the go-to solution when you need the performance of a larger hose in a tighter space.

Its core construction consists of a seamless, oil-resistant synthetic rubber inner tube, a single layer of high-tensile steel wire reinforcement, and an oil- and weather-resistant synthetic rubber cover. While its maximum working pressure is a consistent 28 MPa across all sizes, the key performance highlight is its compactness. As detailed in the sae 100 hose specifications, the R19 type features a smaller outer diameter than traditional hoses like SAE 100 R1, allowing for routing in confined spaces without sacrificing pressure capacity.

The primary advantage of choosing a SAE 100 R19 hydraulic hose is its unique blend of high pressure and flexibility. It solves the critical pain point of hose failure due to tight bends and limited installation space, common in modern, compact machinery. Backed by rigorous testing and quality assurance from a professional china manufacturer, this hose delivers reliable service, minimizing downtime and maintenance costs in demanding environments. Whether you are a project materials buyer for a construction firm or a facility maintenance manager, this hose offers a dependable, space-saving solution.

Product Advantages

• Space-Saving Compact Design: Engineered with a maximum reinforcement diameter significantly smaller than standard hoses, the SAE 100 R19 is ideal for applications with tight routing constraints. This compact build simplifies installation in complex hydraulic systems.

• Consistent 28 MPa High-Pressure Rating: Delivers a reliable 28 MPa working pressure across all dash sizes from -3 to -16, ensuring robust performance for medium to high-pressure hydraulic applications without the bulk of multi-layer spiral hose.

• Excellent Flexibility and Bend Radius: With a minimum bend radius as tight as 45mm for the -3 size, this wire braided hose offers superior flexibility, reducing stress on the hose assembly and simplifying installation around obstacles.

• Superior Oil and Weather Resistance: The specially compounded inner tube and outer cover provide excellent resistance to hydraulic oils, synthetic lubricants, and weathering, ensuring long-term durability and preventing costly leaks.

• Versatile Application Range: Perfect for use in compact construction machinery, agricultural equipment, material handling, and machine tools where space is limited but high pressure is required.

Detailed Technical Specifications Table

All dimensions are in millimeters unless otherwise noted. Working Pressure (W.P.) is in MPa.

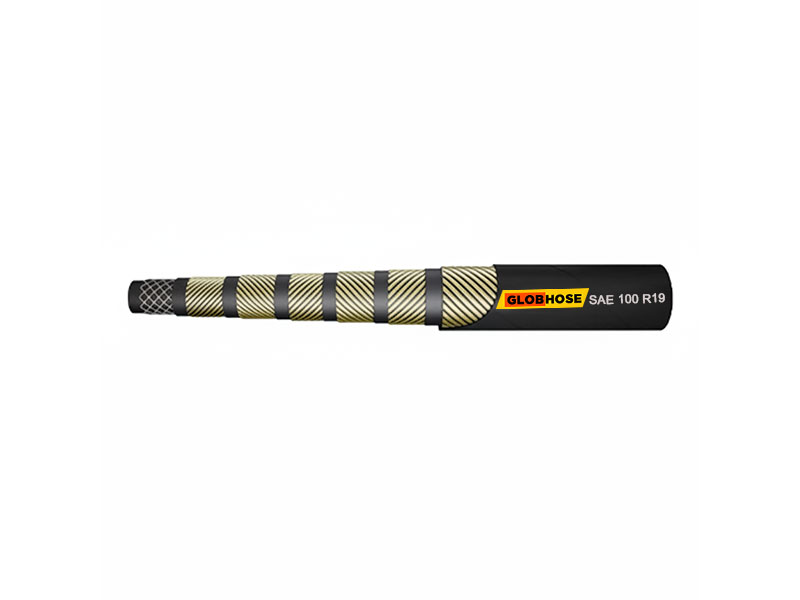

Structure and Materials

The performance and reliability of the SAE 100 R19 hydraulic hose are a direct result of its precisely engineered material layers:

• Inner Tube: A seamless layer of oil-resistant synthetic rubber hose compound. This critical component ensures compatibility with a wide range of hydraulic fluids, minimizes fluid friction, and provides a smooth, leak-proof medium for power transmission. It directly addresses the industry need for reliable containment of petroleum-based and water-based fluids.

• Reinforcement: A single layer of high-tensile steel wire braid. Unlike wire spiral hose used for extreme pressures, the braided construction of R19 provides an optimal balance of strength, flexibility, and fatigue resistance for its intended pressure range. The precise braid angle is engineered to handle both pressure-induced radial and axial stresses, giving this high pressure hose a minimum burst pressure of four times the working pressure (112 MPa), meeting the stringent sae hose standards.

• Outer Cover: A durable, synthetic rubber cover, resistant to oil, weather, abrasion, and ozone. This layer protects the steel reinforcement from environmental damage and physical wear, extending the hose’s operational life in demanding outdoor or industrial settings. For added safety, protective sleeves and guards can be installed in high-abrasion areas.

Application Industries

Key Application Scenarios

The compact nature and high-pressure rating of this hose make it a versatile component across multiple industries:

• Construction Machinery: Ideal for the tight hydraulic lines of mini-excavators, compact loaders, skid-steer loaders, and small backhoes where space is at a premium.

• Agricultural Equipment: Perfect for use in small to mid-sized tractors, combine harvesters, and balers, particularly in folding mechanisms and auxiliary hydraulic circuits.

• Material Handling: Commonly found in the mast, carriage, and hose reels of forklifts and pallet jacks, where constant flexing and tight bends are the norm.

• Industrial Machine Tools: Used in the hydraulic systems of injection molding machines, presses, and robotics where precise control and reliable power delivery are essential.

• Mobile Hydraulic Systems: Suitable for various applications in utility vehicles, cranes, and truck-mounted equipment.

Complete Hose Assembly Solutions

SAE 100 R19 is more than just a hose; it’s a critical component of a reliable hose assembly. Our support goes beyond the product to provide a complete solution for your hydraulic system needs.

• Fitting Compatibility: This hose is designed for use with a variety of crimped fittings. We can supply assemblies with crimped fittings in various styles, including BSP, NPT, JIC (37° flare), and flange heads (e.g., Code 61/62), or with reusable fittings for field repairs. We also offer adapters and flanges to connect your assembly seamlessly into existing systems.

• Professional Assembly Service: We don’t just supply hose; we offer complete assembly service. Our factory utilizes precision cutting, skiving, and crimping machines, followed by 100% pressure testing of every assembly. This guarantees a reliable, leak-free hose assembly that outperforms field-assembled alternatives. Choosing our factory-pre-made assemblies is a cost-effective way to ensure safety and reliability, reducing the total cost of ownership.

• Custom Solutions: As a full-service supplier and distributor, we offer OEM ODM services to create custom hose lengths and assemblies tailored to your exact specifications, whether you need a single piece or bulk quantities.

Precise Selection Professional Guide

1. SAE 100 R19 vs. SAE 100 R16 vs. SAE 100 R1

A common point of confusion is the difference between these SAE types. While all are one-wire braid hoses, the key differentiator is compactness. The SAE 100 R19 specification defines a tighter reinforcement diameter and overall outer diameter than SAE 100 R1 (Type AT) for the same hose size. SAE 100 R16 is another compact one-wire braid hose but with different impulse test requirements and bend radii. R19 is often the most compact option, making it the best choice for the most space-constrained applications. Always refer to the sae 100 standard pdf for the definitive technical differences.

2. Solving Industry Pain Points

• The Problem: Frequent hose failure on forklift masts due to tight, constant flexing.

  • The Solution: The exceptional flexibility and tight bend radius of our SAE 100 R19 hydraulic hose dramatically reduce stress at the bend points, extending service life and preventing unexpected breakdowns.

• The Problem: Difficult installation of hydraulic lines in compact European-designed machinery.

  • The Solution: The smaller OD of our R19 hose allows it to be routed through the same tight spaces as the original equipment, simplifying replacement and ensuring a proper fit without modification.

• The Problem: Concerns about hose reliability in cold storage or winter conditions.

  • The Solution: Our synthetic rubber cover and tube are formulated to remain flexible in low temperatures, ensuring reliable system startup and preventing hose cracking, a key benefit compared to inferior rubber hose options.

Technical Standards and Certifications

Our SAE 100 R19 hydraulic hose is manufactured and tested in strict accordance with international standards to ensure top-tier performance and safety.

• SAE International: Meets or exceeds all requirements of the SAE 100 R19 standard, including construction, dimensions, and pressure ratings.

• ISO 1436: Conforms to the ISO 1436 standard for rubber hoses and hose assemblies for wire-braided, compact-type hydraulic hoses.

• 100% Factory Tested: Every production length is pressure-tested to ensure integrity before leaving our factory.

• Material Compliance: Our components are designed to meet relevant environmental and safety regulations, ensuring they are safe for use in various global markets.

Brand and Quality Assurance

As a leading manufacturer and exporter in China, we bring decades of experience to the production of every meter of SAE 100 R19 hydraulic hose. Our commitment to quality is embedded in our processes.

• Visualized Production & Testing:

  • Incoming Material Inspection: Every batch of synthetic rubber and high-tensile steel wire is rigorously tested to verify it meets our strict specifications.

  • In-Process Control: Throughout the extrusion, braiding, and vulcanization processes, our technicians continuously monitor key parameters to ensure consistency.

  • 100% Proof Testing: Every finished hose and assembly undergoes a proof pressure test (typically 50% or 100% above working pressure) to verify integrity before it is packaged, ensuring you receive a product that is ready for reliable service.

  • Laboratory Verification: Our in-house lab regularly conducts burst tests, impulse tests (simulating millions of pressure cycles), and fluid compatibility tests to validate long-term performance and compliance with sae hose standards.

• Partner with a Reliable Source:
  When you choose us as your supplier, you are partnering with a company that values long-term relationships. Whether you are a wholesaler looking for bulk orders, an exporter serving global markets, or a local distributor needing reliable supply, we have the capacity and expertise to meet your needs. We offer competitive price points without compromising on quality, and we are prepared to discuss OEM ODM projects to develop custom products. Our team is ready to provide the service and support you require. Contact us today to buy with confidence.

Installation, Operation, and Maintenance Guide

• Storage: Store hose in a cool, dry, dark place away from ozone sources (like electric motors), direct sunlight, and chemicals. Use within recommended shelf life guidelines (typically 5-7 years from manufacturing date).

• Handling & Installation: Avoid twisting the hose during installation. Use a swivel adapter if necessary. Ensure the bend radius never falls below the specified minimum value. Use protective sleeves, guards, or clamps in areas subject to abrasion or excessive movement to prevent external damage.

• Operation: Operate within the specified temperature and pressure limits. Avoid sudden pressure spikes that can exceed the maximum working pressure.

• Maintenance: Inspect hoses regularly for signs of wear, abrasion, leaks, kinking, or cover blistering. Replace any damaged hose immediately. Always relieve system pressure before inspecting or replacing hydraulic components.

Frequently Asked Questions (FAQ)

Q: What is the definition of SAE 100 R19?
A: The definition of SAE 100 R19 is a standard for a compact, high-pressure, one-wire braid reinforced rubber hydraulic hose, designed for applications requiring a smaller outer diameter than standard one-wire hoses.

Q: Can I get a pdf of the SAE 100 R19 specification?
A: While we cannot distribute the official copyrighted SAE document, we can provide a detailed specification sheet based on the standard. Our technical team is also available to answer any specific questions about the standard’s requirements. Please contact us for more details.

Q: What fittings are compatible with this SAE 100 R19 hose?
A: This hose is compatible with a range of crimped fittings and reusable fittings designed for one-wire braid hoses with a compact cover. We can supply complete assemblies with crimped BSP, NPT, and JIC fittings, or provide the hose and fittings separately.

Q: What is the difference between SAE 100 R19 and SAE 100 R2?
A: The main difference is the reinforcement. SAE 100 R19 uses a single layer of wire braid and is designed for high-pressure applications in tight spaces. SAE 100 R2, on the other hand, uses two layers of wire braid for higher working pressures in larger sizes. They serve different application requirements.

Q: Do you offer discounts for bulk orders?
A: Yes, as a leading wholesaler and supplier, we offer competitive pricing and discount structures for bulk purchases. Please contact our sales team with your requirements for a formal quotation.

Contact Us for a Quote

Ready to enhance the reliability and performance of your hydraulic systems with our premium SAE 100 R19 hydraulic hose? Contact us today to discuss your project, request a price, or get expert technical support.
