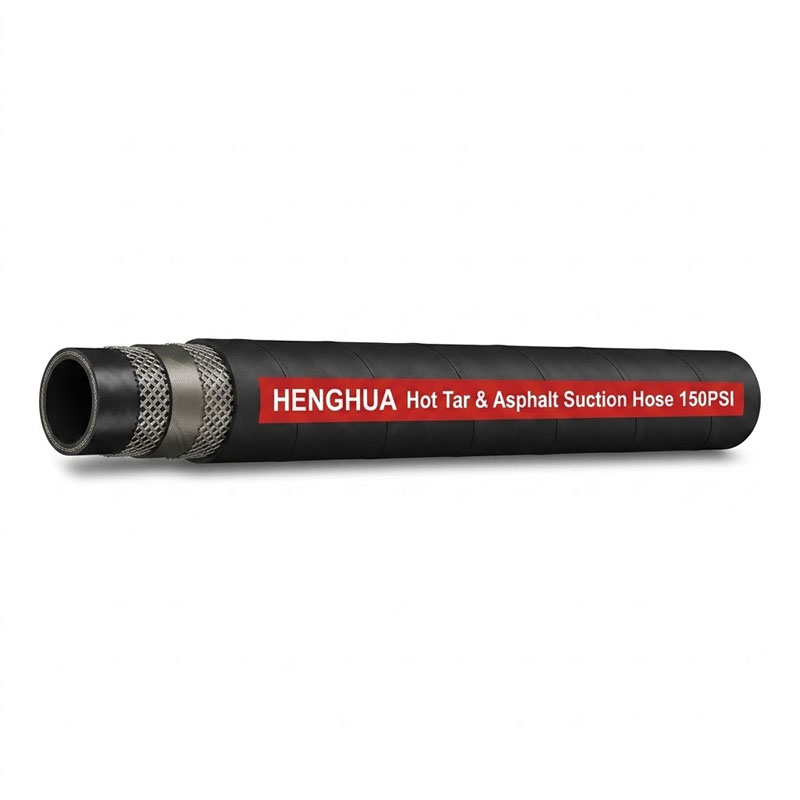

Hot Tar & Asphalt Hose (150 PSI)
An asphalt hose (also called a hot tar hose or bitumen hose) is a specialized high-temperature rubber hose designed for transferring hot asphalt, tar, and bitumen at continuous temperatures up to 180°C (356°F). Unlike standard High Pressure Hose or Wire Braided Hose, this asphalt hose is engineered to resist thermal aging, vacuum collapse, and static buildup. As a professional asphalt hose manufacturer and china-based factory, we supply this hose according to international standard EN 1765. This definition makes it the correct solution for road construction, asphalt plants, and tanker trucks where general-purpose hoses fail.
Summary for engineers: An asphalt hose is a high-temperature, steel wire reinforced rubber hose used for transferring hot asphalt, bitumen, and tar in industrial applications. It is designed for both suction and discharge, with anti-static protection, full vacuum capability, and temperature resistance up to 180°C.
Key Features of This Asphalt Hose
Why is this bitumen hose superior to standard rubber hoses? It offers five critical advantages for hot asphalt transfer:
- Extreme Temperature Stability: Operates continuously from -40°C to +180°C without hardening or cracking.
- Full Suction Capability: Embedded steel wire helix prevents kinking or collapse under vacuum, making it a true asphalt suction hose.
- Anti-Static Safety: Embedded wires dissipate static charge during high-flow transfer, a critical safety feature.
- High Abrasion Cover: The synthetic elastomer cover resists ozone, weather, and job site abrasion.
- Complete Assembly Support: Available as a bare hose or finished hose assembly with crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards.
Technical Specifications (Asphalt Hose 150 PSI)
This hot asphalt transfer hose meets demanding performance requirements. The following table shows standard sizes of our asphalt hose (150 PSI) , including inner diameter, outer diameter, working pressure, and burst pressure.
| Code | I.D (inch) | I.D (mm) | O.D (mm) | W.P (bar/psi) | B.P (bar/psi) | Length (m/ft) |
|---|---|---|---|---|---|---|
| HTSH051 | 2″ | 50.8 | 69 | 10 / 150 | 30 / 450 | 61 / 200 |
| HTSH076 | 3″ | 76.2 | 96 | 10 / 150 | 30 / 450 | 61 / 200 |
| HTSH102 | 4″ | 101.6 | 122 | 10 / 150 | 30 / 450 | 61 / 200 |
Download the full pdf specification for chemical resistance data, bending radii, and engineering drawings.
Structure & Materials (Why This Asphalt Hose Works)
- Tube: Black, smooth, special elastomer compound. Resists hot bitumen and tar without swelling or degrading.
- Reinforcement: 2 or 4 layers high tensile cord + steel wire helix + anti-static wires.
- Cover: Black, wrapped finish, synthetic elastomer. High abrasion, ozone & weather resistance.
Asphalt Hose Applications (Where This Asphalt Hose Is Used)
This bitumen transfer hose is the standard choice for:
- Asphalt Tanker Loading/Unloading: Suction and discharge lines for tanker trucks (ideal asphalt hose for tanker truck).
- Bitumen Storage Tank Transfer: Connecting storage to processing units.
- Asphalt Spray Truck Systems: Feeds for spray bars on paving machines.
- Roofing Kettles: Hot tar supply for built-up roof (BUR) applicators.
- Hot Mix Asphalt Plants: Transfer between storage, mixers, and load-out bays.
Asphalt Hose vs. Oil Hose (Comparison Guide)
A common search is: Why does standard oil hose fail in asphalt applications? Here is the direct comparison.
| Feature | Asphalt Hose (150 PSI) | Standard Oil Suction Hose |
|---|---|---|
| Max Continuous Temp | 180°C (356°F) | 100°C (212°F) |
| Cover Material | Heat-aged, ozone-resistant compound | Standard NBR/PVC (hardens rapidly) |
| Vacuum Rating | Full vacuum (steel wire helix) | Limited (fabric reinforcement) |
| Static Protection | Mandatory anti-static wire | Optional or absent |
| Service Life in Asphalt | 12-24 months | 1-4 weeks (cracking/blowout) |
How to Choose the Right Asphalt Hose (Buyer’s Guide)
When you buy an asphalt hose, consider these three factors:
- Temperature: Verify the hose matches your maximum operating temperature (our asphalt hose: -40°C to +180°C).
- Pressure & Vacuum: For asphalt suction hose duty, ensure a steel wire helix is present.
- Fittings & Assembly: For maximum reliability, order a factory-crimped hose assembly. We provide crimped fittings, reusable fittings, adapters, and flanges to match your camlock or threaded connections.
We are a direct asphalt hose factory, producer, and exporter. For wholesale, bulk, or OEM ODM orders, contact us for asphalt hose price and discount pricing.
About the Asphalt Hose Manufacturer (HENGHUA)
Who makes this asphalt hose? HENGHUA is a professional asphalt hose supplier and manufacturer with over 18 years of experience. Our factory produces industrial asphalt hose exported to 30+ countries, including the US, Middle East, India, and Southeast Asia. We hold ISO 9001:2015 certification and test every hose under EN 1765 standards. Our asphalt hose is used by major asphalt plants and road contractors worldwide. As a true china asphalt hose factory, we control every step from compound mixing to final pressure testing.
FAQ
Q: What temperature can an asphalt hose handle?
A: A high-quality asphalt hose can handle continuous temperatures up to 180°C (356°F), with specialized rubber compounds designed to resist thermal aging and maintain flexibility.
Q: What hose is best for hot asphalt transfer?
A: The best hose for hot asphalt transfer is a steel wire reinforced asphalt hose with anti-static properties and a temperature rating of at least 180°C, designed for both suction and discharge. Our Hot Tar & Asphalt Hose 150PSI meets exactly this specification.
Q: Can I use a standard hydraulic hose for hot bitumen?
A: No. Standard Wire Spiral Hose or wire braided hydraulic hose for hydraulics uses a tube compound not rated for 180°C asphalt. It will swell, blister, and fail quickly.
Q: Why does my asphalt hose keep cracking?
A: Cracking indicates either a cover not rated for high temperature or ozone attack. Our asphalt hose cover is specifically compounded for hot asphalt and weather resistance. Using protective sleeves on high-friction areas further extends life.
Q: How do I buy asphalt hose in bulk?
A: As a direct asphalt hose manufacturer, we support bulk and wholesale orders. Contact us for asphalt hose price and OEM ODM branding options.
Need a reliable source for high-temperature asphalt hose? As a leading asphalt hose supplier, distributor, and exporter, HENGHUA provides complete Service, Support, and Solution. We offer free engineering consultation, custom hose assembly with crimped fittings, and global logistics. Buy asphalt hose directly from the factory to reduce cost and ensure quality. Contact us for asphalt hose 150 psi quotes, technical support, and project pricing.
