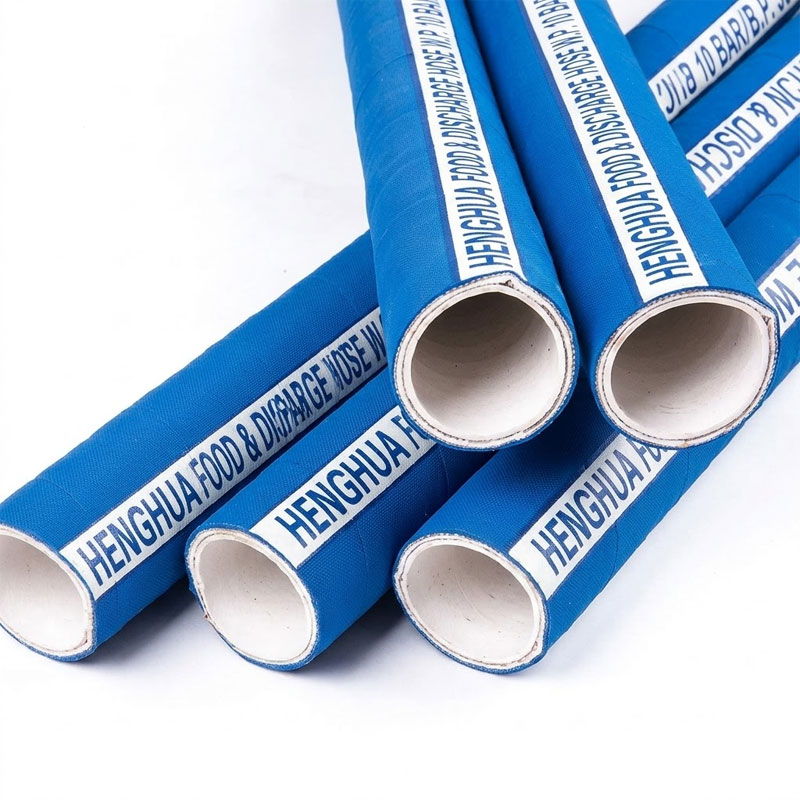

Food Discharge Hose 150Psi

Product Overview

The food discharge hose 150Psi is a specialized synthetic rubber hose designed for the safe, clean, and efficient transfer of edible liquids including milk, juice, beer, edible oil, and dairy products. As a critical component in food processing and beverage handling systems, this hose meets strict FDA requirements for food contact. Manufactured by a professional rubber hosesupplier in China, it provides a reliable solution for facilities requiring hygienic material transfer.

The construction features a smooth white tube made from NR, NBR, or EPDM food-quality rubber, reinforced with high-strength synthetic fabric, and finished with a smooth, weather-resistant synthetic rubber cover in blue or white. This combination ensures the hose maintains product purity while delivering consistent mechanical performance.

Key parameters include a working pressure of 150Psi (10bar) and a burst pressure of 450Psi (30bar), with a temperature range from -32°C (-90°F) to 80°C (+176°F). Standard lengths are 61 meters (200 feet). The specification covers IDs from 1/2 inch to 4 inch.

Core advantages include FDA approval for food safety, excellent flexibility for easy handling, resistance to weathering for outdoor or wash-down environments, and smooth bore design to minimize flow resistance and prevent bacterial growth. This food discharge hose 150Psi directly addresses the pain points of food safety compliance, product contamination risk, frequent hose replacement due to weathering or cleaning chemicals, and the need for traceable, certifiable components in regulated industries.

Primary applications include dairies, breweries, juice processing plants, edible oil bottling lines, and food ingredient transfer stations. The hose is also suitable for ship-to-shore food transfers and tanker truck loading/unloading. Quality commitments include 100% pressure testing at the factory, full material traceability, and compliance with international food contact standards. As a manufacturer and producer, we provide complete support including hose assembly, crimped fittings, and OEM ODM options.

Product Advantages

• FDA Food Grade Compliance: White smooth tube made from NR, NBR, or EPDM food-quality rubber ensures no taste transfer or contamination, fully approved for food contact applications.
• High Strength Fabric Reinforcement: High-strength synthetic fabric provides excellent dimensional stability and resistance to pressure surges, enabling the 150Psi working pressure and 450Psi burst pressure.
• Weather and Wash-Down Resistant Cover: Blue or white smooth synthetic rubber cover resists weathering, ozone, and cleaning agents, ensuring long service life even in frequent wash-down environments.
• Wide Temperature Range: Operates reliably from -32°C (-90°F) to 80°C (+176°F), suitable for cold storage to hot CIP cleaning processes.
• Broad Size Availability: Available from 1/2 inch to 4 inch ID, allowing one standardized supply chain for multiple transfer lines.
• Flexible and Easy to Handle: Smooth wrapped finish and optimized wall thickness provide good bend radius, reducing operator fatigue and installation space requirements.

Applicable Users

• Food and beverage processing plants (dairy, juice, beer, edible oil)
• Tanker truck and railcar loading/unloading stations
• Ship-to-shore food transfer terminals
• Catering and institutional food service operations
• Pharmaceutical and cosmetic liquid transfer (non-oil based)

Detailed Technical Specifications Table

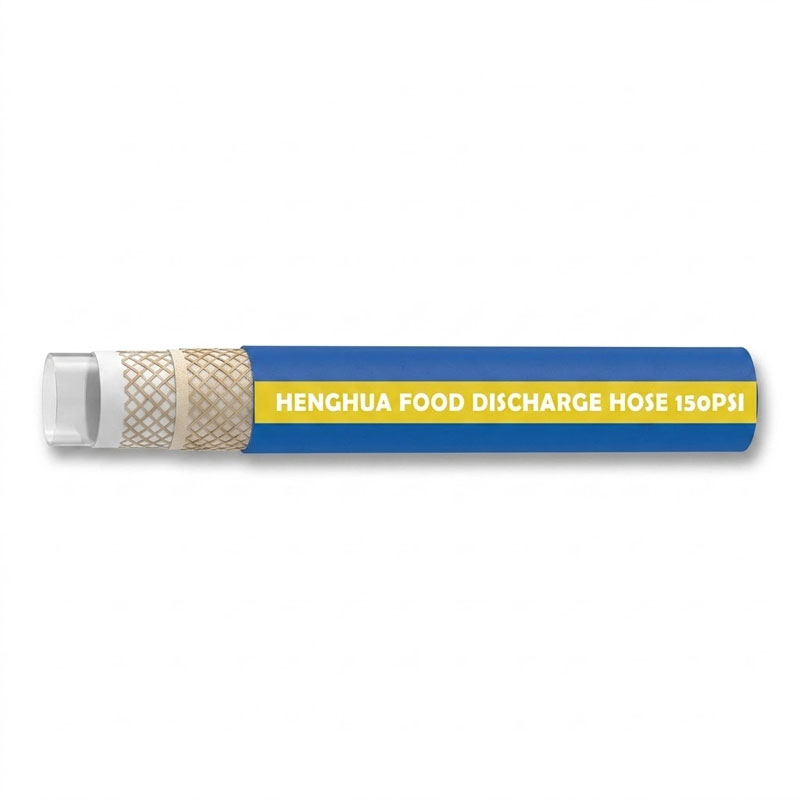

Structure and Materials

• Tube (Inner Layer): White, smooth, made from NR, NBR, or EPDM food quality rubber. The smooth bore minimizes flow resistance and prevents particle entrapment, while the food-grade compound ensures no leaching or taste transfer.
• Reinforcement (Middle Layer): High-strength synthetic fabric woven in a balanced pattern. This provides the mechanical strength to handle 150Psi working pressure and 450Psi burst pressure, while maintaining flexibility. Unlike Wire Braided Hose or Wire Spiral Hose used for High Pressure Hose applications (typically 3000Psi+), this textile-reinforced construction is ideal for medium-pressure food transfer where flexibility and non-toxicity are prioritized over extreme pressure capacity.
• Cover (Outer Layer): Smooth wrapped finish synthetic rubber, available in blue or white, weathering resistant. The cover protects against ozone, UV, and repeated wash-downs with sanitizing chemicals, extending hose life in food plant environments.

Deep Technical Insight: Why Textile Reinforcement for 150Psi Food Hose?

Unlike hydraulic applications requiring Wire Braided Hose or Wire Spiral Hose for 3000-6000Psi, food discharge applications operate at lower pressures (150Psi) but demand flexibility, non-toxicity, and smooth bore finish. The high-strength synthetic fabric reinforcement provides:

• Balanced stress distribution: The fabric weave evenly distributes pressure-induced hoop and axial stresses.
• Superior flexibility: Textile reinforcement allows tighter bend radii than wire-reinforced alternatives, critical for manual handling and hose reel storage.
• No risk of wire exposure: Eliminates potential contamination from broken steel wires.
• 4:1 safety factor: The 450Psi burst pressure against 150Psi working pressure meets international safety standards for food processing equipment.

Application Industries

Primary Application Scenarios

• Dairy Processing: Raw milk transfer from tankers to silos, pasteurized milk filling lines, CIP return lines.
• Breweries & Wineries: Beer transfer between fermentation tanks and bright beer tanks, juice transfer, wine must handling.
• Edible Oil Production: Crude and refined oil transfer, filling machine supply lines.
• Beverage Plants: Soft drink concentrate transfer, juice blending lines, syrup handling.
• Food Ingredient Transfer: Liquid sugar, corn syrup, flavor concentrates, food-grade chemicals.
• Pharmaceutical & Cosmetic: Non-oil based liquid transfer where FDA compliance is required.

Precise Selection Professional Guide

Hose Assembly & Fittings Integration

This food discharge hose 150Psi can be supplied as bulk hose or as a complete hose assembly with your choice of crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards.

Fitting Compatibility Guide:

Factory Assembly Advantage: Hoses assembled at our facility undergo pressure testing and fitting retention verification before shipment, ensuring leak-free performance and reducing field assembly errors.

Food Discharge Hose 150Psi vs. Other Hose Types

Solution to Industry Pain Points

• Dairy Plant Contamination Risk: The smooth white non-porous tube prevents bacterial harborage and is easy to clean, validated by FDA compliance.
• Outdoor Tanker Unloading in Weather: The weathering-resistant blue/white cover resists ozone cracking and UV degradation, maintaining flexibility for 5+ years in outdoor service.
• Frequent Wash-Down Environments: The smooth cover does not trap water or cleaning agents, reducing cover degradation from repeated CIP cycles.

Technical Standards and Certifications

• FDA 21 CFR 177.2600: Approved for food contact (repetitive use)
• Working Pressure: 150Psi (10bar) with 4:1 safety factor (450Psi burst)
• Temperature Range: -32°C (-90°F) to 80°C (+176°F)
• Manufacturing Standard: Internally controlled food hose specification meeting or exceeding industry requirements for food transfer
• Length: Standard 61 meters (200 feet) per coil, customizable

Brand and Quality Assurance

As a professional rubber hosemanufacturer based in China, we combine over a decade of engineering experience with strict quality management. Our factory operates ISO 9001-certified processes from raw material compounding to final pressure testing.

Quality Management System:

• Raw Material Incoming Inspection: Each batch of NR, NBR, EPDM rubber and synthetic fabric is tested for hardness, tensile strength, and food-grade compliance before production.
• Online Process Control: During tube extrusion, reinforcement application, and cover extrusion, dimensional and visual checks are performed at 30-minute intervals.
• 100% Factory Testing: Every completed hose coil is hydrostatically tested at 1.5x working pressure (225Psi) for 2 minutes with no pressure drop allowed.
• Laboratory Validation: Random samples from each batch undergo burst testing (to verify 450Psi minimum), accelerated weathering (500 hours UV exposure), and food contact extraction testing per FDA protocols.

Third-Party Certifications & Customer Evidence:

• ISO 9001:2015 certified quality management system
• FDA food contact compliance letter available upon request
• Customer case: A mid-sized dairy processor in California replaced their non-certified hose with our food discharge hose 150Psi and reported zero taste contamination issues over 18 months of daily raw milk transfer.

Sustainability & Compliance:

• All rubber compounds are REACH compliant (no SVHC above threshold)
• RoHS compliant for restricted substances
• The hose construction is fully recyclable through industrial rubber recycling programs

Installation, Operation, and Maintenance Guide

Installation:

1. Ensure hose ID matches your flow rate requirements (refer to specification table)
2. Use only stainless steel or food-grade fittings from our recommended list
3. Minimum bend radius: Do not bend tighter than 10x OD for continuous operation
4. Avoid twisting: The hose should lie naturally without induced torsion

Operation:

1. Never exceed 150Psi working pressure or 80°C media temperature
2. For vacuum service: This hose is not designed for vacuum; consult us for vacuum-rated alternatives
3. Product compatibility: Suitable for water-based foods, dairy, beer, juice, edible oil. Not for solvents or hydrocarbons
4. Before first use: Flush with clean water or food-grade sanitizer per your plant protocol

Maintenance:

• After each use: Rinse with clean water or CIP solution at ≤80°C
• Weekly visual inspection: Check cover for cuts, abrasion, or swelling
• Monthly pressure test: Isolate hose and pressure test to 150Psi for 5 minutes
• Replacement criteria: Replace if cover is cut to reinforcement layer, if bulges appear, or after 5 years of service
• Storage: Store in cool dry place away from ozone sources (motors, welding equipment)

Frequently Asked Questions (FAQ)

Q1: Is this food discharge hose 150Psi FDA approved?
Yes. The white tube compound complies with FDA 21 CFR 177.2600 for repeated food contact. We can provide the FDA compliance letter upon request.

Q2: Can I use this hose for hot oil?
Yes, for edible oils up to 80°C (176°F). For hot animal fats or frying oils above 80°C, please consult us for a high-temperature variant.

Q3: What is the difference between NR, NBR, and EPDM tube options?

• NR (Natural Rubber): Best for water-based foods, dairy, juice. Lowest cost.
• NBR (Nitrile Butadiene Rubber): Best for edible oils and fatty foods. Good abrasion resistance.
• EPDM: Best for hot water, CIP solutions, and ozone resistance. Not for oils.
  We select the optimal compound based on your specific food product.

Q4: Do you offer hose assembly with crimped fittings?
Yes. We provide complete hose assemblyService including crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards. Just provide your fitting type, thread specification, and required assembly length.

Q5: Can I buy in bulk or wholesale quantities?
Yes. We are a wholesaler, distributor, and exporter. Bulk orders receive discount pricing. Standard coil length is 61m (200ft), and we can cut to custom lengths or assemble per your pdf drawing.

Q6: What is the shelf life of this hose?
When stored properly (cool, dry, away from ozone), the shelf life is 5 years from manufacturing date. Each hose has a batch number for traceability.

Q7: Do you offer OEM ODM services?
Yes. We can customize cover color, printing (your logo or specifications), length marking, and even compound formulation for unique applications. Minimum order quantity for OEM ODM projects is negotiable.

Q8: How do I get a price or request a sample?
Contact our Service team via the inquiry form below. We provide quick price and cost estimates within 24 hours. Samples are available for testing.

Ready to Secure Your Food Transfer Line?

Don’t risk product contamination or compliance issues with uncertified hoses. Our food discharge hose 150Psi offers the FDA approval, durability, and reliability your food processing operation demands.

Contact us today for:

• Price and cost quotation for bulk orders with discount
• pdfspecification datasheet download
• Custom hose assembly with crimped fittings, reusable fittings, adapters, flanges, protective sleeves, or guards
• OEM ODM collaboration for branded hoses
• Free technical support and solution design

We are your complete Source for food grade rubber hose: a leading manufacturer, producer, factory, supplier, distributor, wholesaler, and exporter from China. Supply globally with fast shipping and full Service backup.

Request a Quote Now – Include your required ID, length, fitting type, and quantity for a fast response.
