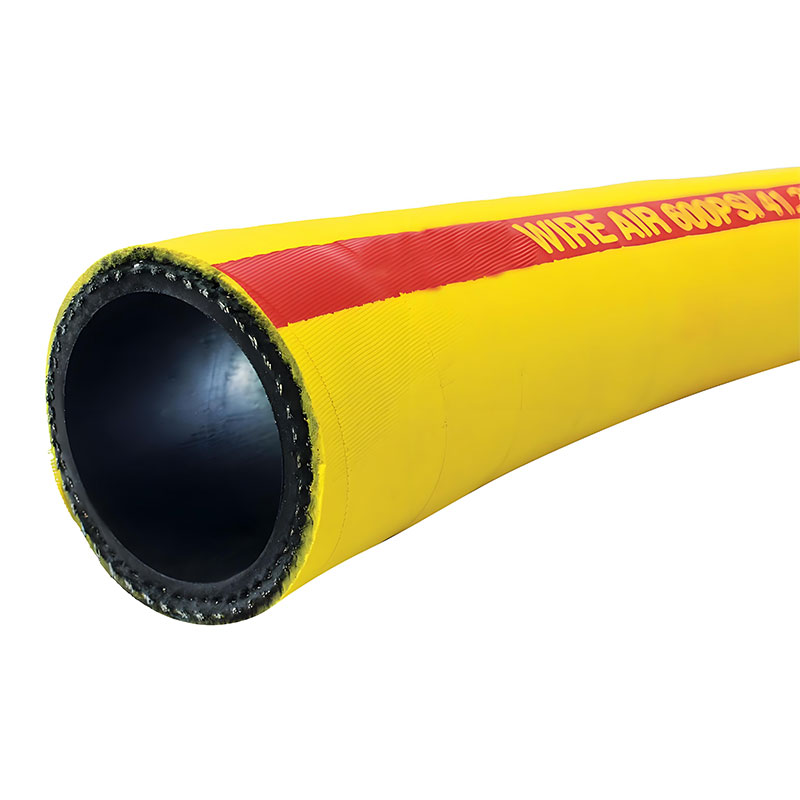

Wire Reinforced Air Hose 600 PSI

Product Overview

A wire reinforced air hose is a high pressure industrial hose designed with steel wire braiding or spiral reinforcement to handle demanding pneumatic applications. This hose is widely used as a compressed air hose in high-demand industrial systems. Compared to standard air hoses, it offers significantly higher burst strength, improved abrasion resistance, and longer service life in construction, mining, and manufacturing environments.

This high pressure air hose combines an NR & SBR synthetic rubber inner tube (resistant to heat and compressor oil mist) with a high tensile steel wire reinforcement layer, finished with a weather and abrasion-resistant rubber cover. As a professional manufacturer in china, our steel wire air hose meets or exceeds international standard requirements including SAE and ISO specifications.

The 600 psi air hose delivers a working pressure of 600 PSI (4.1 MPa) and a burst pressure of 1800 PSI (12.4 MPa) with a 3:1 safety factor. The temperature range spans -30°C to +80°C. Available sizes range from 1/4″ to 6″ ID. Key advantages include oil-resistant tube construction, high visibility yellow cover option, extreme resistance to tugging and pulling, and extended service life compared to textile-reinforced alternatives.

Primary applications include industrial air compressor hose systems, pneumatic tools on construction sites, mining equipment, automotive assembly lines, and workshop compressed air networks. For facility managers and project material purchasers, this reinforced rubber air hose solves the critical pain points of frequent burst failures, premature wear from dragging, and safety risks from unexpected line failures.

Quality assurance includes 100% factory pressure testing, traceable batch numbers, and ISO 9001 certification. As a leading supplier and factory, we provide complete support including technical documentation, pdf specification sheets, and OEM ODM customization.

What Is a Wire Reinforced Air Hose?

A wire reinforced air hose is a type of high pressure compressed air hose constructed with steel wire braiding or spiral layers embedded between rubber materials. It is designed to handle higher pressure, resist abrasion, and provide longer service life compared to standard textile-reinforced air hoses, making it ideal for industrial pneumatic systems and heavy duty air compressor applications.

Key Takeaways

• 600 PSI high pressure air hose (4.1 MPa) for industrial pneumatic systems
• Steel wire reinforcement ensures 3x burst safety margin (1800 PSI / 12.4 MPa)
• Oil and heat-resistant tube withstands compressor oil mist
• Weather and abrasion-resistant cover available in black, yellow, or grey
• Temperature range: -30°C to +80°C | Sizes: 1/4″ to 6″ ID
• Ideal for construction, mining, compressed air systems, and factory automation

Product Advantages

• 600 PSI Continuous Working Pressure (4.1 MPa): Engineered for heavy-duty pneumatic systems, delivering reliable power transmission without blowout risk.
• High Tensile Steel Wire Braiding or Spiral: Provides exceptional burst strength (1800 PSI / 12.4 MPa) and resists deformation from repeated flexing, pulling, or crushing.
• Oil-Resistant Inner Tube: Special NR & SBR compound withstands compressor oil “mist” and heat, extending internal service life.
• Weather & Wear-Resistant Cover: Resists ozone, UV, abrasion, and dragging damage. Yellow option provides high job site visibility.
• Wide Temperature Range: Operates reliably from -30°C to +80°C, suitable for outdoor and indoor industrial environments.
• Flexible yet durable: Despite steel reinforcement, this flexible air hose maintains excellent bend radius for easy installation.
• Multiple Size Options: Available in 1/4″, 3/8″, 1/2″, 3/4″ IDs to match various pneumatic equipment.

Applicable Users: Construction contractors, facility maintenance managers, mining operations, agricultural cooperatives, automotive manufacturers, and industrial plant engineers seeking a durable heavy duty air hose solution.

Typical Use Cases for High Pressure Air Hose

• Air compressor hose for construction sites: Connecting portable compressors to jackhammers, nail guns, and concrete vibrators.
• Industrial compressed air hose for factory automation systems: Robotic grippers, pneumatic cylinders, and assembly line tools.
• Pneumatic air line for drilling and impact tools: Mining and quarry operations requiring high cycle life.
• Heavy duty air hose for mining equipment: Ventilation systems, pneumatic drilling rigs, and material handling.
• Compressor air line for workshop and automotive repair: Impact wrenches, tire inflation, and spray painting equipment.
• Industrial pneumatic hose for material conveying: Moving powders, granules, or bulk materials in manufacturing environments.

Wire Reinforced Air Hose vs Standard Air Compressor Hose

Detailed Technical Specifications Table

Technical specifications of the 600 PSI wire reinforced air hose are listed below:

Download complete pdf specification sheet for engineering reference.

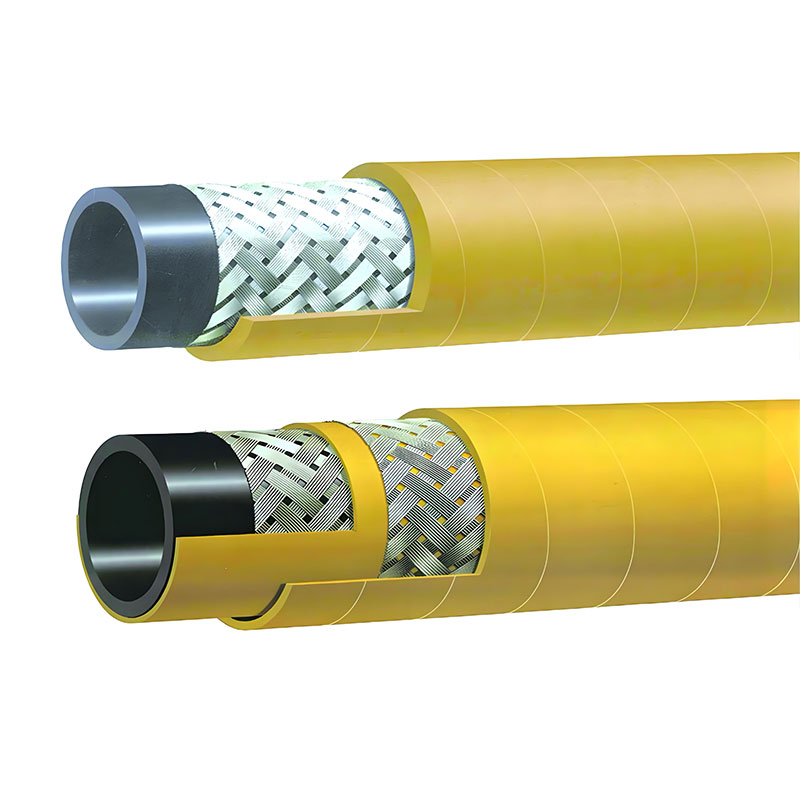

Structure and Materials

Inner Tube: NR & SBR synthetic rubber, black color. Resists heat and oil “mist” from compressors, maintaining flexibility and sealing properties.

Reinforcement Layer: High tensile steel wire braiding or spiral. The wire braided hose configuration uses interwoven steel strands for balanced radial and axial strength. For larger diameters, a wire spiral hose pattern provides even greater burst resistance.

Cover Layer: NR & SBR synthetic rubber, available in black, yellow, or grey. Resists weather, ozone, abrasion, and mechanical damage from dragging.

How to Choose the Right High Pressure Air Hose (Selection Guide)

Selecting the correct industrial air hose or compressed air hose for your application requires evaluating four key parameters:

1. Working Pressure (PSI): Match or exceed your compressor’s maximum output. For systems with pressure spikes, add a 25-50% safety margin. Our 600 psi air hose provides adequate headroom for most industrial compressors.
2. Inner Diameter (ID): Larger ID reduces pressure drop over long runs. 1/2″ suits most single tools. 3/4″ to 1″ for high-flow applications or long distribution lines.
3. Temperature Range: Standard range -30°C to +80°C covers most environments. Special formulations available for extreme conditions.
4. Reinforcement Type: Wire reinforced for heavy-duty, high-cycle, or abrasive environments. Textile reinforced for light-duty, intermittent use.

Fittings and Hose Assembly Solutions

It’s more than just a hose – complete hose assembly solutions. Proper fittings selection directly impacts safety and service life. For this steel wire air hose, we recommend:

• Crimped fittings: Permanent attachment using hydraulic crimping machines. Best for high-cycle industrial applications.
• Reusable fittings: Thread-together designs allowing field replacement. Suitable for maintenance shops with varied hose lengths.
• Adapters and flanges: BSP, NPT, JIC, and flange patterns available for equipment port connections.

For air compressor hose assembly, factory pre-assembled hoses deliver consistent crimping pressure, correct ferrule selection, and 100% pressure testing before shipment, reducing leak risks by approximately 70% compared to field assembly.

For high-abrasion environments, add protective sleeves or guards over the hose where it passes over sharp edges or through bulkheads.

Technical Standards and Certifications

This reinforced rubber air hose complies with:

• SAE 100R series equivalent performance
• ISO 2398 for industrial air hose specifications
• ISO 9001:2015 quality management system

Factory testing includes:

• Tensile strength testing of steel wire reinforcement
• Adhesion testing between layers
• 100% hydrostatic proof testing at 630 PSI (1.5x working pressure)
• Dimensional verification to specification tolerances

As a certified manufacturer and exporter, we maintain test records traceable by batch number. Third-party inspection reports available upon request.

Installation, Operation, and Maintenance Guide

Installation:

1. Cut hose squarely. Avoid steel wire protrusion beyond the cut face.
2. Select fittings matching hose ID and pressure rating. Never use fittings rated below 600 PSI.
3. For crimped fittings, follow crimper specifications. Under-crimping causes blow-offs; over-crimping damages reinforcement.
4. Minimum bend radius: approximately 10x hose OD. Tighter bends accelerate fatigue.
5. Use protective sleeves or guards over sharp edges.

Operation:

• Maximum working pressure 600 PSI (4.1 MPa). Do not exceed.
• Temperature range -30°C to +80°C. Above 80°C, compound aging accelerates.
• Avoid dragging over rough surfaces. Use slings or rollers for long runs.
• Inspect cover regularly. Replace immediately if steel wires are visible or broken.

Maintenance:

• Daily visual inspection before first use
• Monthly pressure test at 600 PSI, hold 5 minutes, check for leaks
• Quarterly replacement of hose assembly in critical safety applications

Frequently Asked Questions (FAQ)

Q1: What is the definition of a wire reinforced air hose?
A: A wire reinforced air hose has one or more layers of high tensile steel wire braiding or spiral embedded between rubber layers, providing higher burst resistance and structural integrity than textile-reinforced hoses.

Q2: What is the difference between a compressed air hose and a pneumatic hose?
A: A compressed air hose refers broadly to hoses used to transport compressed air from compressors to tools or systems. A pneumatic hose typically refers to hoses used in control systems and air-powered equipment. In industrial applications, the terms are often used interchangeably, but high pressure systems specifically require a high pressure air hose or wire reinforced air hose for safety and durability.

Q3: How to choose the right high pressure air hose?
A: Evaluate four factors: required working pressure (PSI), inner diameter for your flow rate, operating temperature range, and reinforcement type (wire vs textile). For continuous industrial use, wire reinforced is recommended.

Q4: Can I buy this hose in bulk for wholesale pricing?
A: Yes. Standard supply is 30.5m (100ft) per coil. Bulk and wholesale orders receive discount pricing. Contact our sales team for a quote.

Q5: What fittings work with this steel wire air hose?
A: Compatible fittings include crimped fittings, reusable fittings, adapters, and flanges. We recommend factory-crimped hose assembly for optimal reliability.

Q6: Is this an oil resistant air hose?
A: The inner tube resists compressor oil “mist” and heat. However, direct continuous contact with liquid petroleum oils will degrade the NR&SBR compound. For liquid oil applications, consult our technical team.

Q7: Do you offer OEM ODM services?
A: Yes. As a manufacturer and factory in china, we provide OEM ODM including custom cover colors, branding, packaging, and length marking.

Q8: Where can I download the product pdf specification?
A: PDF specification sheets including full dimensional tables and test reports are available from our technical support team.

Q9: Are you a supplier, distributor, or exporter?
A: We are an integrated manufacturer and exporter – a single source for design, production, quality control, and shipping. Widely exported to North America, Europe, and Southeast Asia for industrial applications.

Brand and Quality Assurance

HENGHUA brings over 18 years of rubber hose manufacturing expertise to every high pressure air hose, compressed air hose, and heavy duty air hose we produce. As an integrated factory, producer, and exporter based in china, we control quality from raw material compounding to finished goods packaging.

Quality management visualized:

• Raw material incoming inspection: Every batch of NR&SBR compound and steel wire is tested before production.
• In-process monitoring: Extrusion dimensions checked every 30 minutes. Braiding tension continuously logged.
• 100% finished hose testing: Each length pressure tested to 630 PSI (1.5x working pressure), held for 30 seconds.
• Laboratory validation: Pulse test rigs, burst test chambers, and accelerated aging ovens verify design margins.

Global presence: Widely exported to North America, Europe, and Southeast Asia for industrial applications ranging from construction sites to mining operations.

Customer evidence: A US construction equipment rental company reported 60% reduction in air hose replacement costs after switching to our wire reinforced line. A Southeast Asian mining operator standardized on our 1″ ID hose, citing zero burst incidents over 18 months.
