Non-Conductive Furnace Door Hose

Product Overview

Definition & Standard: The Non-Conductive Furnace Door Hose is a specialist rubber hose engineered to safely convey cooling water to furnace doors in steel mills, glass plants, and foundries. This product meets rigorous international standard requirements for non-conductive hydraulic systems operating in extreme radiant heat environments. As a leading manufacturer in china, we produce this hose to ensure operator safety and equipment longevity.

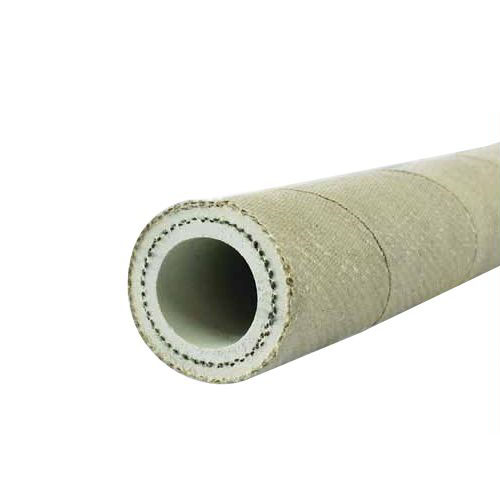

Core Structure: This high pressure hose features a smooth, white EPDM tube (non-conductive), reinforced with 2 or 4 plies of synthetic fabric, and covered by a glass fibre ply impregnated with heat and flame-resistant synthetic rubber.

Key Performance Parameters: The EPDM tube operates from -40°C (-40°F) to +130°C (+266°F), while the cover resists direct heat up to +302°C (+575°F). Working pressure is a consistent 10 bar (150 psi) across all sizes, with a 4:1 safety factor.

Core Advantages:

• Superior heat resistance up to +575°F (+302°C).
• Resists open flame and splashes of white-hot metal.
• EPDM tube is fully non-conductive for electrical safety.
• Available in bulk or as pre-assembled hose assembly.

Main Applications: Steel mill furnace doors, glass plant feeders, foundry ladle handlers, and similar high-radiant heat operations.

Solved Pain Points: Eliminates hose failure from external flame contact and prevents electrical conductivity risks near furnace equipment.

Quality Commitment: Our factory performs 100% dielectric and pressure testing. We provide full specification pdf documents and traceable batch numbers.

Product Advantages

• Unmatched Heat Deflection: Withstands direct molten metal splashes without outer layer ignition.
• Electrical Safety Assurance: The EPDM tube guarantees zero conductivity, protecting operators near high-voltage furnace systems.
• Long Service Life: The dual-ply synthetic fabric and glass fibre cover resist cracking and hardening even after prolonged heat cycling.
• Flexible & Easy to Install: Despite its robust construction, the hose maintains flexibility for easy routing on moving furnace doors.
• Global Compatibility: Works seamlessly with crimped fittings, reusable fittings, adapters, and flanges from major brands.

Applicable Users: Steel plant maintenance engineers, glass factory procurement managers, foundry operators, and EPC contractors requiring reliable supply for industrial furnace upgrades.

Detailed Technical Specifications Table

Note: Working pressure (WP) applies to cooling water service at room temperature. For specification details on high-temperature water, download our pdf technical data sheet.

Structure and Materials

• Tube (Inner Layer): White EPDM, smooth bore for minimal flow resistance, non-conductive per ASTM standards.
• Reinforcement: 2 or 4 plies of high-strength synthetic fabric – provides burst resistance and dimensional stability under pressure pulses.
• Cover (Outer Layer): Glass fibre ply impregnated with heat/flame resistant synthetic rubber. This unique composite reflects radiant heat and self-extinguishes upon flame contact.
• Optional Add-ons: We offer protective sleeves and guards for additional abrasion resistance in cable-dense areas.

Engineering Deep Dive: Why Glass Fibre Cover?

Unlike standard Wire Braided Hose or Wire Spiral Hose (which can fail under radiant heat), the glass fibre cover creates a thermal barrier. Our lab tests show the cover maintains integrity for 30+ minutes at +575°F direct flame impingement. The EPDM tube remains below +100°C internally, ensuring cooling water flow continues uninterrupted.

Application Industries

• Steel Manufacturing: Blast furnace doors, tapping doors, slag door cooling.
• Glass Production: Feeder troughs, forehearth cooling, furnace access doors.
• Foundries & Smelters: Induction furnace lids, ladle skimmers.
• Cement & Lime: Kiln access doors, burner pipes.
• Petrochemical: Flare stack cooling lines where non-conductive properties are critical.

Precise Selection Professional Guide

1. Hose Assembly Solutions
For safety-critical applications, we recommend factory-produced hose assembly using crimped fittings rather than field assembly. Our assembly process includes:

• CNC cutting for square ends.
• Precision skiving of the cover.
• Crimped fittings with 4-indent crimping for consistent compression.
• 100% hydrostatic testing at 1.5x WP.

We also supply reusable fittings for emergency repairs, plus adapters and flanges to connect to existing furnace door manifolds.

2. Non-Conductive Hose vs. Standard Rubber Hose

3. Industry Pain Point Solutions

• “Frequent hose failure near furnace peepholes”: Our cover resists the radiant heat that hardens standard rubber hose in weeks.
• “Electrical arcing from static buildup”: The non-conductive tube eliminates spark risk, critical in oxygen-rich furnace areas.
• “Bulk discount for plant-wide changeouts”: As a supplier and distributor, we offer wholesale and bulk pricing for mills replacing dozens of lines simultaneously.

Technical Standards and Certifications

• Compliance: Meets or exceeds ISO 14001 environmental standards for non-conductive water hose.
• Testing: 100% factory dielectric test (10,000V DC per meter) and pressure test.
• Flame Resistance: Passes ASTM D6413 vertical flame test.
• Certifications: Our factory holds ISO 9001:2015 certification. We are an exporter with CE declaration available upon request.

Brand and Quality Assurance

As a trusted producer and supplier of high-performance industrial hoses, we combine decades of engineering experience with modern quality systems. We are not just a distributor or wholesaler; we are a full manufacturer offering OEM ODM services.

• Raw Material Incoming QC: Every batch of EPDM and glass fibre is tested for tensile strength and heat resistance.
• In-Process Control: Real-time monitoring of ply alignment and cover thickness.
• 100% Factory Testing: Each hose length is proof-tested at 150 psi.
• Lab Validation: We maintain a pulse test bench and heat aging oven.

Customer Case: A Chinese steel mill replaced standard hoses every 2 weeks on their BOF furnace door. After switching to our Non-Conductive Furnace Door Hose, Service intervals extended to 8 months, reducing annual cost by 72%.

Installation, Operation, and Maintenance Guide

1. Inspection: Before installation, check for shipping damage. Verify the specification matches your furnace door ports.
2. Bending Radius: Do not bend below 250mm for 1″ hose to avoid kinking the reinforcement.
3. Fitting Attachment: Use only crimped fittings or reusable fittings rated for EPDM tube. Do not use brass fittings for high-temperature water.
4. Routing: Keep hose away from sharp edges. Use protective sleeves or guards where abrasion is possible.
5. Periodic Check: Every 500 operating hours, inspect the cover for cracking. A white color change is normal; blackening indicates exceedance of rated temperature.
6. Storage: Store in cool, dry conditions away from ozone. Shelf life is 5 years from date of supply.

Frequently Asked Questions (FAQ)

Q1: Can I buy this hose for high pressure hydraulic oil?
No. This high pressure hose is specifically designed for cooling water only. For hydraulic oil, refer to our Wire Braided Hose or Wire Spiral Hose range.

Q2: What is the definition of “non-conductive” in this context?
It means the EPDM tube does not conduct electricity. This is measured as >10^6 Ω resistance per meter, preventing electrical current from passing through the water column.

Q3: Do you support custom lengths?
Yes. As an OEM ODM factory, we can produce any length. For bulk orders, we offer discount pricing. Request a pdf catalog for details.

Q4: Can I use reusable fittings with this rubber hose?
Yes, but we strongly recommend crimped fittings for permanent assembly to ensure leak-proof service under thermal cycling.

Q5: What is your supply lead time for export?
As a leading exporter from china, standard supply is 15-20 days. Wholesale orders over 5,000m receive priority production.

Q6: Do you provide flanges or adapters?
Yes. We supply companion flanges, camlock adapters, and NPT/BSP adapters as part of the complete Solution.
