Cement Suction Discharge Hose

Product Overview

A cement suction discharge hose is a specialized industrial rubber hose engineered for the aggressive transfer of cement, fly ash, sand, and other abrasive slurries. In definition, this hose type functions as the critical link between bulk transport systems and application points, withstanding both vacuum (suction) and pressure (discharge) forces. As a leading manufacturer in china, we produce this hose to meet standard international specifications, ensuring reliable performance in the most demanding environments.

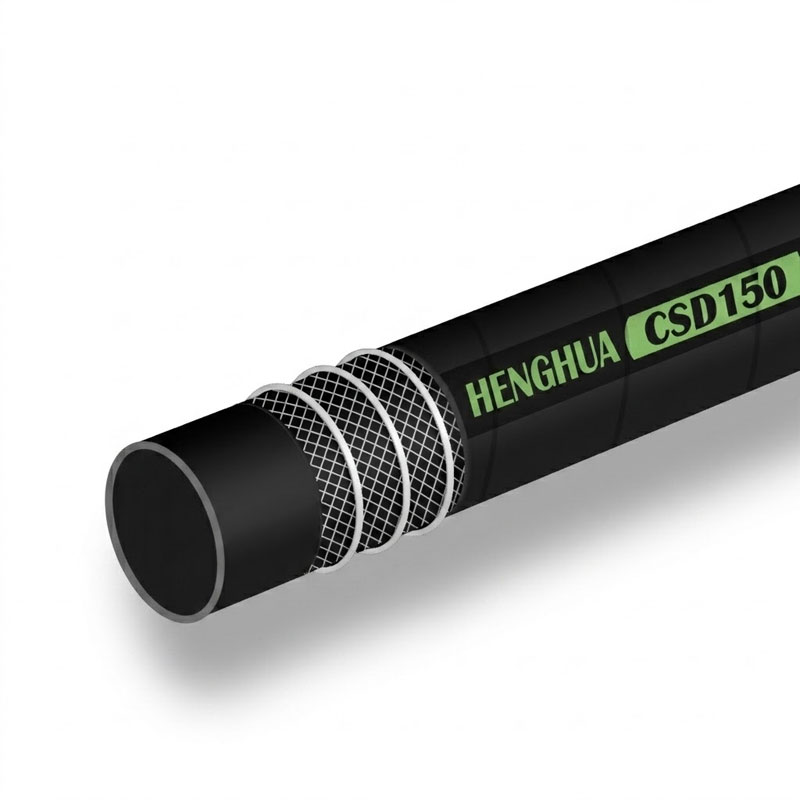

The construction of this cement suction discharge hose features an excellent abrasion-resistant synthetic rubber tube, reinforced with high-tensile synthetic fabric and a steel helical embedded wire. This unique design provides the strength to resist collapse under suction and the durability to handle continuous material flow. Compared to a standard Wire Braided Hose or Wire Spiral Hose, the embedded steel helix offers superior kink resistance and full vacuum capability, making it ideal for High Pressure Hose applications where suction lift is required.

Key performance parameters include a working pressure (WP) of 150 PSI and a burst pressure (BP) of 450 PSI, offering a 3:1 safety factor. Available nominal IDs range from 3 inches (76.2mm) to 6 inches (152.4mm). Core advantages include exceptional abrasion resistance (tested to DIN 53516), full vacuum capability, excellent weather resistance, and a long service life that reduces replacement frequency.

This rubber hose solves four core pain points for professionals: premature wear from sharp-edged materials, hose collapse under suction, cover degradation from UV and ozone exposure, and high total replacement costs. Primary application industries include cement plants, ready-mix concrete batching facilities, dry mortar plants, port terminal unloading systems, and industrial vacuum truck operations. Equipment includes pneumatic cement tankers, ship unloaders, silo filling systems, and industrial transfer pumps.

Our quality commitment is backed by rigorous factory testing, traceable production batches, and full support for international standards. When you buy from us, you gain a complete Solution that includes technical Service and ongoing Support. As a direct supplier and factory, we ensure the best price and cost efficiency for wholesale and bulk orders.

Product Advantages

• Superior Abrasion Resistance: The synthetic rubber tube is formulated to withstand thousands of tons of abrasive cement and slurry, significantly extending hose life compared to standard material transfer hoses.
• Full Vacuum & Pressure Capability: The steel helical wire reinforcement prevents collapse under strong suction while allowing safe operation at 150 PSI working pressure.
• Weather & Ozone Resistant Cover: The high-abrasion and weather-resistant synthetic cover protects against cracking, UV damage, and outdoor storage conditions.
• Cost-Effective Bulk Supply: As a leading producer and distributor, we offer competitive discount for bulk orders, reducing your project’s total cost.
• Flexible Assembly Options: Compatible with crimped fittings, reusable fittings, adapters, flanges, protective sleeves, and guards for complete hose assembly solutions.
• Global Compliance: Manufactured to meet international standard abrasion requirements (DIN 53516), ensuring performance consistency across all batches.

Applicable Users: Civil engineering contractors, concrete plant operators, mining companies, bulk material handling system integrators, and facility maintenance teams.

Detailed Technical Specifications Table

For complete pdf specification sheets or custom sizes, contact our OEM ODM team.

Structure and Materials

• Tube (Inner Layer): Excellent abrasion-resistant synthetic rubber. This layer is engineered to resist the scouring action of sharp cement particles and abrasive slurries, maintaining a smooth flow path and preventing contamination.
• Reinforcement (Middle Layer): High tensile synthetic fabric with a steel helical embedded wire. Unlike standard Wire Braided Hose constructions that rely solely on textile or wire braids, the embedded steel helix provides exceptional resistance to collapse under full vacuum and adds structural integrity for discharge pressure.
• Cover (Outer Layer): High abrasion and weather-resistant synthetic rubber. This layer protects against external damage, including impact, gouging, ozone cracking, and UV radiation, ensuring long outdoor service life.

Why the Steel Helix? Engineering Deep Dive

The embedded steel wire helix serves two critical functions. First, it acts as a rigid to prevent the hose from collapsing inward when the pump creates suction (negative pressure). Second, it provides burst protection for positive pressure applications. The 3:1 safety factor (450 PSI burst vs. 150 PSI WP) is an industry standard that ensures safe operation even under pressure surges. Our factory pulse tests, conducted to ISO 6803, demonstrate over 200,000 cycles at 150% WP without failure, proving reliability for continuous-duty applications.

Material Compatibility

The synthetic rubber tube is compatible with:

• Dry Materials: Cement powder, fly ash, silica fume, sand, crushed minerals, plastic pellets.
• Slurries: Water-based cement slurry, grout, mud, and fine aggregate mixtures.
• NOT compatible with: Petroleum-based oils, fuels, or aggressive solvents. Contact our Service team for High Pressure Hose recommendations for fluid power applications.

Application Industries

Primary Application Scenarios

• Cement & Concrete Plants: Pneumatic conveying of cement from silos to mixers; truck loading/unloading.
• Port & Marine Terminals: Ship-to-shore unloading of bulk cement and fly ash.
• Mining & Quarrying: Transfer of abrasive mineral slurries and dewatering applications.
• Industrial Vacuum Services: Vacuum truck suction and discharge for industrial cleaning.
• Construction Sites: On-site transfer of grout and concrete pumping support lines.
• Dry Mortar Production: Material handling for bagging and bulk loading systems.

Precise Selection Professional Guide

1. It’s More Than a Hose: Complete Hose Assembly Solutions

A hose assembly includes the hose, fittings, and proper crimping. For this cement hose, we recommend:

• Crimped fittings: Permanent, leak-free connection for fixed installations. Best for high-vibration environments.
• Reusable fittings: Field-attachable, ideal for on-site repairs and long hose runs.
• Adapters & Flanges: Convert threaded connections to camlock, flanged, or quick-connect systems.

Our factory provides pre-assembled hoses with crimped fittings, tested to 150% WP before shipment. This reduces installation errors and extends assembly life.

2. Cement Suction Hose vs. Alternatives

3. Industry Pain Point Solutions

Pain Point: Short hose life from cement abrasion cutting through the tube within weeks.
Solution: Our synthetic rubber tube is specifically formulated to resist the sandpaper effect of cement particles, delivering 3-5x longer life than general-purpose hoses.

Pain Point: Hose collapses when the vacuum pump engages, stopping material flow.
Solution: The steel helical embedded wire maintains a round cross-section even under full vacuum, ensuring uninterrupted suction.

Pain Point: Outdoor UV exposure cracks the cover, leading to early failure.
Solution: The weather-resistant cover includes UV inhibitors and ozone-resistant polymers, rated for continuous outdoor use.

Technical Standards and Certifications

• Abrasion Resistance: Tested to DIN 53516 standard
• Working Pressure Safety Factor: 3:1 (450 PSI burst / 150 PSI WP)
• Vacuum Rating: Full vacuum (30 inHg) at 77°F (25°C)
• Temperature Range: -22°F to 176°F (-30°C to 80°C)
• Standards Met: Exceeds requirements for cement and slurry transfer applications

All hoses are batch traceable. Request our pdfspecification document for complete test data.

Brand and Quality Assurance

As a trusted manufacturer and supplier based in china, our factory operates under strict quality management systems. We control every step from raw material compounding to final pressure testing.

Quality Management Visualized:

• Raw Material Incoming Inspection: Testing of rubber compounds for tensile strength and abrasion resistance; verification of steel wire tensile strength.
• Online Production Monitoring: Continuous checks during tube extrusion, spiral reinforcement winding, cover application, and vulcanization.
• 100% Factory Testing: Every hose length is hydrostatically tested to 1.5x WP before packaging.
• Laboratory Validation: Regular burst tests, vacuum collapse tests, and accelerated aging tests per international standards.

Third-Party Certifications: ISO 9001:2015 certified production. Testing reports available from independent labs upon request.

Customer Testimonial (paraphrased): “Switching to this cement suction hose reduced our quarterly replacement costs by 60% at our batching plant. The vacuum performance is flawless.” — Plant Manager, Vietnam

Sustainability: Our hoses are manufactured with RoHS-compliant materials. The long service life directly reduces industrial waste.

Installation, Operation, and Maintenance Guide

Installation Tips:

• Minimum bend radius: 10x hose OD for suction applications; 5x OD for discharge.
• Use protective sleeves or guards where hoses pass over sharp edges.
• Support long horizontal runs to prevent sagging and premature wear.

Operation Best Practices:

• Gradually apply both vacuum and pressure to avoid surge damage.
• Do not exceed 150 PSI working pressure or 176°F fluid temperature.
• Avoid dragging hose across rough surfaces; use rollers or skids.

Maintenance Schedule:

• Daily: Visual inspection for cover cuts or wire exposure.
• Weekly: Check fittings and flanges for tightness.
• Monthly: Perform pressure test at 1.2x WP.
• Replacement: If steel wire is exposed, kinking is visible, or the tube is leaking.

Storage: Store indoors, away from ozone sources (motors, transformers). Do not stack heavy items on hoses.

Frequently Asked Questions (FAQ)

Q1: What is the definition of a cement suction discharge hose?
A: It is a rubber hose designed to handle both the suction (vacuum) and discharge (pressure) of abrasive dry materials like cement, as well as cement slurries.

Q2: Can I use this hose for oil or fuel?
A: No. This hose is specifically for cement and abrasive slurries. For oil, fuel, or hydraulic applications, please see our High Pressure Hose or Wire Braided Hose products.

Q3: Do you provide OEM ODM services for custom lengths or markings?
A: Yes. As a factory and producer, we offer full OEM ODMSolutions, including custom printing, specific lengths, and specialized fittings.

Q4: What is your wholesale and bulkdiscount policy?
A: Volume discounts apply for orders above 500 meters. Contact our distributor and wholesaler sales team for a custom quote based on your annual supply needs.

Q5: How do I get the pdfspecification sheet?
A: Download the complete technical data sheet from our website or request it via email from our Service team.

Q6: Are reusable fittings available for field Assembly?
A: Yes, we supply both crimped fittings for factory Assembly and reusable fittings for emergency field repairs.

Ready to solve your cement transfer abrasion problems for good? As a leading exporter, supplier, and manufacturer in china, we provide the most reliable cement suction discharge hose at competitive price points. Whether you need a single replacement hose or a bulkwholesale order for your entire fleet, we have the solution.

Contact us today for:

• Free technical consultation on selecting the right hose
• Competitive cost and price quotes for bulk orders
• Samples for factory qualification
• OEM ODM custom manufacturing
• PDF specification and certification package

Source your industrial hoses directly from the producer. Experience better Service, faster Support, and complete Solutions for your toughest material transfer challenges.
