20231 30-Degree Elbow Metric Female Flat-Seat Hydraulic Hose Fittings

Flat-seat 30-degree female elbow fittings correct the hose direction through a small, controlled 30 degrees at the connection point – enough to aim the hose where the port axis points, without the bigger angle changes of a 45-degree or 90-degree elbow. The port end follows the flat-seal convention: the swivel nut carries the flat sealing face that closes against a flat male face with a soft seal between them – the sealing system of the flat-seat (ED-type) joint family. The 20231 series is the metric female flat-seat 30-degree elbow, covering 7 part numbers from M22x1.5 (DN12, -08) to M52x2 (DN40, -24), designed for wire-braided hose. If the port axis on your machine is only slightly off the routing direction – and the layout would benefit from a gentle correction instead of a full 45-degree or 90-degree turn – this page covers dimensions, part numbers and OEM options.

Why Choose These 30-Degree Flat-Seat Elbow Fittings

• A small, precise change of direction. A 30-degree elbow corrects a slight port-axis offset with the least disturbance to the hose run – where a 45-degree or 90-degree elbow would overshoot the intended direction.
• Keep the hose above its bend radius. Even a small forced bend can fatigue a hose over time; moving the correction into the steel protects the reinforcement.
• The flat-seat port convention. The nut carries the flat sealing face of the flat-seal (ED-type) family, closing onto a flat male face with the soft seal – the system used across European and Chinese machine builders.
• Swivel nut for orientation. The captive nut turns, so the elbow plane can be oriented toward the routing before the joint is torqued.
• OEM-ready. Laser marking, custom plating, material test reports and batch traceability.

Standards and traceability. Threads are ISO 724 metric threads. The 30-degree elbow geometry and the flat sealing face are machined per the series drawing; the series sheet carries the catalog reference REF GB/T 9065.3 for the flat-seat family (see the notes section for the full wording). Fittings are designed to pair with wire-braided hose built to EN 853 1SN/2SN or SAE 100 R1AT/R2AT performance classes. Dimensional inspection reports and material test certificates are available for OEM gate checks.

Why Specify a 30-Degree Elbow?

Every hose has a minimum bend radius, printed on the cover. Route a hose tighter than that radius and the reinforcement strands work against each other on every pressure cycle – the classic cause of early hose failure at the bend.

Most layouts are corrected with 45-degree or 90-degree elbows, but some ports point only slightly off the routing direction. For those, a 30-degree elbow is the cleaner answer:

1. Small port-axis offset. When the port axis is 20-35 degrees off the desired run, a 30-degree elbow corrects it in one joint without an S-bend or a forced twist.
2. Tight envelopes with fine clearance. Where a 45-degree outlet would push the hose into an adjacent component, the smaller 30-degree angle keeps the hose closer to the port axis.
3. Multiple corrections along one run. A run that snakes past several components can use 30-degree elbows for each small redirection, keeping every bend gentle.

The 20231 elbow adds the flat-seat advantage: the soft seal absorbs minor face imperfections, and the swivel nut sets the elbow plane to the routing before the joint is torqued – no twisted hose.

What does the flat seat mean on this elbow?

The port end follows the flat-seal (ED-type) convention: a flat sealing face on the swivel nut closing against a flat male face, with the soft seal compressed between them. Unlike a cone joint, the flat seat does not rely on metal-to-metal coning, which makes it forgiving of surface wear and minor contamination. Confirm the matching male end type with us when replacing an existing elbow – a photo of the old male stud and nut is enough for a same-day answer.

What does the T suffix mean?

Rows ending in T carry a slight variation in the tail/barb design shown on the secondary diagram labeled 20231-T; rows without T use the standard tail design shown on the main diagram. Both share the same thread and flat sealing face. Order the exact part number from your drawing or the old fitting, and we will confirm the construction before dispatch.

30-degree vs 45-degree vs 90-degree flat-seat elbows

The catalog carries the metric female flat-seat elbow in three angles: 20231 (this page, 30 degrees), 20241 (45 degrees) and 20291 (90 degrees). They share the same flat-seat port system and swivel nut, and the choice is purely a routing question – 30 degrees for a small correction, 45 degrees for a controlled change of direction, 90 degrees where the corner must be turned inside the fitting.

20231 Series Technical Specifications

Materials and processing

• Body material options: high-strength carbon steel (20#/35#/45# grades, cold-formed or machined) as standard; stainless steel 304 or 316L available for corrosive or wash-down environments.
• Surface treatment: zinc plating as standard; yellow, white or black zinc, zinc-nickel and Dacromet coating available for higher salt-spray requirements.
• Heat treatment: hardness and case depth are controlled per drawing so the elbow body, thread, flat sealing face and nut stay fatigue-resistant; typical surface hardness range HRC 20-28 (confirm the exact code on your drawing or PO).
• Sealing face: the flat face on the nut is machined square to the thread axis so the soft seal compresses evenly.
• Elbow geometry: swept 30-degree bend, machined as one piece with the body.

Full dimension and part number table

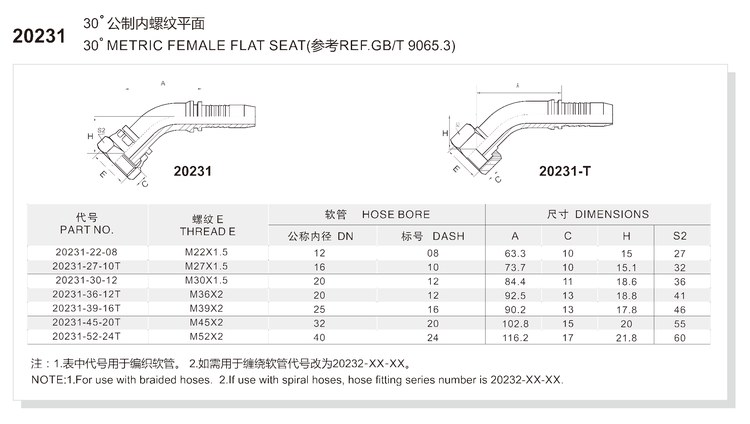

All linear dimensions are in millimeters. E = thread, DN = hose bore, A = cut-off/drop length from the bend center to the end of the barb, C = flat-seat opening dimension, H = drop height from the hose centerline to the top of the hex nut, S2 = swivel nut hex across flats (dimension definitions per the supplier drawing; the exact meaning of C – seat opening diameter or depth – is under factory confirmation). Rows ending in T use the tail/barb design shown on the 20231-T drawing.

Full dimensioned CAD drawings are available on request so your engineers can verify every length, the elbow geometry and the flat sealing face before you commit a batch.

Working pressure: the honest answer engineers need

A crimp hose assembly fails at its weakest link, so the rating of a 20231 elbow depends on the hose you pair it with and the crimp quality. Wire-braided hydraulic hose in this size range typically operates between roughly 80 and 400 bar depending on bore size and construction (1SN or 2SN). Send us your hose specification and we will confirm the working pressure, burst margin and the recommended ferrule for your exact hose brand – the check is free and takes one message. For derating at elevated temperature, follow the hose manufacturer’s pressure-temperature curve, because the rubber cover and tube lose capacity above about +100°C.

Which Fitting Series Do You Need: 20231 (Braided) or 20232 (Spiral)?

The part number changes with the hose construction, because the barb geometry and the crimp parameters are different. For spiral-reinforced hose (4SP/4SH style), order the 20232 series as 20232-XX-XX (for example 20232-22-08). Check the hose label before ordering: braided hose is marked 1SN, 2SN or R1AT, R2AT; spiral hose is marked 4SP, 4SH or similar.

Part Number Decoder and How to Order

The 20231 part number carries the specification – thread, bore, construction – so purchasing can copy it straight into a PO:

20231 – 27 – 10T

• 20231 = 30-degree metric female flat-seat elbow for braided hose
• 27 = thread nominal size (here M27x1.5)
• 10 = hose dash size (here DN16)
• T (where present) = tail/barb design per the 20231-T drawing

Because one thread size can serve several hose bores, always quote both the thread size and the dash size. If you are replacing an existing elbow, send us a photo of the male stud, the old nut and the elbow body – we will confirm the matching part number, including the correct seal family and construction, the same day.

Assembly Guide: Four Steps with the 30-Degree Flat-Seat Elbow

Step 1 – Cut the hose square. Use a sharp hose cutter or cutoff saw. A square, clean cut lets the ferrule grip the cover evenly. A beveled or ragged cut is the most common cause of pull-out failures.

Step 2 – Prepare the insert depth. Push the elbow tail into the hose until it bottoms firmly against the internal shoulder. The hose end must sit at the full insertion depth, not short, or the crimp zone will be wrong.

Step 3 – Lubricate and insert. Apply a thin film of assembly lubricant to the hose bore and the barb. Push the elbow in with a steady twisting motion until it bottoms out, then wipe away excess lubricant. Keep the flat sealing face clean so the soft seal seats evenly.

Step 4 – Crimp, verify, orient and torque. Crimp the matched ferrule with the hose manufacturer’s crimp specification and measure the crimp outside diameter against the crimp table. Then set the 30-degree outlet plane to the routing direction and torque the swivel nut onto the flat male face with the correct soft seal in place – the nut turns freely, so the hose is never twisted to aim the elbow.

Warnings: three mistakes that cause leaks and blow-outs

• Never substitute a 45-degree or 90-degree elbow where the drawing calls 30 degrees – the outlet geometry changes the whole routing.
• Never forget the soft seal. The flat seat seals through the seal between the two flat faces; a missing or wrong seal leaks at once.
• Never put PTFE tape or sealant on the thread of a flat-seal joint, and never let the swivel nut scratch the flat sealing face during assembly.

Typical Applications

30-degree flat-seat female elbows suit layouts that combine the flat-seal port convention with a small direction correction:

• Machine tools, presses and injection molding machinery
• European-specified machines and their global service networks
• Hydraulic power units and valve stands with crowded plumbing
• Large-bore return and suction lines in DN32-DN40
• Replacement service for machines with unreadable or obsolete elbow part numbers

Wherever the routing asks for a small correction and the port follows the flat-seal system, the 20231 series is the elbow to specify.

OEM Customization and Quality Traceability

For equipment builders and large maintenance programs, the 20231 series can be adapted to your exact drawing and your traceability rules.

Customization options

• Thread and geometry: special threads, modified lengths, non-standard elbow angles and configurations machined to your drawing or to a sample.
• Surface treatment: zinc-nickel, Dacromet or other coatings for higher salt-spray grades; we confirm the achieved test hours for the coating you choose instead of quoting a generic number.
• Laser marking: your logo, part number and batch or date code laser-marked on the hex for full field traceability.
• Material: stainless steel 304/316L versions for corrosive media or wash-down duty.
• Nut construction: standard or T tail design per your drawing.
• Packaging and kitting: custom labels, barcodes, poly-bag or box quantities, and complete hose assembly kitting.

Quality documentation

• Batch number traceability: every order carries a batch code that links back to the production records.
• Material test reports (MTR) available for carbon steel and stainless batches.
• Dimensional inspection reports for OEM gate checks.
• Third-party inspection (BV, SGS or similar) can be arranged before shipment.

Samples and MOQ. Samples for stock sizes ship fast, and we keep low MOQs for standard part numbers so distributors can test the series without tying up capital. OEM programs can move to scheduled deliveries once the drawing is approved.

Packaging and Logistics

Standard export packing: elbows are individually poly-bagged or boxed to protect threads, sealing faces and swivel nuts, then packed in export cartons labeled with part number, quantity and batch code. Custom labeling, kitting and barcode requirements are available. Exact carton quantity, gross weight and CBM are confirmed on the packing list for every order.

FAQ

Q: What is a 30-degree metric female flat-seat hydraulic hose elbow? A: It is a crimp-style 30-degree swept elbow whose port end is a female metric thread with a captive swivel nut carrying the flat sealing face of the flat-seal (ED-type) joint family, sealing with a soft seal against a flat male face.

Q: When should I use a 30-degree elbow instead of 45 or 90 degrees? A: When the port axis is only slightly off the routing direction (roughly 20-35 degrees), a 30-degree elbow corrects it in one joint with the least disturbance to the hose run, keeping the hose close to the port axis.

Q: What is the difference between 20231, 20241 and 20291? A: 20231 is the 30-degree version, 20241 the 45-degree version and 20291 the 90-degree version of the metric female flat-seat elbow. Same port system and swivel nut; choose by the angle correction your routing needs.

Q: What does the T suffix mean? A: Rows ending in T carry a slight variation in the tail/barb design shown on the 20231-T drawing. Both share the same thread and flat sealing face.

Q: Can the elbow be oriented after crimping? A: Yes – the swivel nut turns freely, so the 30-degree outlet plane is set toward the routing when the nut is torqued, without twisting the hose.

Q: What is the difference between 20231 and 20232 series? A: 20231 is for wire-braided hose (1SN/2SN or R1AT/R2AT) and 20232 is for spiral hose (4SP/4SH style).

Q: Do I need a seal between the flat faces? A: Yes. The flat-seat system seals through the soft seal compressed between the flat faces. We supply the correct seal family for the port type – confirm it with your male face profile.

Q: What is the working pressure of these elbows? A: The assembly rating depends on the hose and the crimp quality. Send your hose specification and we will confirm the working pressure for your combination.

Q: Can you make custom part numbers with my logo? A: Yes. We offer laser marking, custom plating, stainless versions, special elbow angles and dimensions, with MTR and batch traceability for OEM programs.

Order Today: 30-Degree Flat-Seat Elbows with Confirmed Fit

Every 20231 metric female flat-seat hydraulic hose elbow in this range is made to controlled dimensions, inspected before packing and backed by batch traceability. Send us a photo of the male stud, your hose type and thread size, and you will get a confirmed part number – including the correct seal family and construction – a delivery date and a quote within one working day. Request samples first and trial-fit one on your own layout: the gentle 30-degree outlet keeps the hose running close to the port axis and the swivel nut makes the elbow as easy to aim as it is to route. We make sure the fitting, ferrule and hose work as one leak-free assembly.
