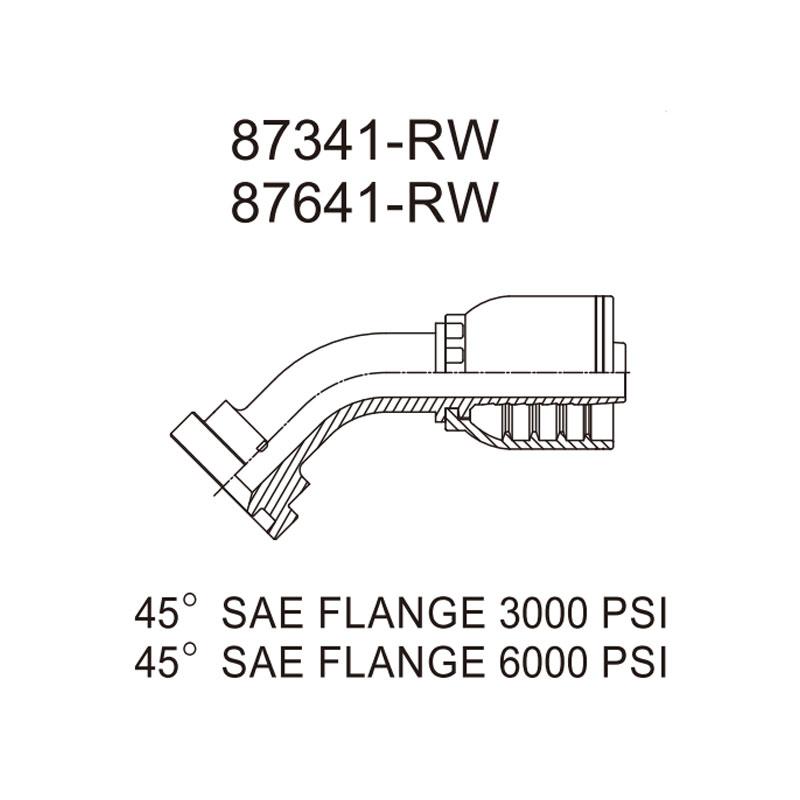

87341-RW 45 Degree SAE Flange Fitting 3000 PSI

Our 45 degree SAE flange fitting 3000 psi, series 87341-RW, is a one-piece crimp-on elbow with an SAE J518 Code 61 four-bolt flange head set at a 45 degree angle. It connects braided hydraulic hose to SAE flange ports on pumps, valve manifolds and cylinders used in heavy hydraulic systems, redirecting the hose at a shallow angle. The range covers 1/2″ to 2″ flange sizes, dash size -08 to -32, hose bore DN12 to DN50. Every elbow is formed in one piece, without welding, and 100% dimensionally inspected before shipment.

Conformité et normes :

• SAE J518 Code 61 (four-bolt flange, 3000 psi series)
• ISO 6162 (flange connections for fluid power)
• ISO 12151-3 (hose fittings with flange ends)
• SAE J516 (norme de référence générale relative à la conception des raccords pour flexibles hydrauliques)

Why buyers choose this elbow:

• One-piece 45 degree flange elbow. Formed from a single forging or cold-headed blank. No weld at the bend, no weak point under impulse pressure.
• The heavy-duty connection. Four-bolt flange joints are the standard choice for large bore, high flow hydraulic lines where threaded connections become impractical.
• O-ring face seal. The flange face carries an O-ring groove. The compressed O-ring seals against the mating flange face, with no leakage under impulse.
• Full flange size range. 1/2″ through 2″ (SAE J518 Code 61), covering flange ports from DN12 to DN50.

45 Degree SAE Flange Fitting 3000 PSI Technical Specifications

The table below lists all 13 sizes of the 87341-RW 45 degree SAE flange fitting 3000 psi. Dimensions are in millimeters. Flange dimensions follow SAE J518 Code 61. Dim. A is the length from the flange centerline to the hose-end shoulder, Dim. C is the flange head outside diameter, Dim. D is the bolt hole center distance, Dim. H is the height from the flange centerline to the hose axis, and Dim. L is the flange head thickness.

Notes: Dim. C (flange O.D.) and Dim. D (bolt spacing) match the SAE J518 Code 61 standard exactly, so these elbows bolt directly onto any Code 61 flange port. The -RW suffix denotes the braided-hose version; for spiral-wound hose, use series 87342-XX-XXRW.

Why a One-Piece 45 Degree Flange Elbow

Large bore flange connections leave little space for extra adapters. This 45 degree SAE flange fitting 3000 psi replaces a straight flange fitting plus a separate elbow, removing a joint, two potential leak points and extra routing length.

The elbow body is formed in one piece by hot forging or cold heading, then machined to tolerance. There is no welded seam at the bend. Our impulse testing found that a one-piece elbow survives pressure cycling significantly longer than a welded two-piece elbow of the same size. The 45 degree outlet keeps the hose away from sharp edges on the machine frame and keeps the routing within the machine envelope.

How the Flange O-Ring Seals

The flange face of this fitting carries an O-ring groove. When the four bolts are tightened, the O-ring is compressed between this flange face and the mating flange face of the port. The O-ring, not the metal faces, carries the seal. This is the same face-seal philosophy as the ORFS system, scaled up for large bores and high flow rates.

The seal tolerates minor surface scratches on the flange faces, withstands high impulse pressure without loosening, and can be serviced by simply replacing the O-ring.

Profondeur d'insertion et diamètre extérieur du sertissage : les deux chiffres demandés par les ingénieurs

La profondeur d'insertion correspond à la longueur de la partie cannelée qui pénètre dans l'alésage du tuyau. Le diamètre extérieur après sertissage correspond au diamètre extérieur de la virole après sertissage. Ces deux paramètres déterminent ensemble si l'ensemble résiste à la pression ou présente des fuites au niveau de la zone de sertissage.

HENGHUA publie les valeurs correspondantes de profondeur d’insertion et de diamètre extérieur de sertissage pour chaque type de flexible que nous fournissons, y compris les modèles SAE 100 R1AT, R2AT et EN 853 1SN / 2SN. Ces valeurs sont spécifiques à chaque flexible, car l’épaisseur du renfort influe sur l’épaisseur totale. Demandez notre fiche technique de sertissage en indiquant le modèle de votre flexible et nous vous communiquerons le diamètre extérieur exact du sertissage ainsi que le choix de la matrice dans un délai d’un jour ouvré.

Nos essais de production ont montré qu’un diamètre extérieur de sertissage vérifié et compris dans la tolérance publiée (généralement ± 0,2 mm) offre une marge de sécurité contre l’éclatement de 4:1 ou plus sur l’ensemble complet. Effectuez une mesure à l’aide d’un pied à coulisse numérique après chaque sertissage.

Matériaux et traitements thermiques

• Acier au carbone (standard) : high-strength cold-headed or hot-forged carbon steel (20# / 35# / 45# grades). The tail and flange are case-hardened with a carburizing and quenching process for fatigue resistance. Reference hardness range is HRC 20-28 on the core with a hardened case.
• Finition de surface : Zingage blanc ou de couleur (jaune) avec passivation. Des revêtements en zinc-nickel et Dacromet sont disponibles en option pour répondre à des exigences plus strictes en matière de test au brouillard salin.
• Acier inoxydable (en option) : 304, 316 or 316L stainless steel for corrosive media and washdown environments.

Valeurs nominales de pression et de température

The connection rating follows the SAE J518 Code 61 reference table below. These are reference values (§) for the fitting connection itself. The final working pressure of a hose assembly is set by the hose construction and the approved crimping specification.

§Reference values per SAE J518 Code 61 (3000 psi series) connection classes. Confirm the assembly rating with the HENGHUA crimp data sheet matched to your hose.

Plage de températures : -40°C to +100°C for the fitting in continuous service. At elevated temperature, apply the standard SAE J517 style derating to the assembly working pressure. Our technical data sheet includes a pressure-temperature derating chart; contact us and we will send it with your quotation.

Essais de pression : HENGHUA est en mesure de fournir des ensembles ayant subi des essais de résistance jusqu'à 100% de la pression de service nominale, avec des certificats d'essai sur demande.

How to Select the Right 45 Degree SAE Flange Fitting 3000 PSI

Selection is a four-step process. First, confirm the port needs a 45 degree outlet. Second, match the hose bore to the dash size. Third, match the flange size to your port. Fourth, confirm the hose construction version (-RW for braided, 87342 series for spiral).

Structure des références

Lisez toute référence HENGHUA en trois segments. Exemple : 87341-16-16RW.

Sélectionner par série de tuyaux

The 87341-RW elbow is designed for braided hydraulic hose. Recommended matching constructions:

• SAE 100 R1AT (one wire braid) – for -08 to -32 sizes
• SAE 100 R2AT (two wire braid) – for -08 to -32 sizes
• EN 853 1SN et 2SN (constructions européennes équivalentes)
• Spiral constructions (EN 856 4SP / 4SH) – use the 87342 series version

Select by Flange Size

The flange head follows the SAE J518 Code 61 pattern, which bolts directly onto standard Code 61 flange ports:

• Petites tailles : 1/2″ and 3/4″ flange (dash -08 to -12)
• Tailles moyennes : 1″ and 1.1/4″ flange (dash -12 to -20)
• Grandes tailles : 1.1/2″ and 2″ flange (dash -20 to -32)

Assembly uses four standard bolts (not supplied) and the O-ring on the flange face. Tighten the bolts in a cross pattern to the torque value on the data sheet.

45 Degree vs Straight vs 90 Degree – Which One Do You Need

Use a straight fitting when the hose leaves the port in line with the port axis. Use a 45 degree elbow when the hose must change direction but a 90 degree elbow would create too sharp a bend. Use a 90 degree elbow when the hose must turn immediately. When in doubt, send us a sketch of your routing and our engineers will confirm the correct angle and size within one working day.

Références croisées

This series replaces equivalent SAE J518 Code 61 45 degree flange fittings available in the market. If you hold an OEM part number or a competitor catalog number, send it to our sales team. We confirm the direct replacement within 24 hours, including flange size, dash size and insert depth checks.

Emballage et logistique

Guide de montage : quatre étapes pour un montage sûr du tuyau

Follow this process for every crimped assembly. It applies to every 45 degree SAE flange fitting 3000 psi size from dash -08 to -32. Skipping one step is the most common cause of early fitting failure.

Étape 1 – Coupez le tuyau à angle droit. Utilisez un coupe-tuyau bien affûté. Une coupe à bords droits permet au raccord de s'emboîter uniformément dans le tuyau. Une coupe biseautée ou irrégulière laisse des espaces vides qui peuvent devenir des points de fuite.

Étape 2 – Marquez la profondeur d'insertion. Mesurez la profondeur d'insertion indiquée dans la fiche technique de sertissage HENGHUA. Tracez une ligne sur la gaine du tuyau à cette distance. Le repère doit rester visible après l'insertion.

Étape 3 – Lubrifiez et insérez. Appliquez une fine couche de lubrifiant de montage compatible à l'intérieur du tuyau et sur l'extrémité cannelée du raccord. Enfoncez le raccord en effectuant un mouvement de rotation jusqu'à ce que le repère de profondeur s'aligne avec l'extrémité du raccord. Arrêtez-vous au niveau du repère. Ne forcez pas au-delà.

Étape 4 – Sertir et vérifier. Choisissez le jeu de matrices adapté à la taille de votre flexible et de votre raccord. Effectuez le sertissage d’un seul mouvement continu. Une fois le sertissage terminé, mesurez le diamètre extérieur (DE) du sertissage à l’aide d’un pied à coulisse numérique et comparez-le à la tolérance indiquée sur la fiche technique du sertissage. Notez la valeur dans votre registre de qualité. Un diamètre extérieur de sertissage correct fait toute la différence entre un assemblage qui durera 10 ans et une défaillance sur le terrain.

Consignes de sécurité – À lire avant de procéder au sertissage

• Ne mélangez jamais les marques. Les flexibles et les raccords de différents fabricants peuvent présenter les mêmes dimensions, mais utiliser des paramètres de sertissage différents. Veillez à toujours utiliser un ensemble flexible, raccord et fiche technique de sertissage compatibles.
• Never seal the flange face with tape. The O-ring in the flange groove carries the seal. Thread sealant tape or paste on the flange face destroys the seal.
• Vérifiez le joint torique avant le montage. A cut, pinched or hardened O-ring must be replaced. Never assemble the flange without it.
• Do not mix Code 61 and Code 62 flanges. Code 62 (6000 psi) flanges look similar but have different dimensions. This series is Code 61 (3000 psi); never bolt it onto a Code 62 port.
• Tighten bolts in a cross pattern. Tighten the four bolts alternately to the torque value on the data sheet to keep the O-ring evenly compressed.
• Never reuse a crimped fitting. Once crimped, the ferrule zone is work-hardened. A re-crimp cannot restore the original grip.

OEM Customization and Quality Traceability

HENGHUA supplies not only standard sizes but also fully customized 45 degree SAE flange fitting solutions for OEM programs.

Customization Services

• Flange and angle customization. Special flange patterns, custom bend angles, and custom tail lengths for your hose construction.
• O-ring elastomer selection. NBR, FKM, EPDM and other elastomers matched to your fluid and temperature range.
• Surface treatment customization. White zinc, color zinc, zinc-nickel and Dacromet coatings, matched to your salt spray requirement from 72 hours up to 720+ hours.
• Laser marking. Your logo, part number and batch code laser-marked on the flange for full traceability.
• Packaging customization. Private-label boxes, barcode labels and mixed-size kits per your BOM.

Quality Traceability

Every HENGHUA batch carries a traceable batch number. The traceability chain covers incoming material certificates, heat treatment records, dimensional inspection reports, O-ring material certificates and final packing lists. Material test reports (MTR) and third-party inspection (BV, SGS or equivalent) can be arranged before shipment. Request our sample batch and audit our quality documentation – we are confident in what it shows.

Frequently Asked Questions

What is a 45 degree SAE flange fitting 3000 psi?

It is a one-piece elbow hydraulic hose fitting with an SAE J518 Code 61 four-bolt flange head and an O-ring groove on the flange face. The 45 degree outlet redirects the hose at a shallow angle to the flange port. The system follows ISO 6162 and ISO 12151-3.

What is the difference between Code 61 and Code 62 flanges?

Code 61 is the 3000 psi series; Code 62 is the 6000 psi series with larger dimensions for the same nominal size. This fitting is Code 61. Never bolt a Code 61 flange onto a Code 62 port.

How does the flange seal?

The O-ring in the flange face groove is compressed between the two flange faces when the four bolts are tightened. The O-ring, not the metal faces, carries the seal.

Which hose works with the 87341-RW fitting?

The 87341-RW version is designed for braided hydraulic hose such as SAE 100 R1AT, R2AT and EN 853 1SN / 2SN. For spiral-wound hose, use the 87342 series.

Do you supply stainless steel versions?

Yes. 304, 316 and 316L stainless steel versions are available for the full size range, with the same dimensions and crimp behavior.

What is the minimum order quantity?

Stock sizes start from 100 pcs. Customized versions start from 500 pcs per size. OEM annual contracts can be discussed directly with our factory team.

Get a Quote for Your 45 Degree SAE Flange Fitting 3000 PSI

Tell us your hose model, flange size, bend angle and annual volume. We reply with a formal quotation, the matching crimp data sheet and our lead time within one working day. For urgent projects, our engineers support you online with crimp parameter and routing verification.
